Front Blower Power Module C1 - Black 4 Way Connector End View

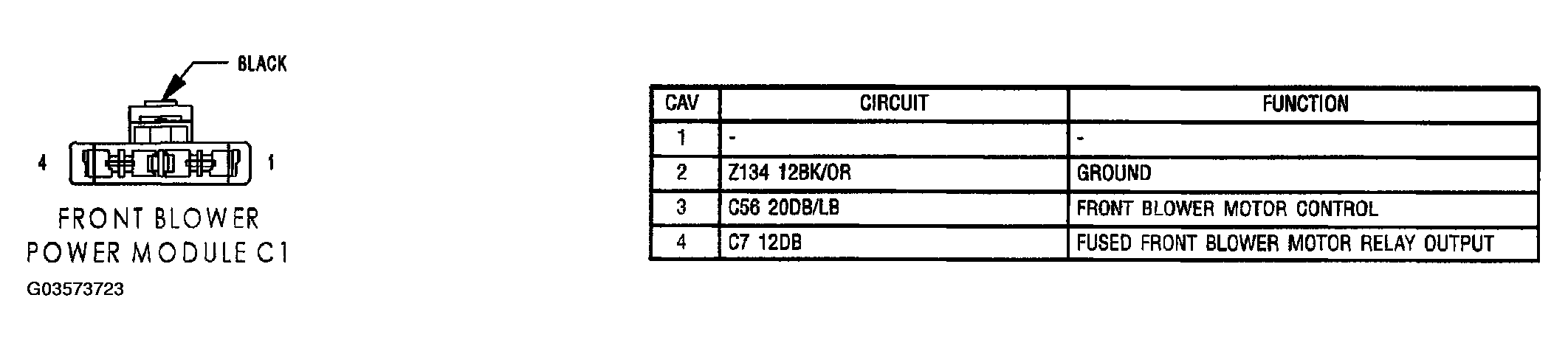

Fig 1: Front Blower Power Module Connector End View (C1)

G03573723

Courtesy of DAIMLERCHRYSLER CORP.
