Door Module-Driver C3 - Black 20 Way Connector End View

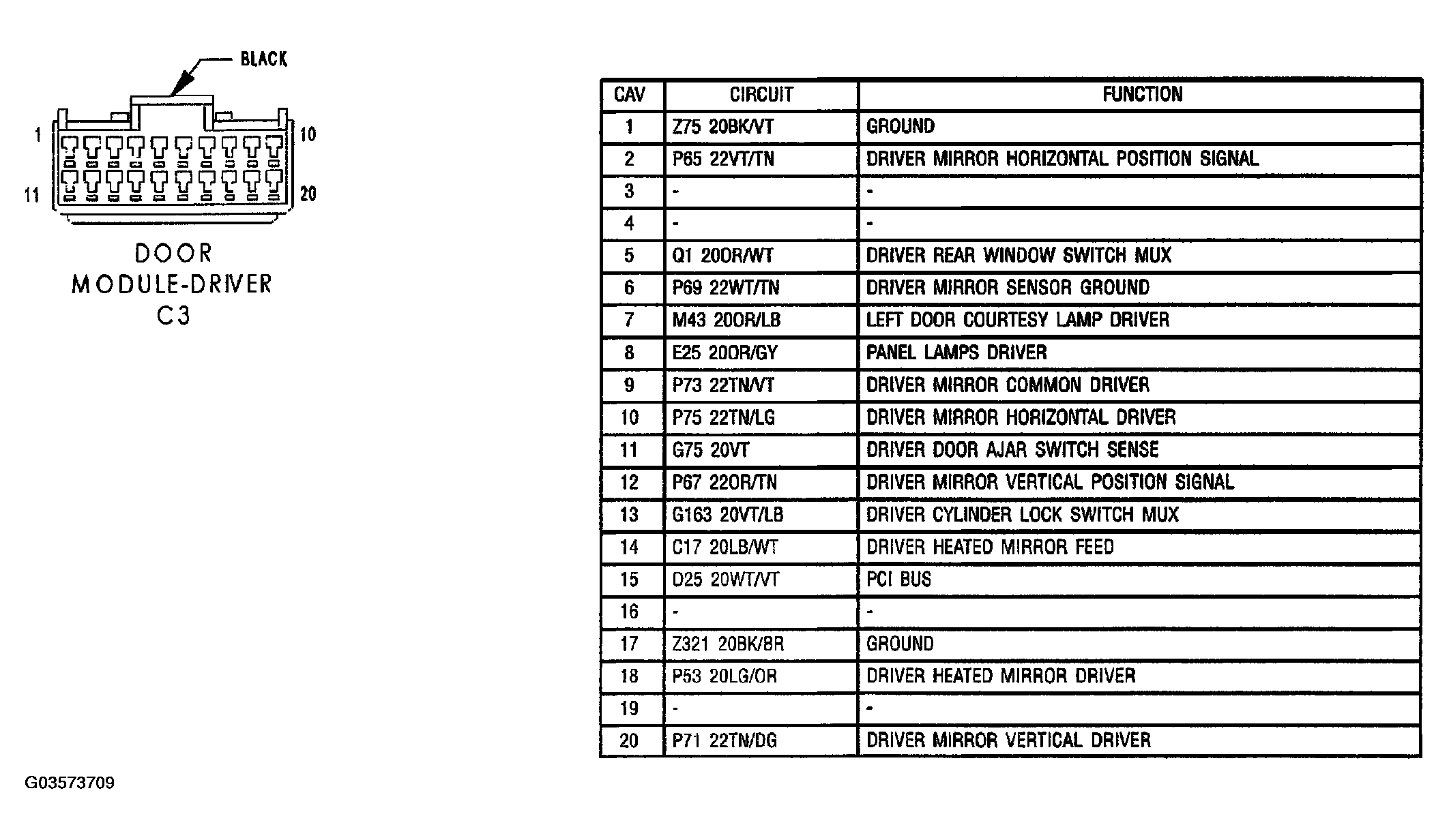

Fig 1: Driver Door Module Connector End View (C3)

G03573709

Courtesy of DAIMLERCHRYSLER CORP.
