Latch Striker: Installation

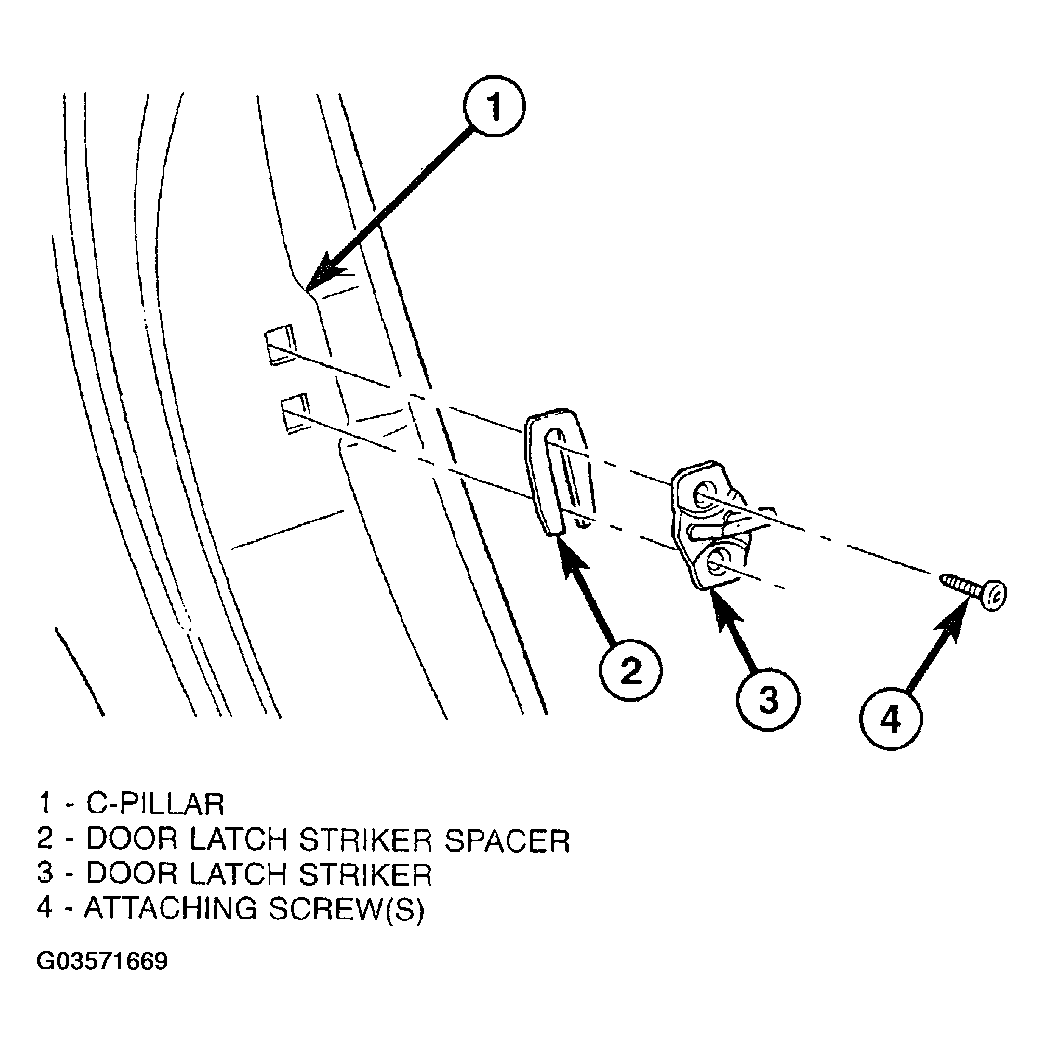

  1. Position latch striker and any shims retrieved on vehicle (Figure).
  2. Loosely install screws attaching latch striker to C-pillar.
  3. Align latch striker to outline on C-pillar made previously.
  4. Tighten fasteners to 26 N.m (19 ft. lbs.) torque.
  5. Verify door fit and operation. Adjust latch striker as necessary.
