Exterior Handle: Installation

  1. Place outside handle assembly into inner door panel.
  2. Install screws attaching outside handle and gasket assembly.
  3. Place outside door handle assembly into door (Fig 1).
  4. Install screw attaching outside door handle cover to outside handle bracket.
  5. Engage clip attaching door lock linkage to outside door handle.
  6. Engage clip attaching door latch linkage to outer door handle.
  7. Check outside handle for proper operation.
  8. Remove the watershield as necessary to gain access to the outside door handle. (Refer to INSTALLATION ).
  9. Remove door trim panel. (Refer to INSTALLATION ).

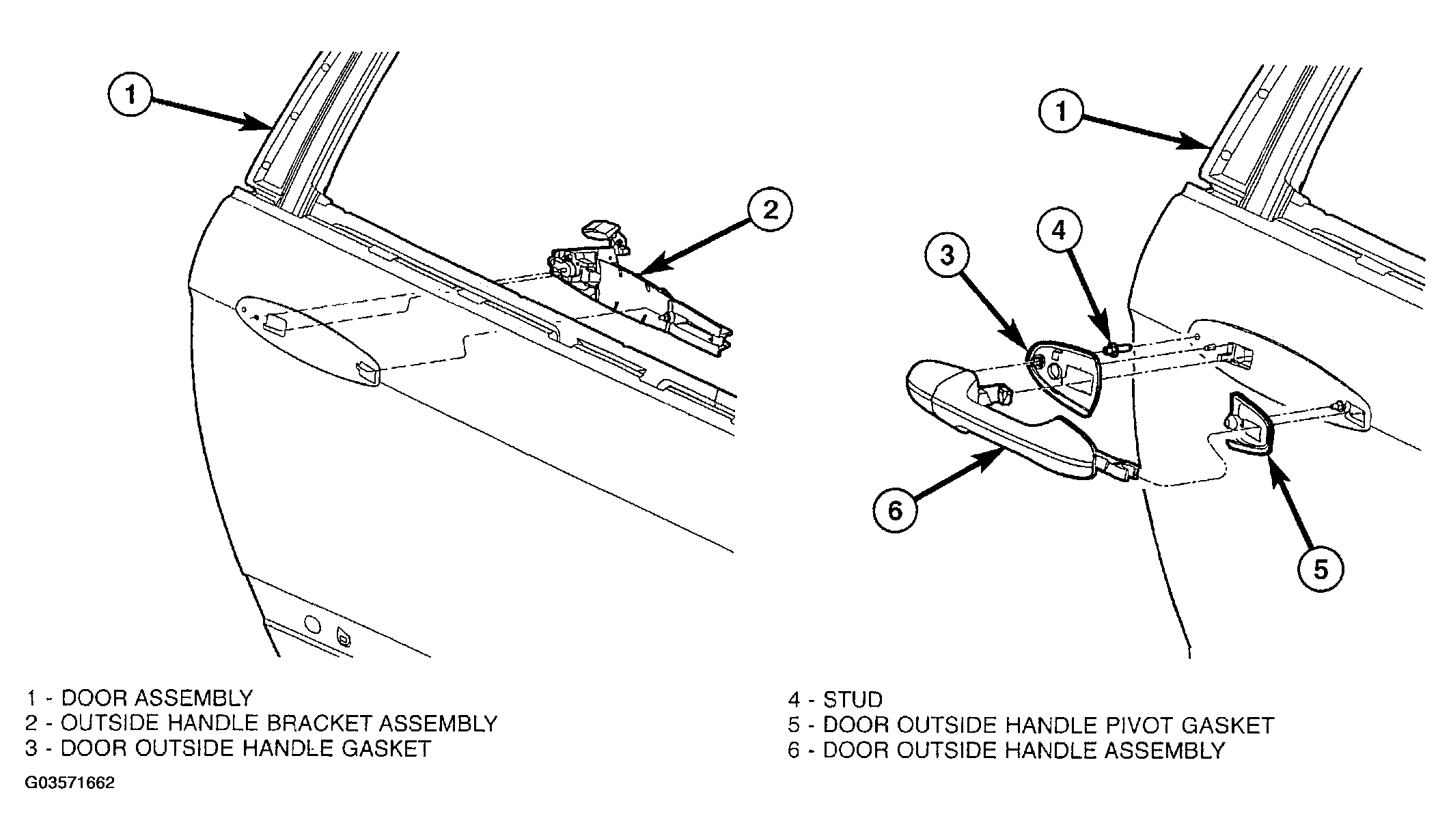

    Fig 1: Identifying Components Of Door Outside Handle Assembly
    G03571662Courtesy of DAIMLERCHRYSLER CORP.
