Door System - Front: Latch: Adjustments: Adjustment

Locate access hole and remove the mylar tape covering it. (Fig 1 )
Insert a 5/32 inch hex-wrench through hole and into adjustment screw. Loosen screw.
Operate outside handle several times to release any restriction because of misalignment.
Tighten adjustment screw to 3 N.m (30 in. lbs.).
Test handle for proper operation.

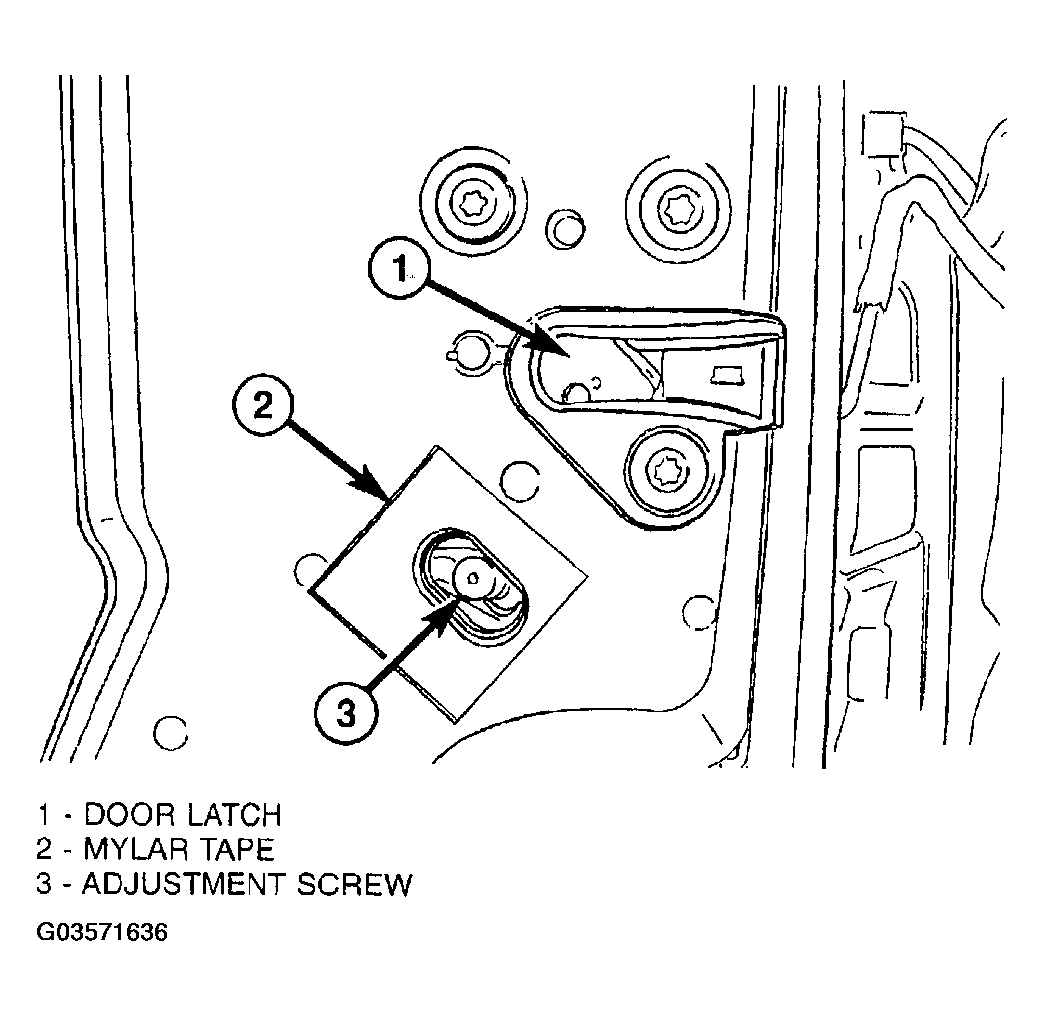

Fig 1: Identifying Latch Adjustment Screw
Courtesy of DAIMLERCHRYSLER CORP.
