Latch Striker: Installation

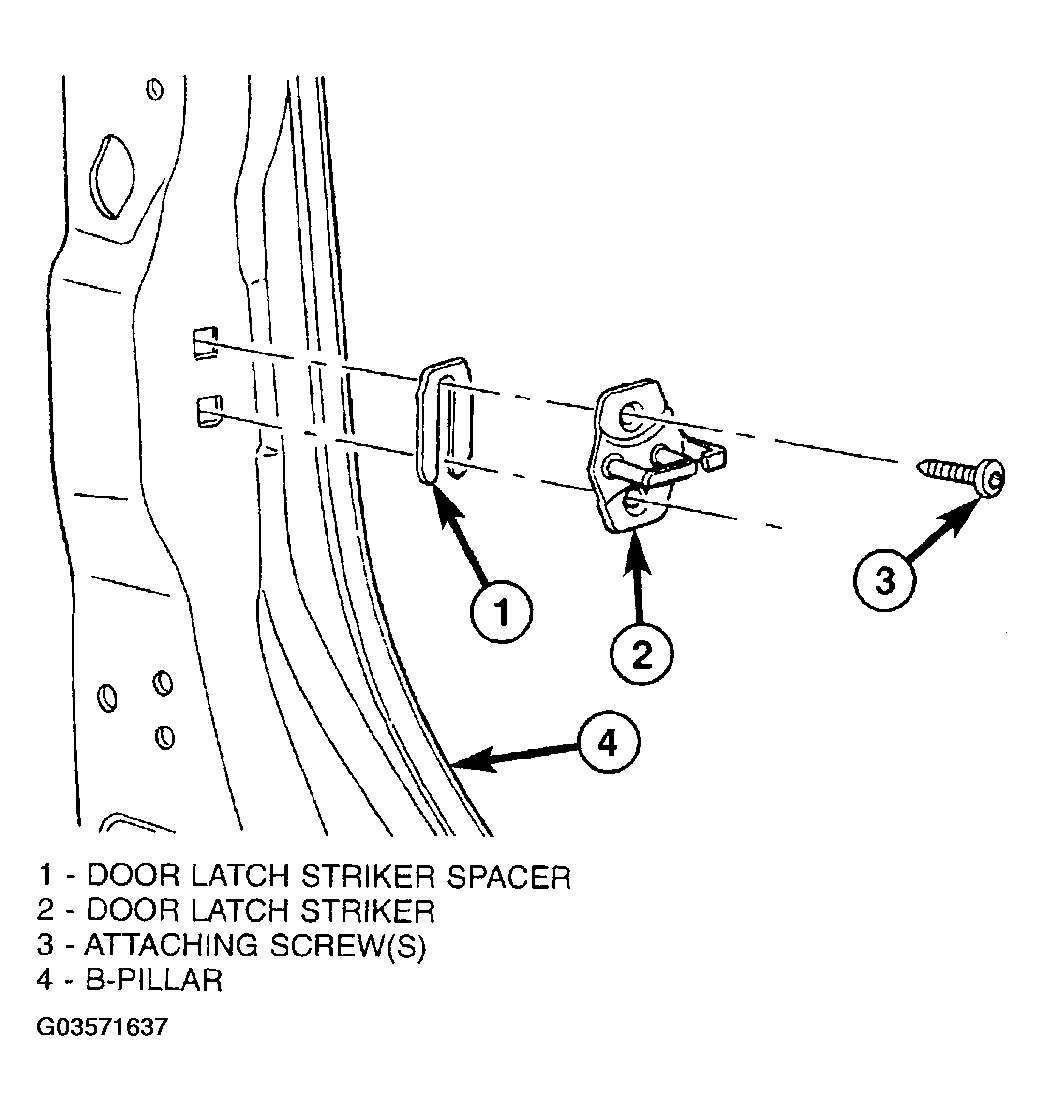

  1. Position latch striker and any shims retrieved on vehicle (Figure ).
  2. Loosely install screws attaching latch striker to B-pillar.
  3. Align latch striker to outline on B-pillar made previously.
  4. Tighten fasteners to 27 N.m (20 ft. lbs.) torque.
  5. Verify door fit and operation. Adjust latch striker as necessary.
