Frame Closeout Molding: Installation
- Lower door window glass.

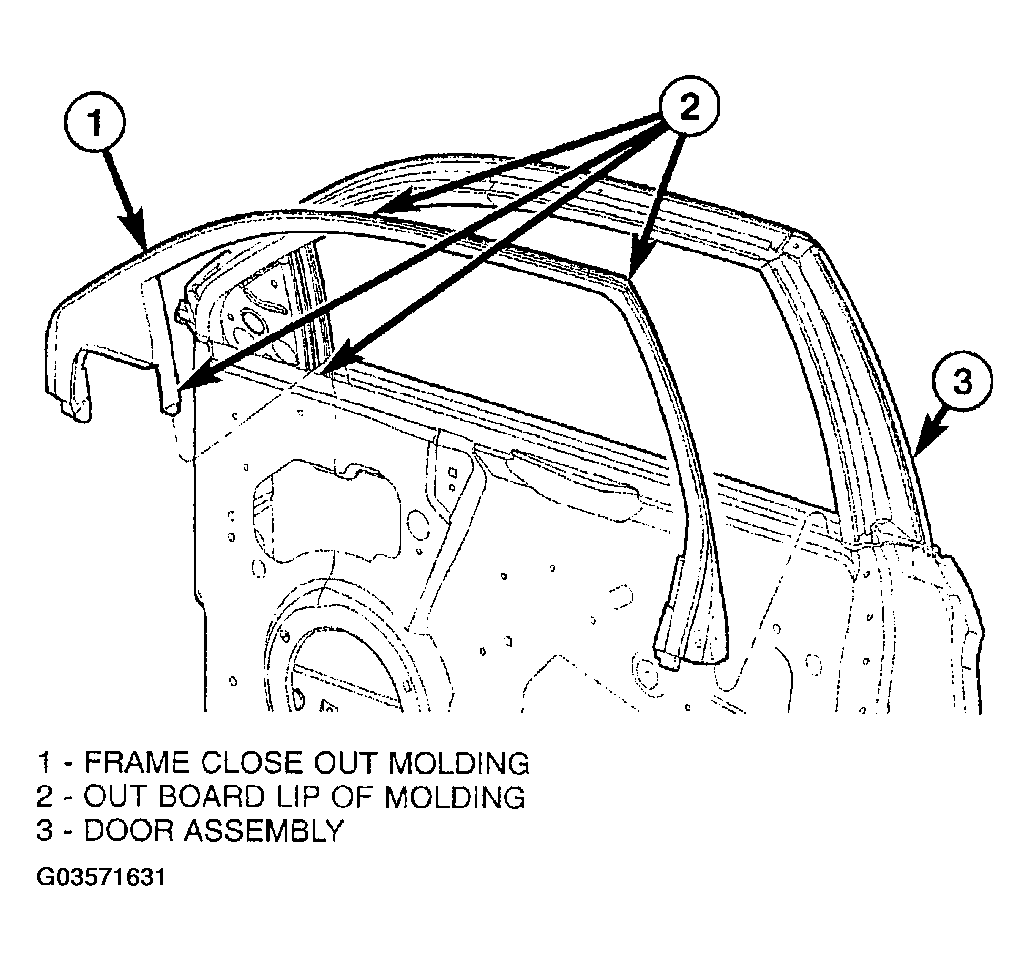

- Place door frame close out molding into position (Fig 1
).
- Starting at B-pillar to corner and work along leader to A-pillar belt line. Snapping molding into place, using hand pressure.
- Finish inserting molding along B-pillar side of door.
- Raise door window glass.
- Install door inner belt molding weatherstrip. Refer to FRONT INNER BELT MOLDING WEATHERSTRIP
).
Courtesy of DAIMLERCHRYSLER CORP.
- Install front door trim panel. (Refer to INSTALLATION
).
