Door System - Front: Door: Removal
- Remove front wheelhouse splash shield. (Refer to FRONT WHEELHOUSE SPLASH SHIELD
).

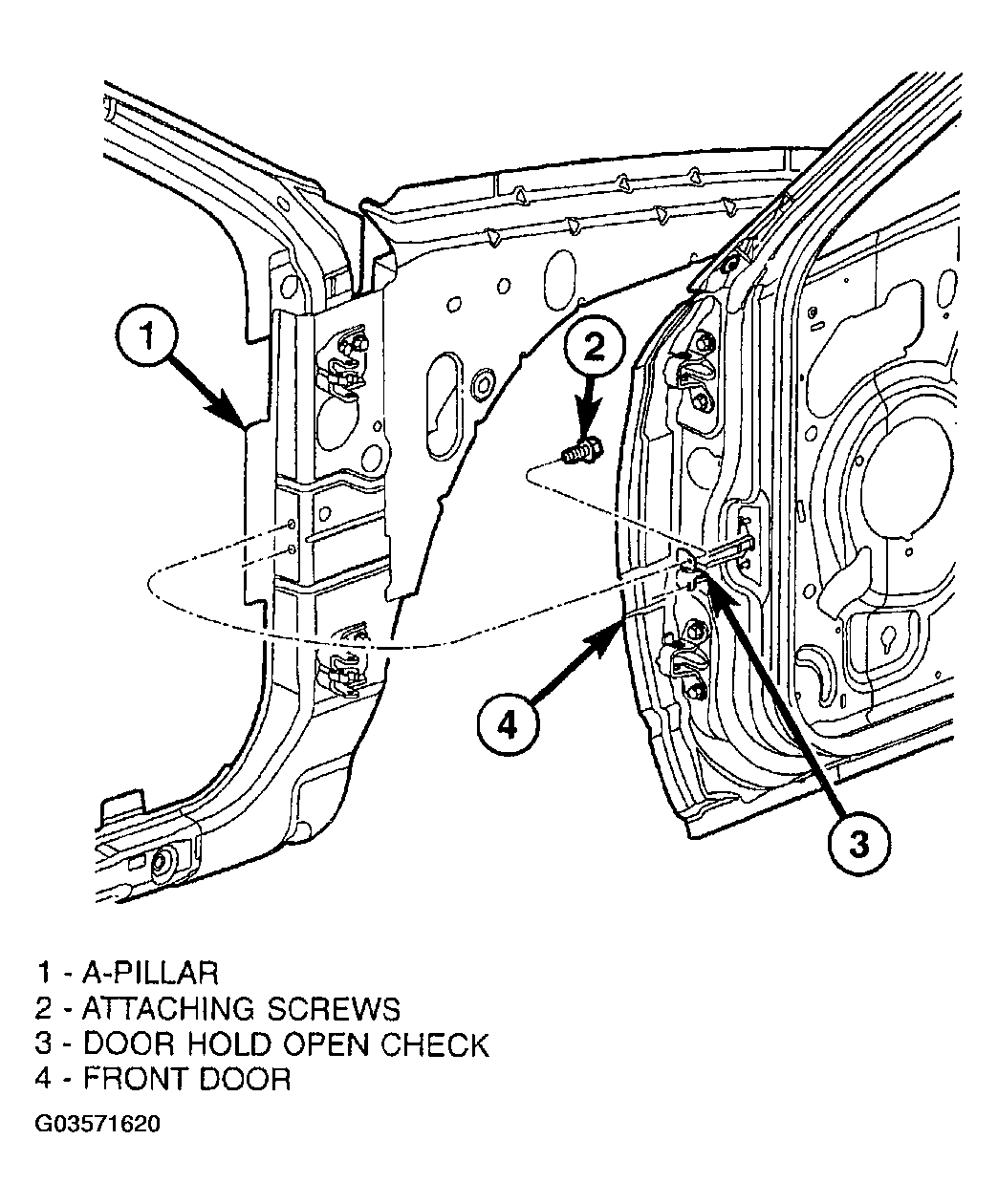

- Remove screws attaching door check strap to A-pillar (Fig 1
).

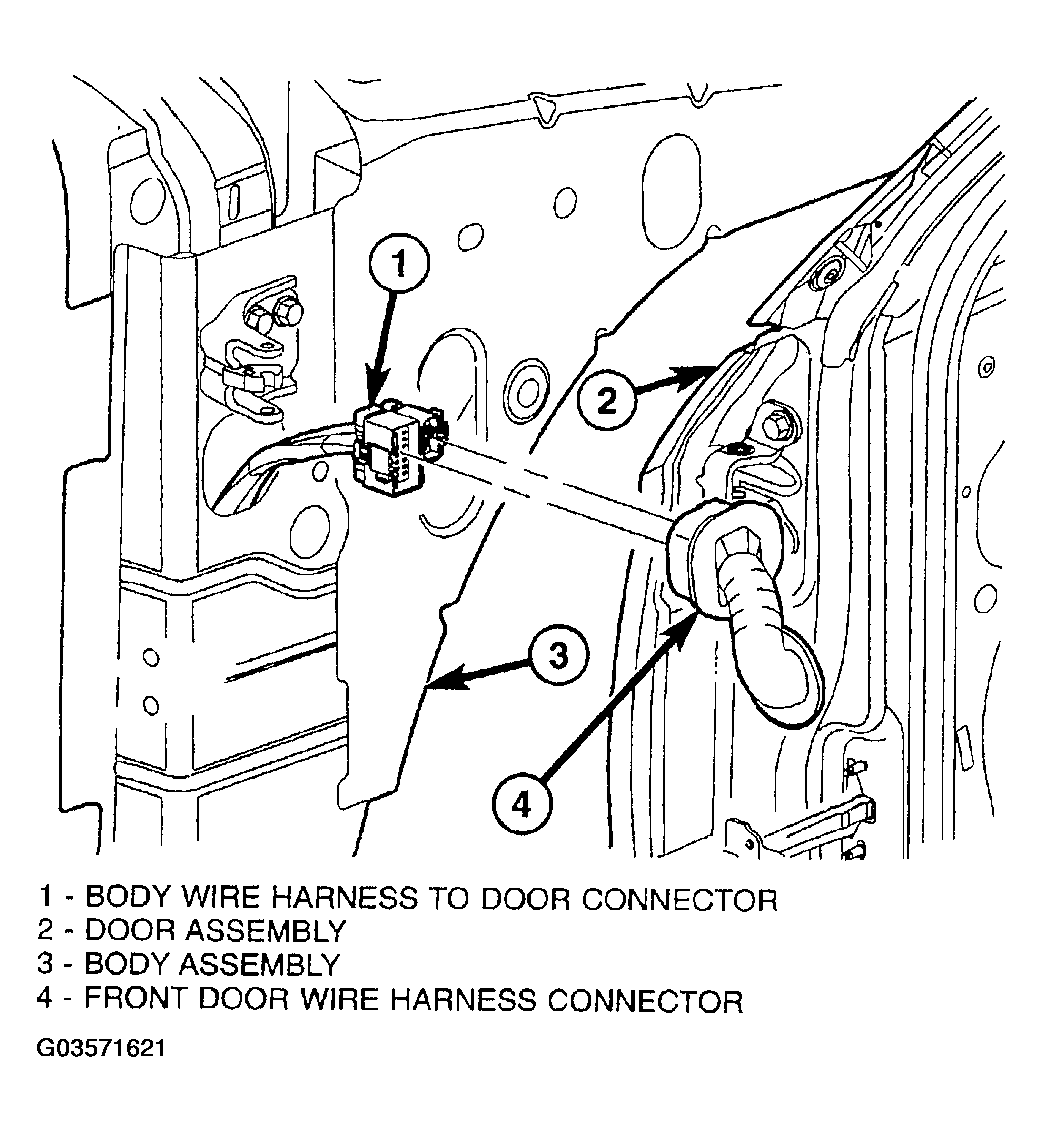

- Disengage clips attaching door harness wire connector to inner fender brace (Figure
).
- Disconnect positive lock slide on the side of the wire connectors.
- Depress lock tab attaching wire connector halves together.
- Disconnect door harness from body wiring harness.
- Support door on suitable lifting device.

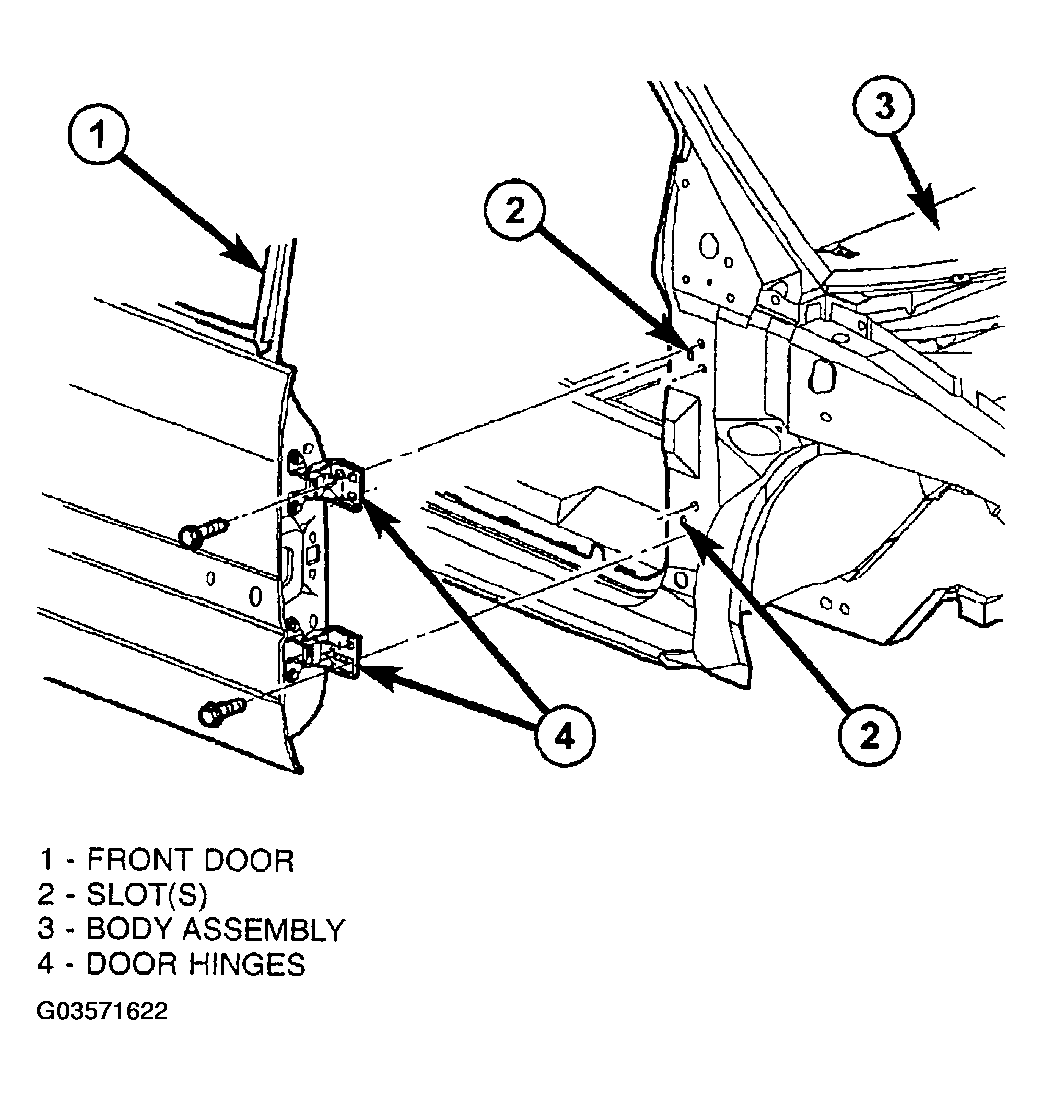

- Remove bolts attaching lower hinge to door end frame (Figure
).
- Steady door on lifting device and remove bolts attaching upper hinge to door end frame.
- Remove door from vehicle.
Courtesy of DAIMLERCHRYSLER CORP.
