Second Row Seat: Installation

  1. Place seat into position in vehicle.

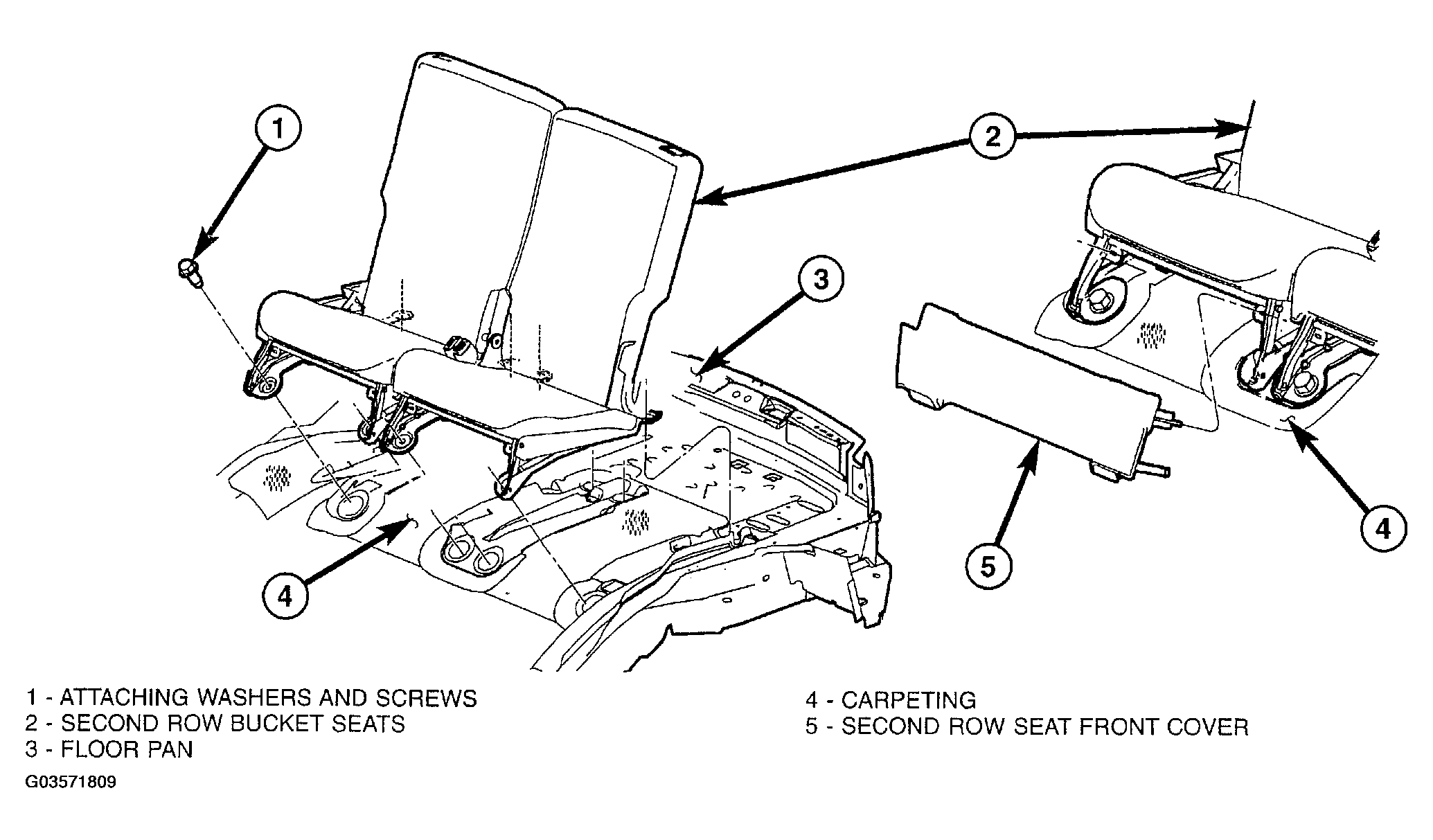

  2. Install second row seat front attaching screws (Figure ).
  3. Install second row seat front covers.

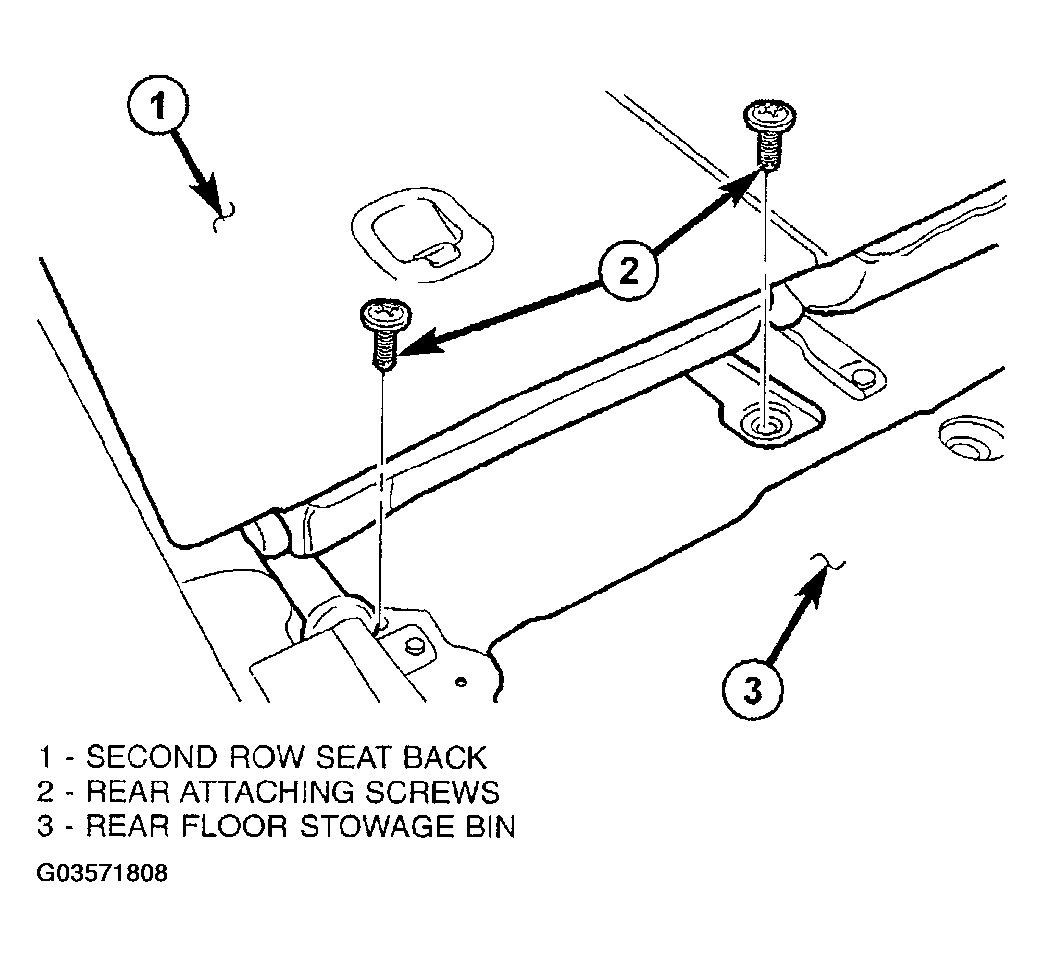

  4. Install second row seat rear attaching screws (Figure ).
  5. Install rear floor stowage bin. (Refer to REAR FLOOR STOWAGE BIN ).
