First Row Seat Riser: Installation

  1. Place seat base into position on first seat assembly.

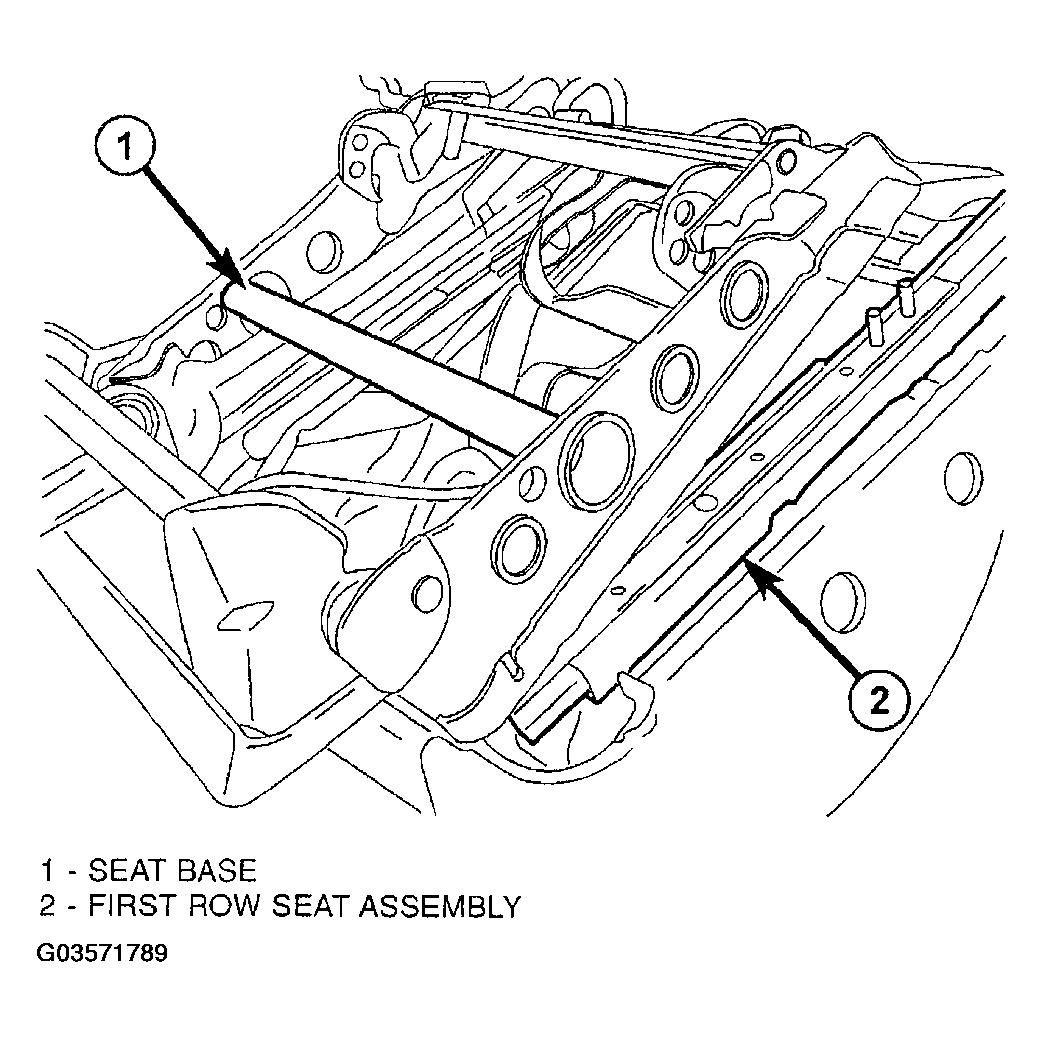

  2. Install four nuts attaching seat base to seat assembly (Figure ).
  3. Place seat into position.
  4. Connect heating element wire harness.
  5. Install first row seat. (Refer to INSTALLATION  ).
  6. Install headrest. (Refer to INSTALLATION  ).
  7. Disconnect and isolate the battery negative cable.
