First Row Seat Back Panel: Removal

  1. Fold first row seat down flat (Fig 1 ).
  2. Using a trim stick C-4755 or equivalent, disengage the seat back panel push pins by pulling away from seat back.

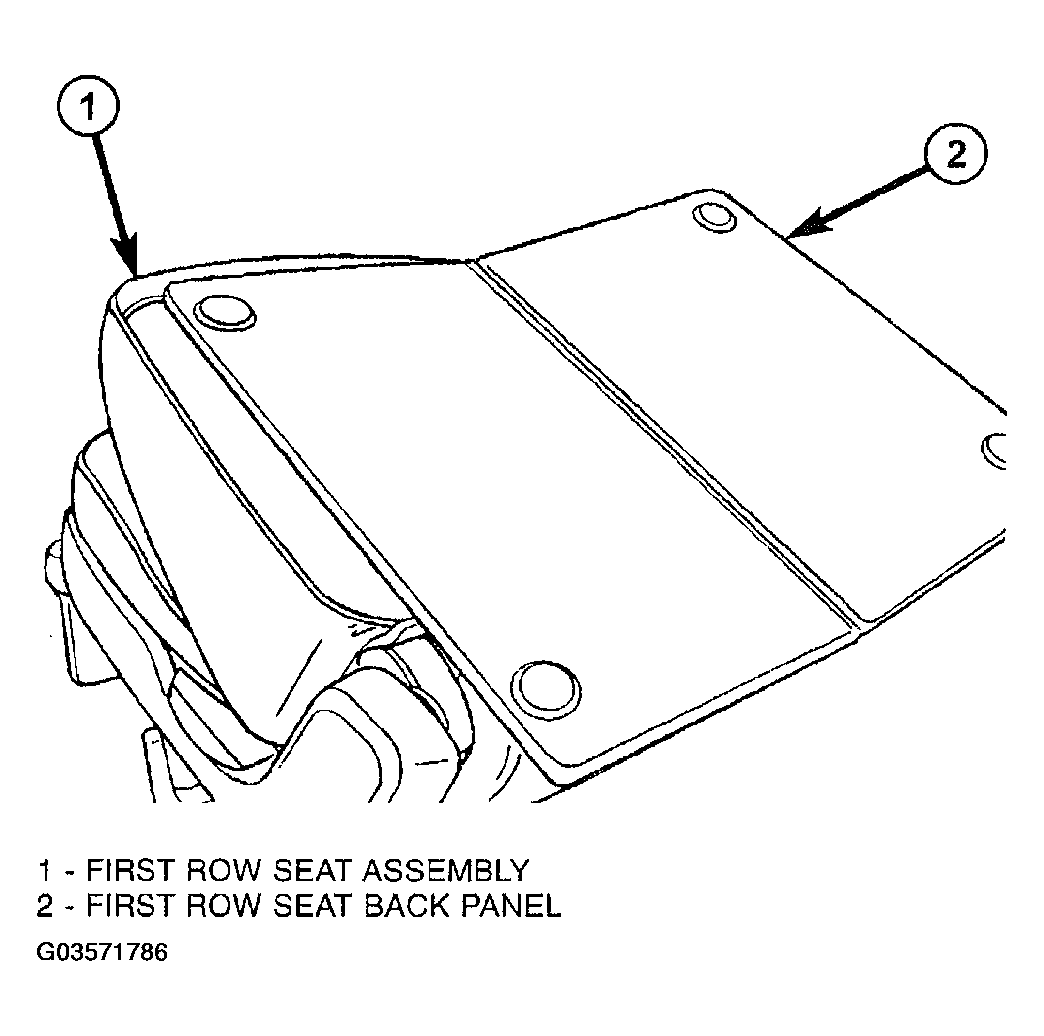

    Fig 1: Removing First Row Seat Back Panel
    G03571786Courtesy of DAIMLERCHRYSLER CORP.
