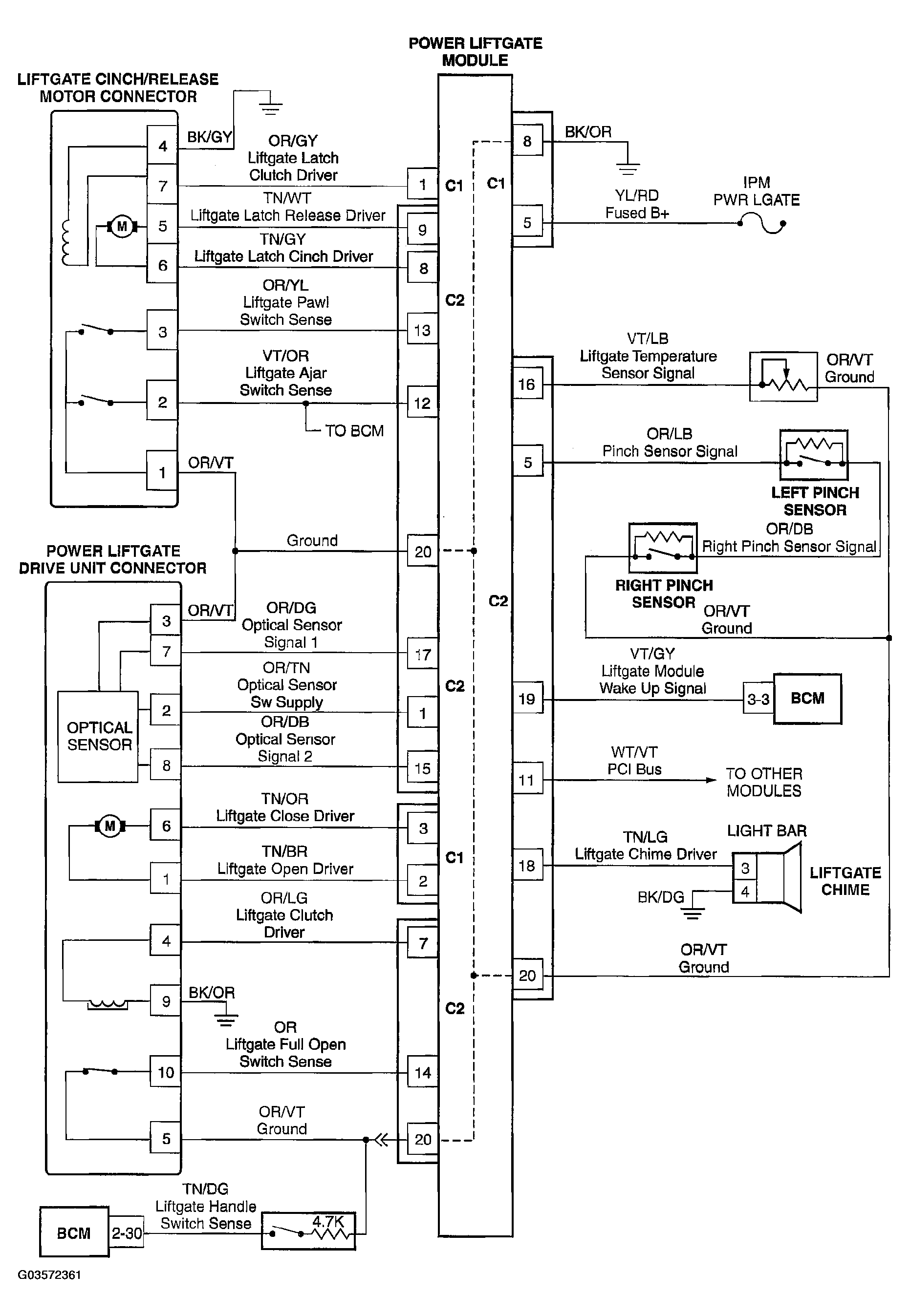

Home >> Chrysler >> 2004 >> Pacifica AWD >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures - Component Locations >> Schematic Diagrams >> Power Liftgate System >> Liftgate
