Automatic Temperature Control System

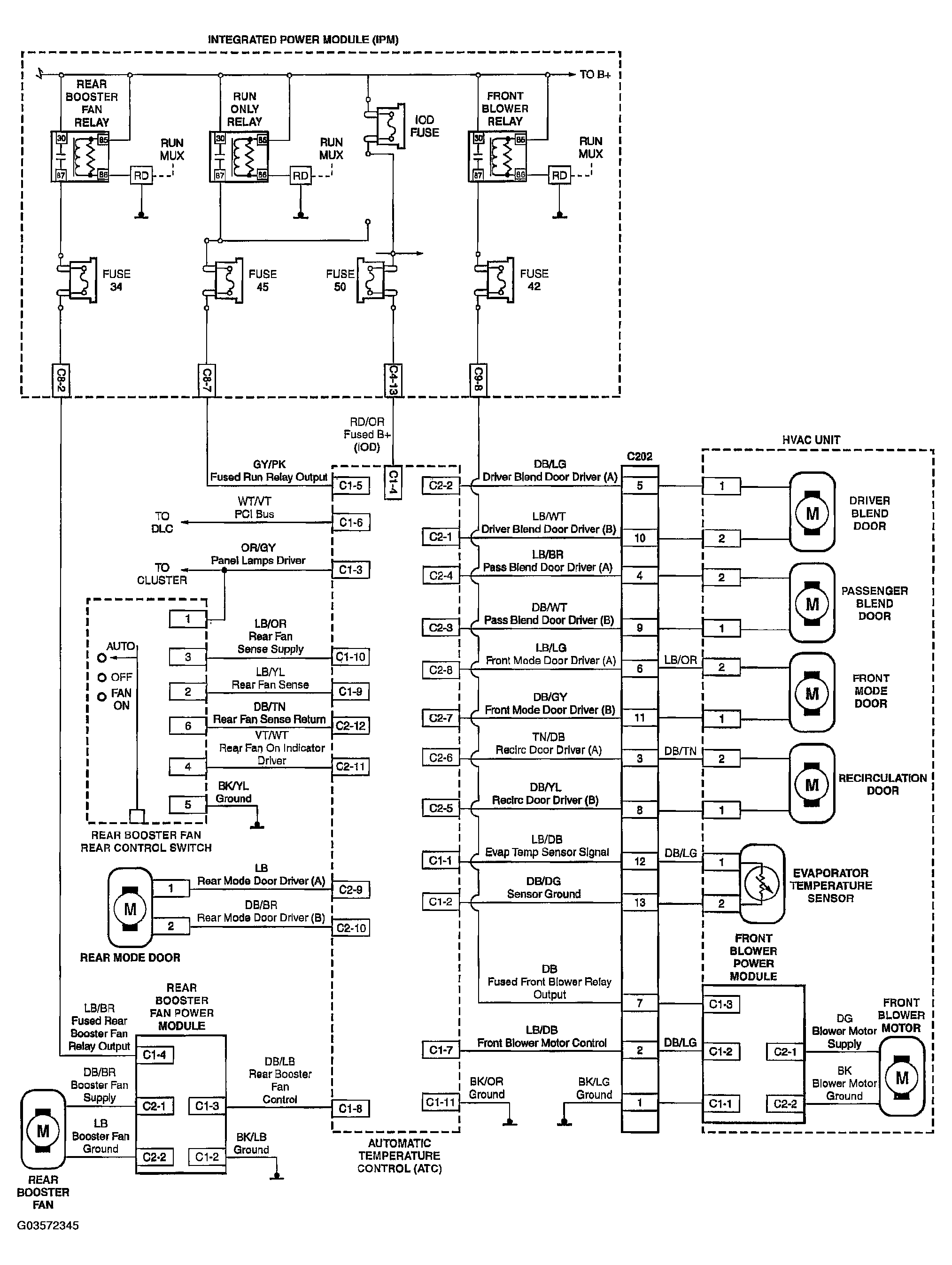

Fig 1: Automatic Temperature Control System - Schematic Diagram

G03572345

Courtesy of DAIMLERCHRYSLER CORP.
