Navigation Module - Black 16 Way Connector End View

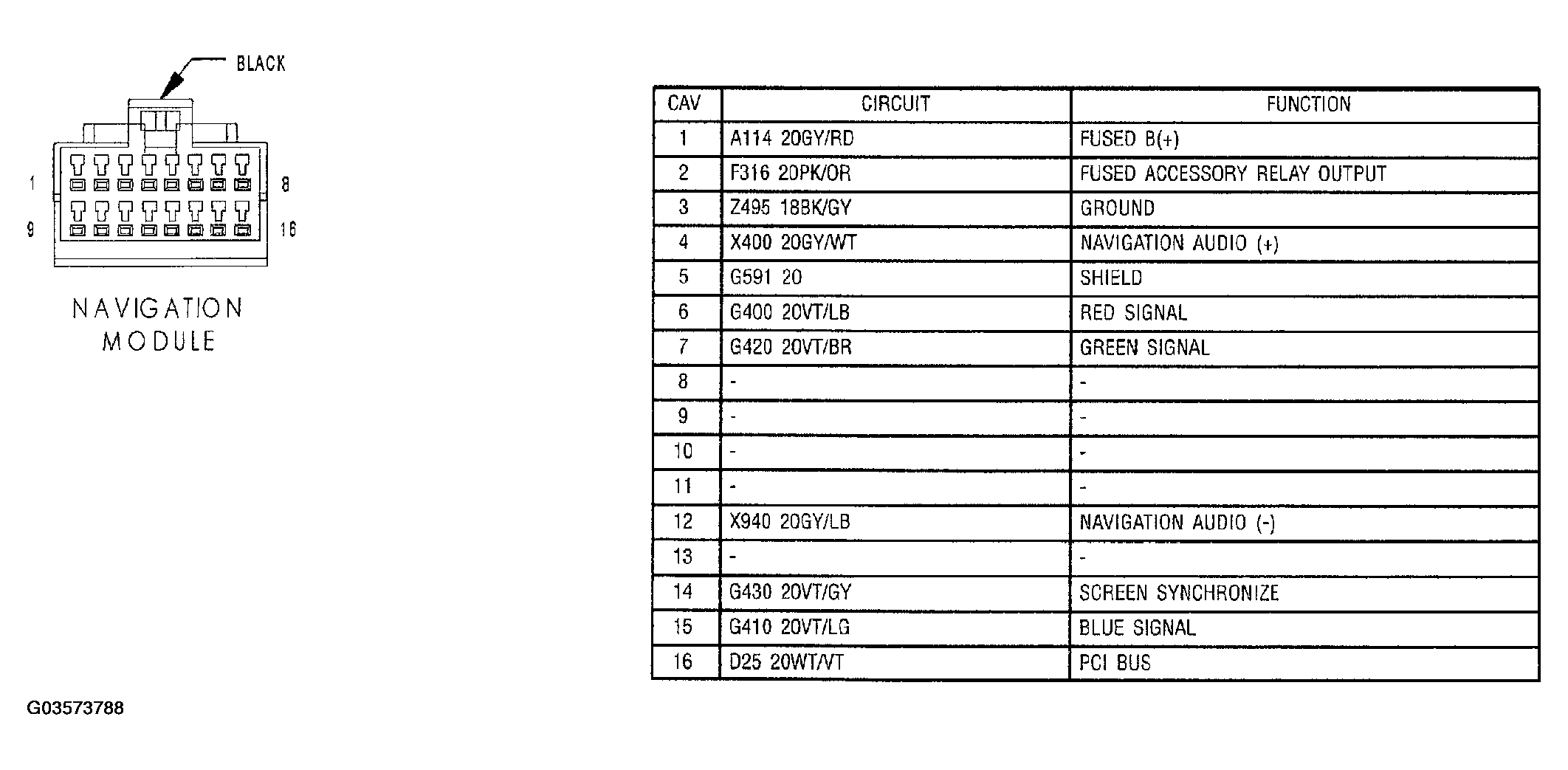

Fig 1: Navigation Module Connector End View

G03573788

Courtesy of DAIMLERCHRYSLER CORP.
