Front Wiper Module: Installation

  1. Place wiper module into position in vehicle.

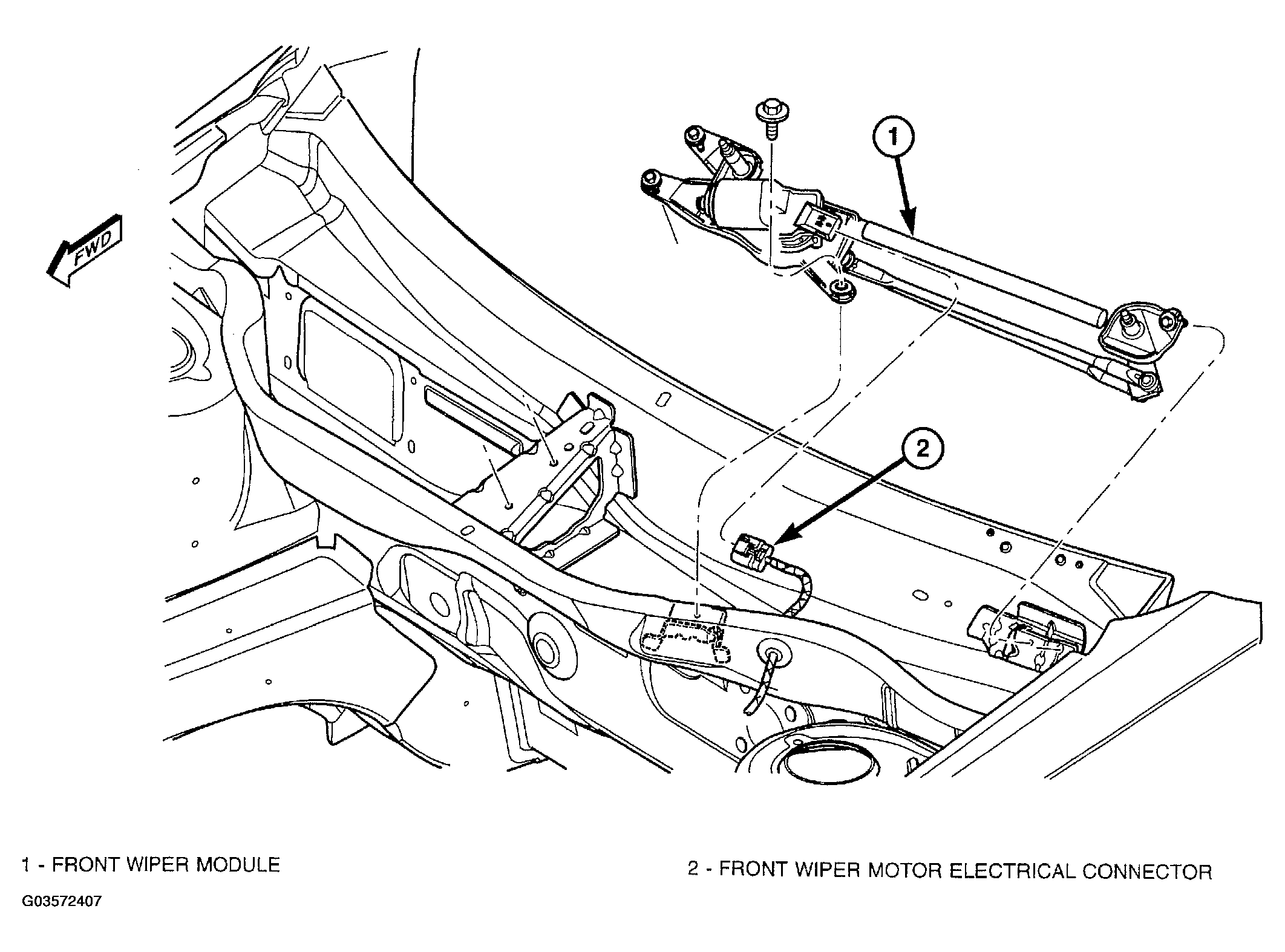

  2. Install the four retaining bolts to the wiper module (Figure).
  3. Connect the wiper motor electrical connector (Figure).
  4. Install the cowl plenum grille (Refer to COWL PLENUM GRILLE ).
  5. Connect the battery negative cable
  6. Verify vehicle and system operation.
