Vehicle Speed Sensor (Diesel) Connector End View

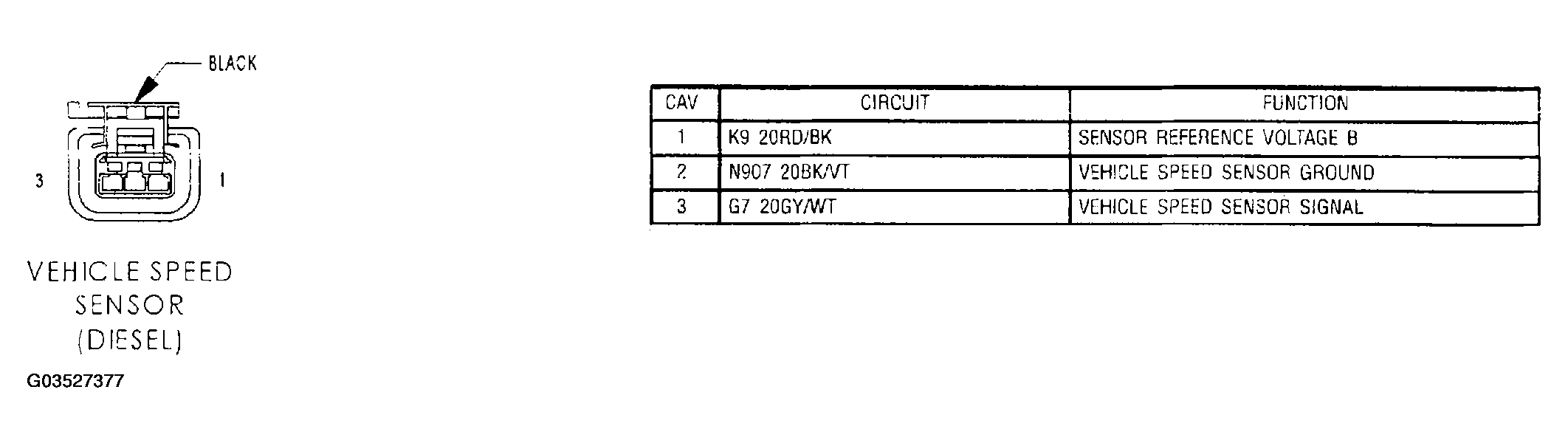

Fig 1: Vehicle Speed Sensor (Diesel) Connector End View

G03527377

Courtesy of DAIMLERCHRYSLER CORP.
