Liftgate Power Lock Motor Connector End View

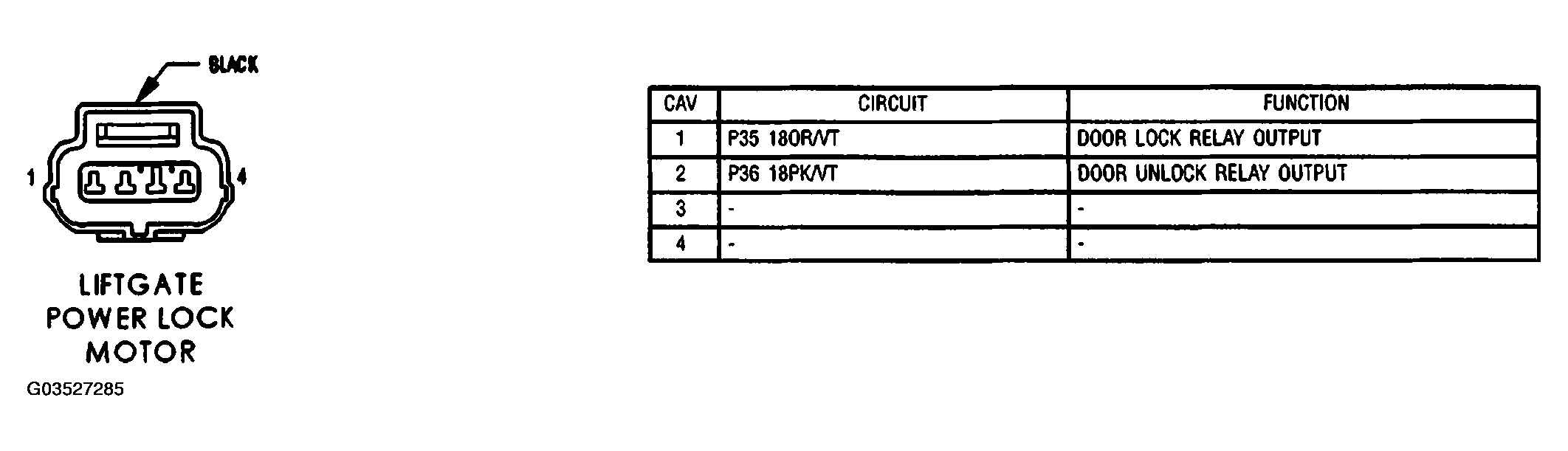

Fig 1: Liftgate Power Lock Motor Connector End View

G03527285

Courtesy of DAIMLERCHRYSLER CORP.
