C106 Connector End View

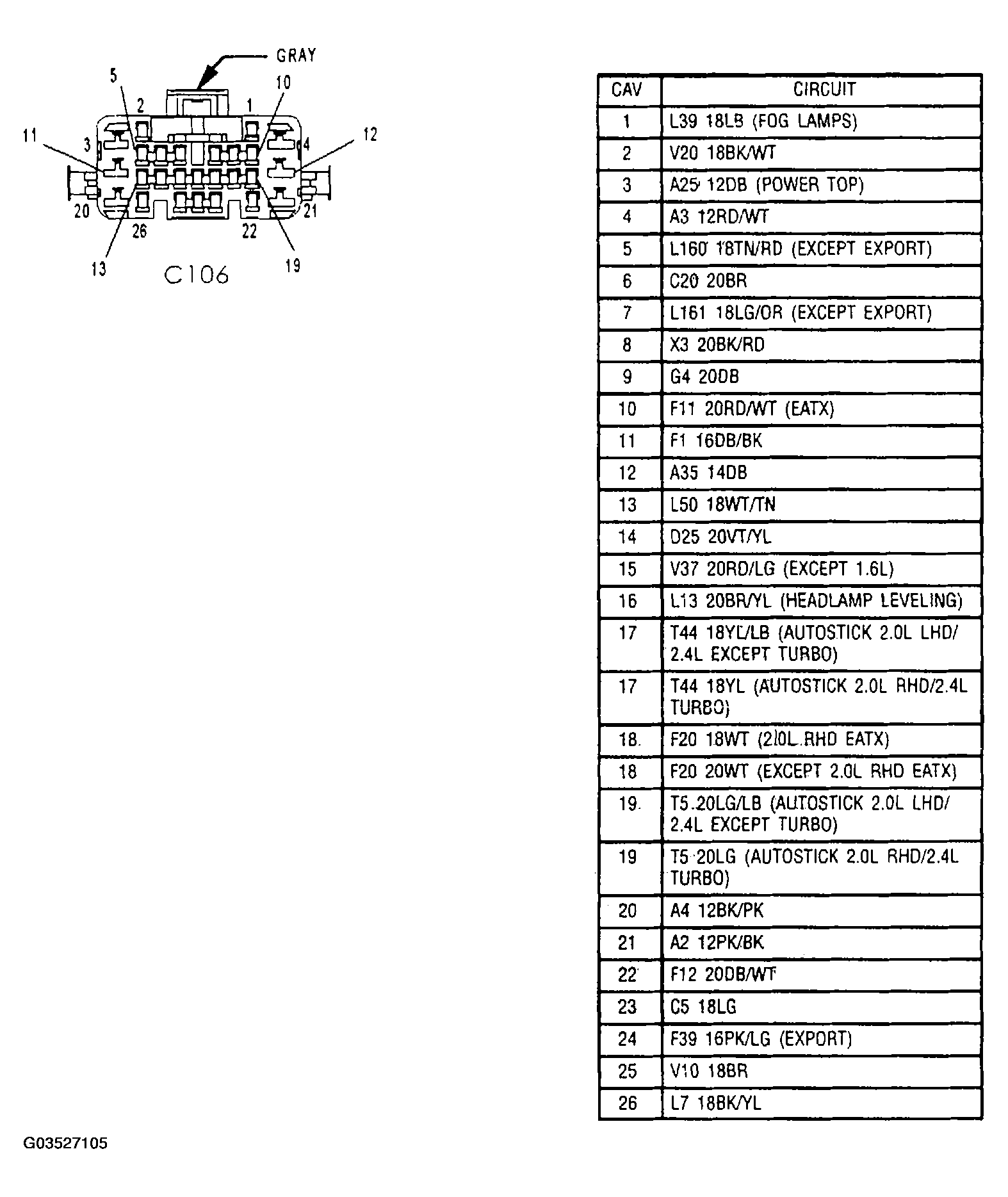

Fig 1: Headlamp & Dash Side Inline Connector End View (C106)
G03527105Courtesy of DAIMLERCHRYSLER CORP.

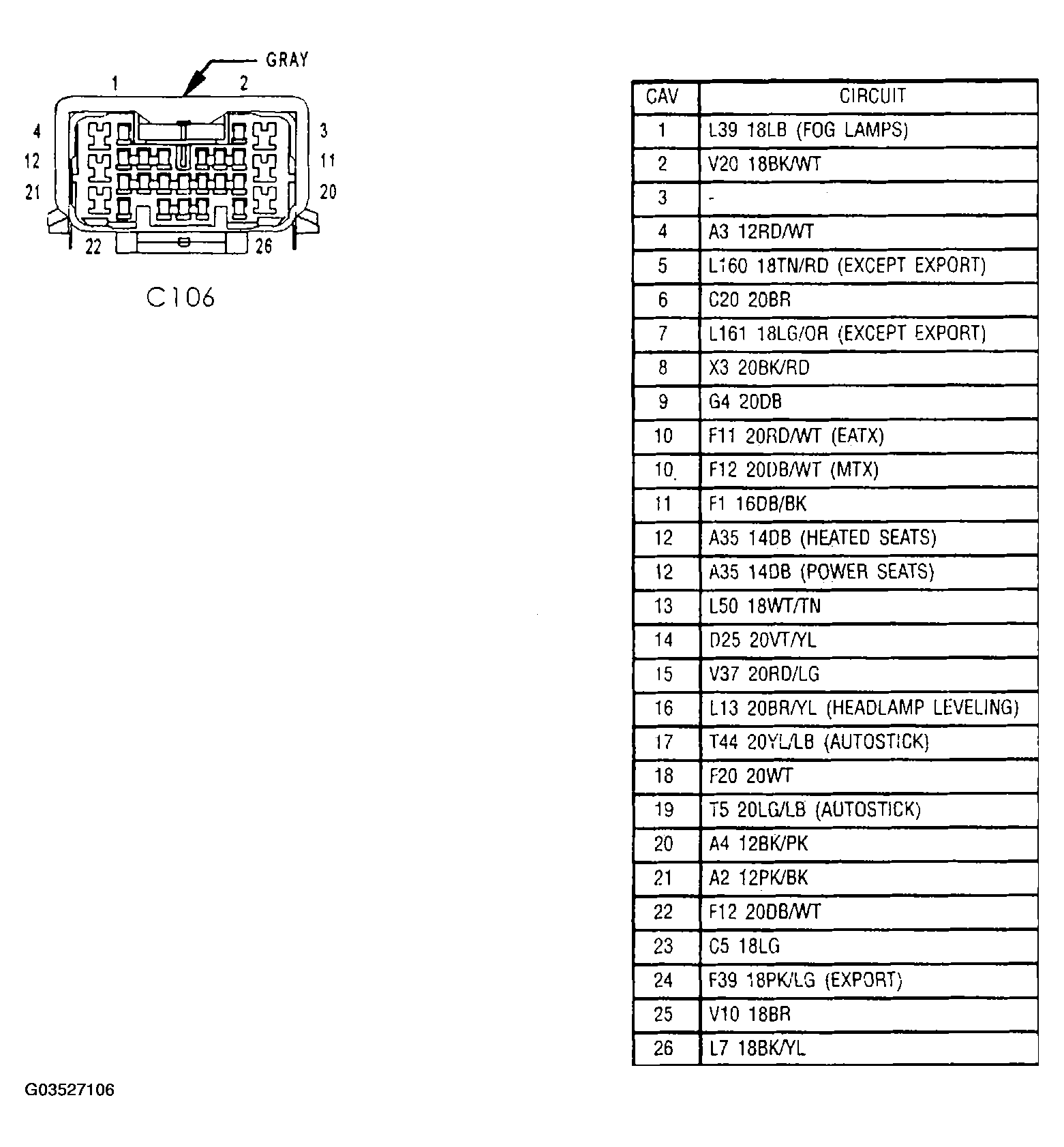

Fig 1: Instrument Panel Side Inline Connector End View (C106)
G03527106Courtesy of DAIMLERCHRYSLER CORP.
