C302 Connector End View

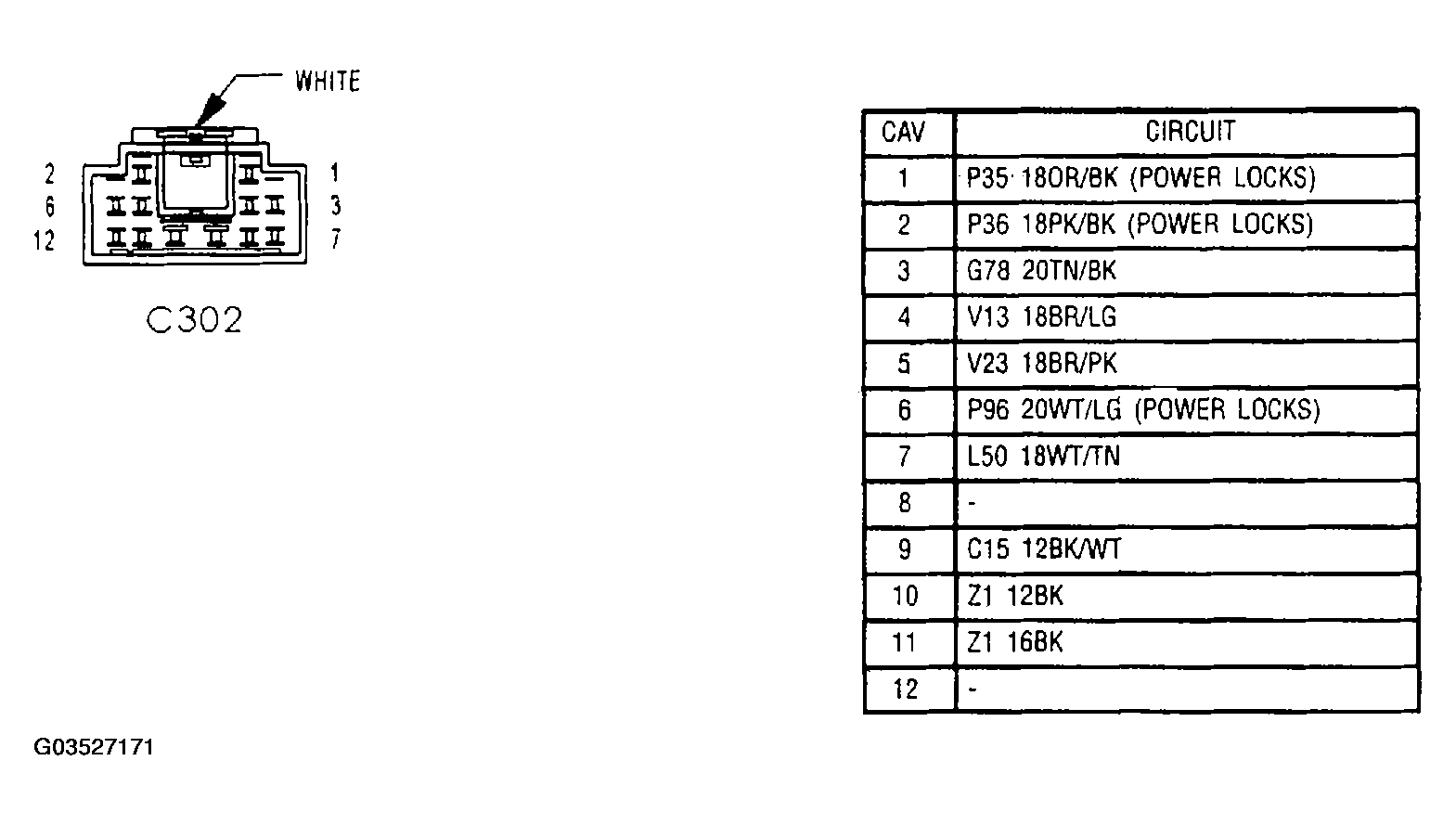

Fig 1: Left Body Side Inline Connector End View (C302)

G03527171

Courtesy of DAIMLERCHRYSLER CORP.

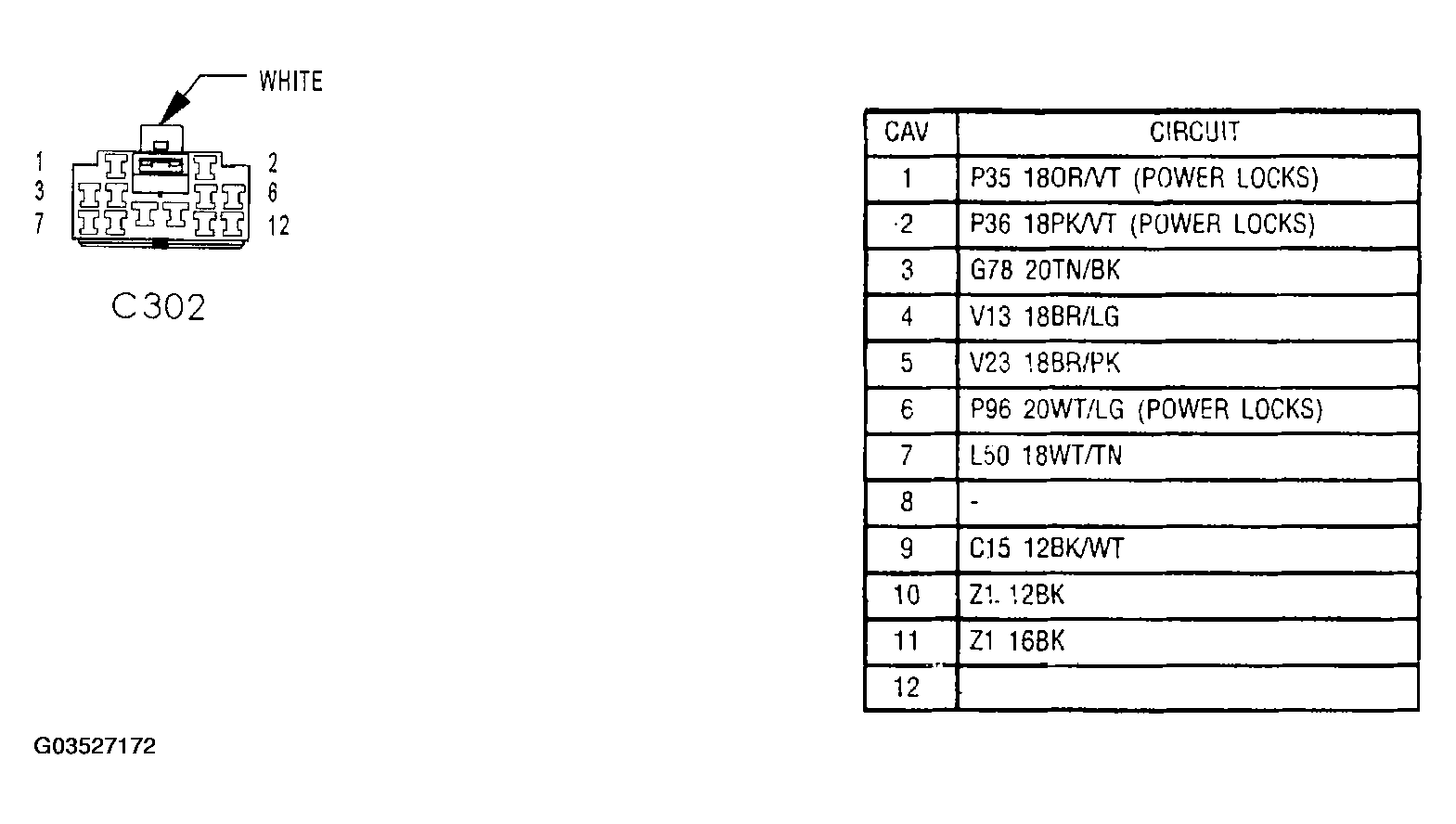

Fig 1: Liftgate Side Inline Connector End View (C302)

G03527172

Courtesy of DAIMLERCHRYSLER CORP.
