Input Speed Sensor: Installation
CAUTION:
When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.
- Verify O-ring is installed into position. See Figure .
- Install and tighten input speed sensor to 20 ft. lbs. (27 N.m).
- Connect speed sensor connector.

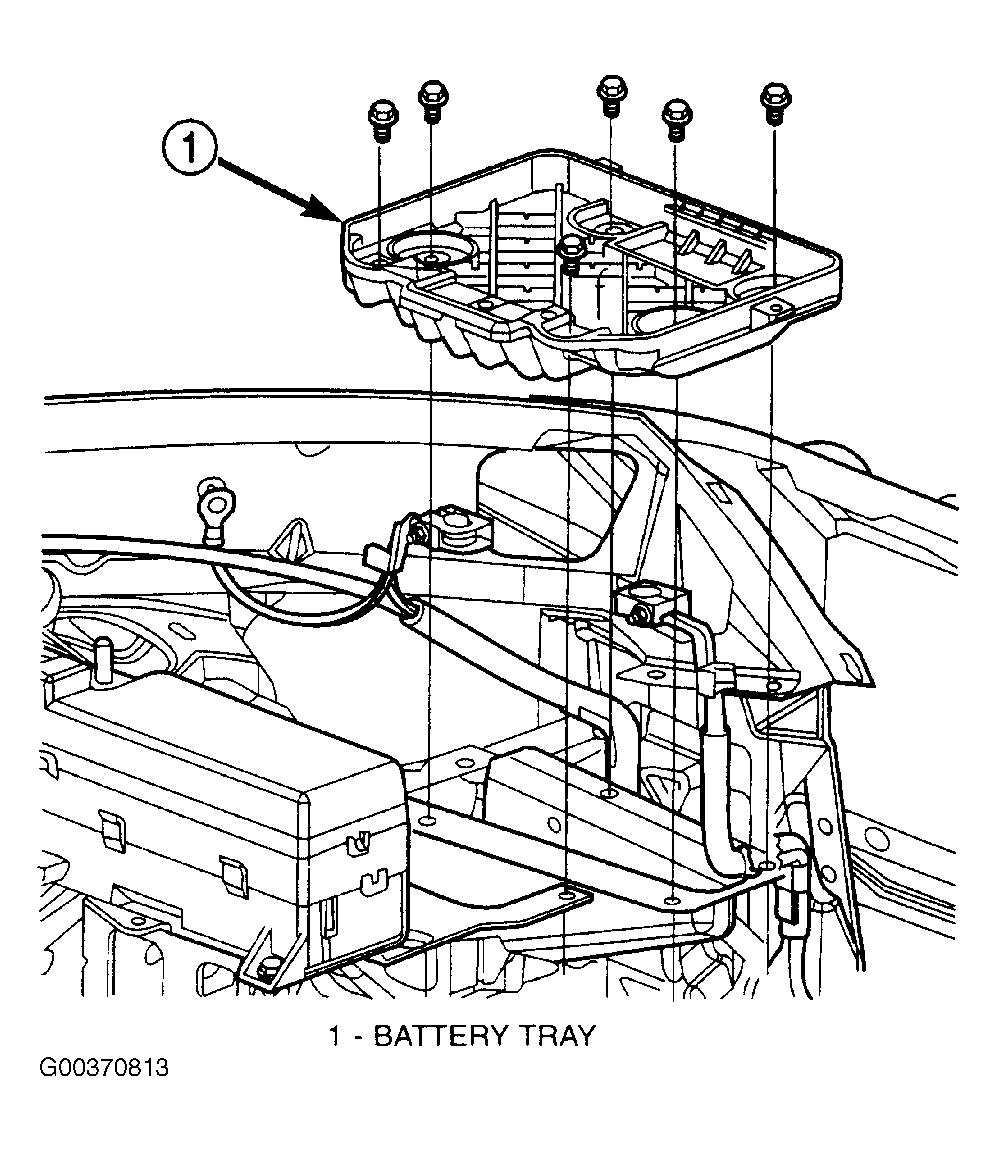

- Install the battery tray. See Figure .

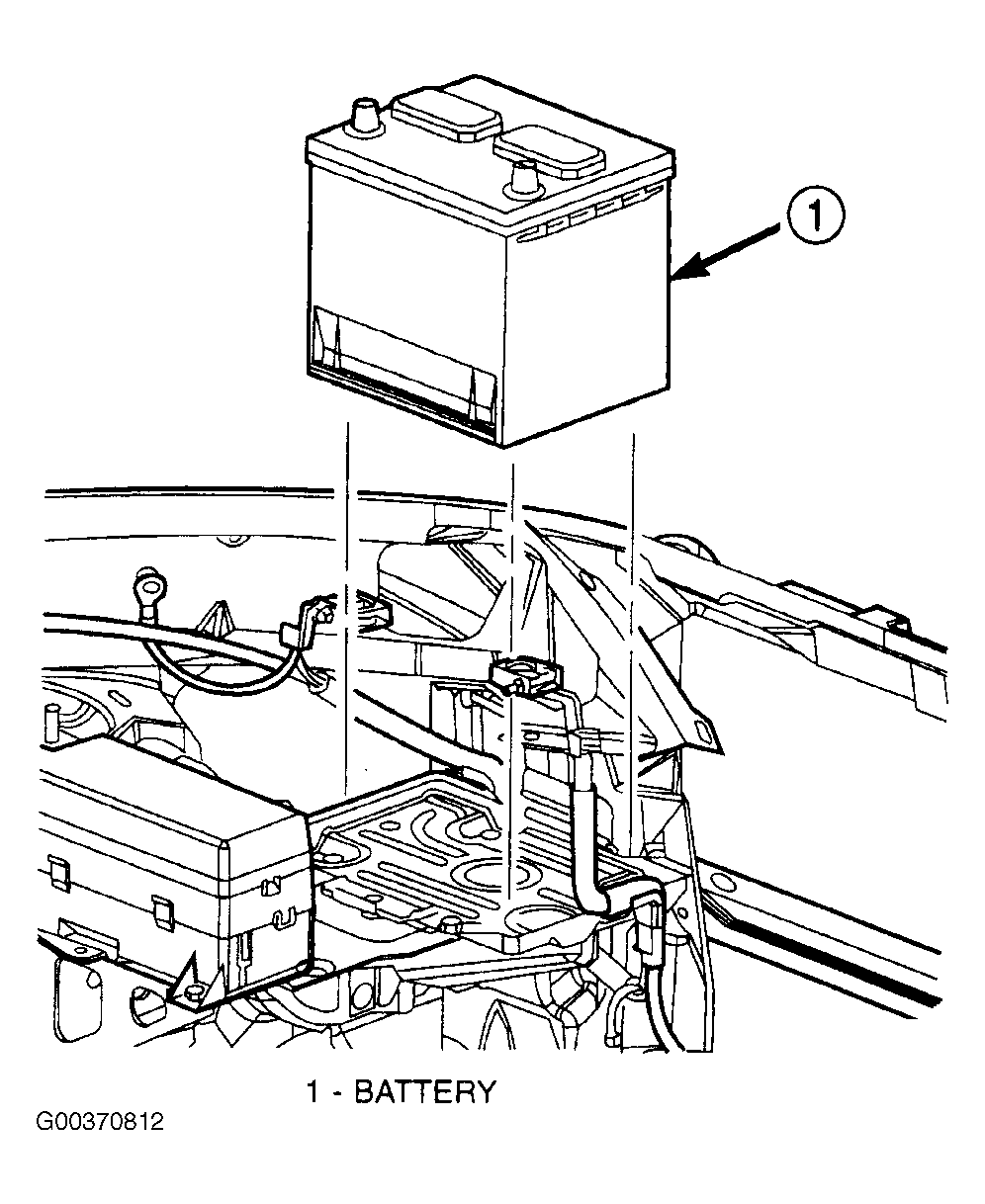

- Install the battery and hold down clamp. See Figure .

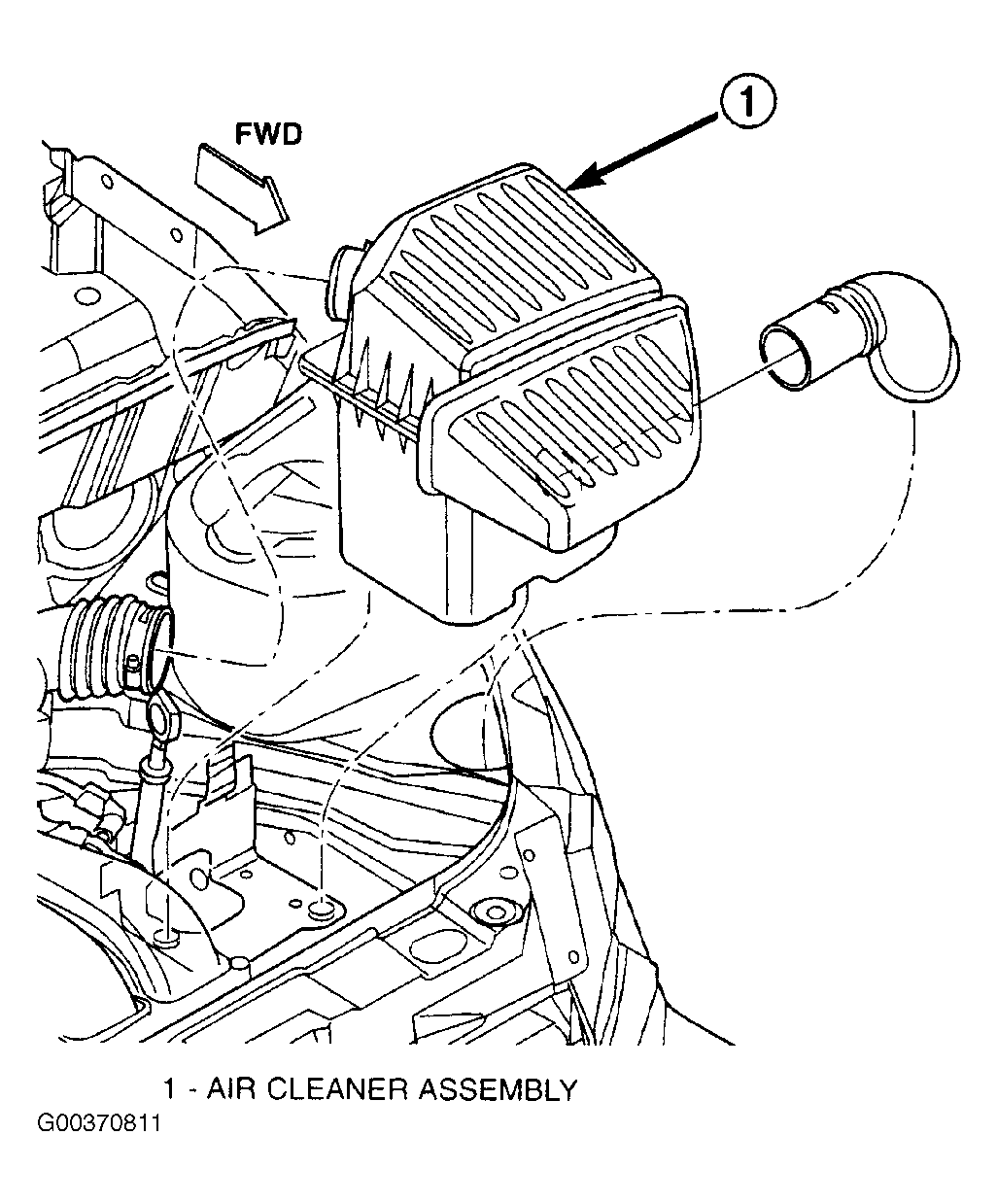

- Install air cleaner assembly. See Figure .
- Connect battery cables.
