Power Sunroof Module C1 Connector End View

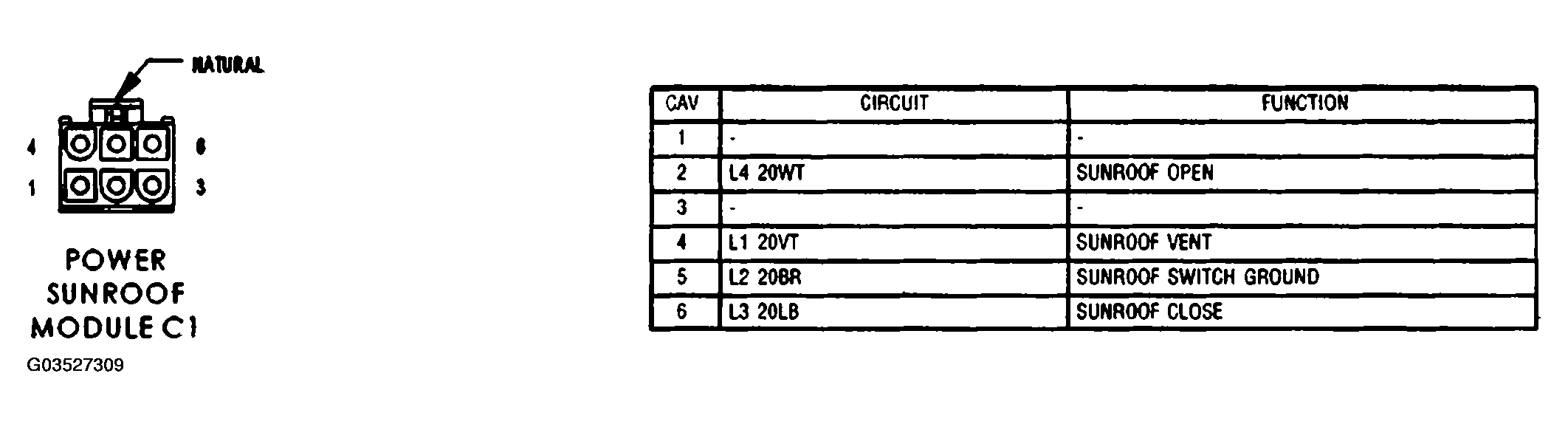

Fig 1: Power Sunroof Module Connector End View (C1)

G03527309

Courtesy of DAIMLERCHRYSLER CORP.
