Input Speed Sensor Connector End View

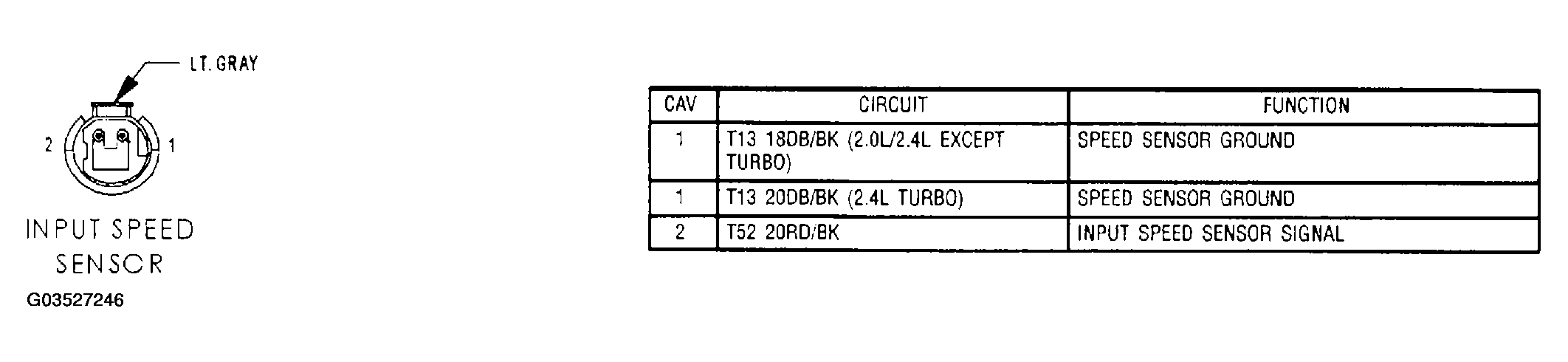

Fig 1: Input Speed Sensor Connector End View

G03527246

Courtesy of DAIMLERCHRYSLER CORP.
