Engine Control Module C1 (Diesel) Connector End View

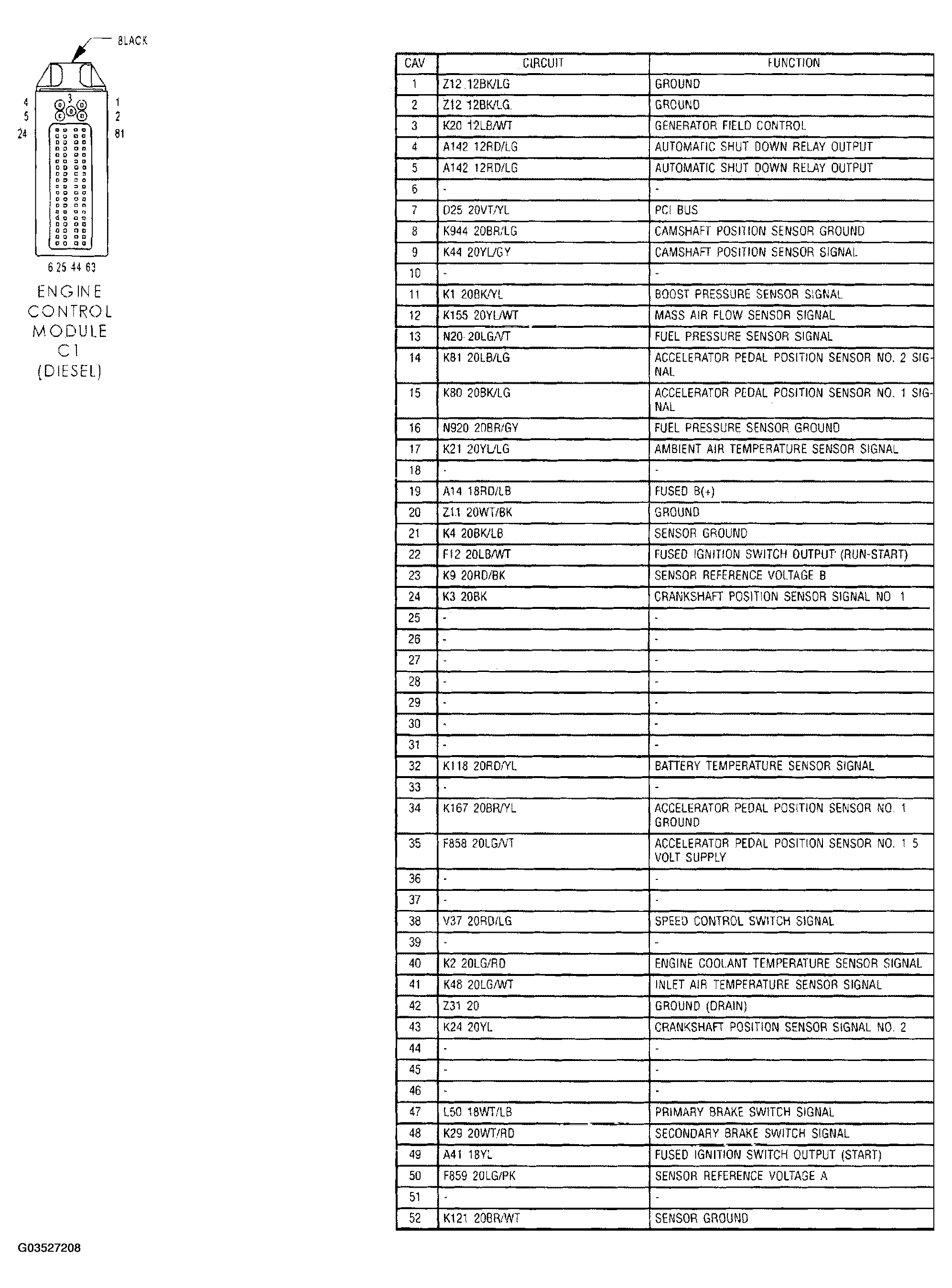

Fig 1: Engine Control Module (Diesel) Connector End View (C1)

Courtesy of DAIMLERCHRYSLER CORP.

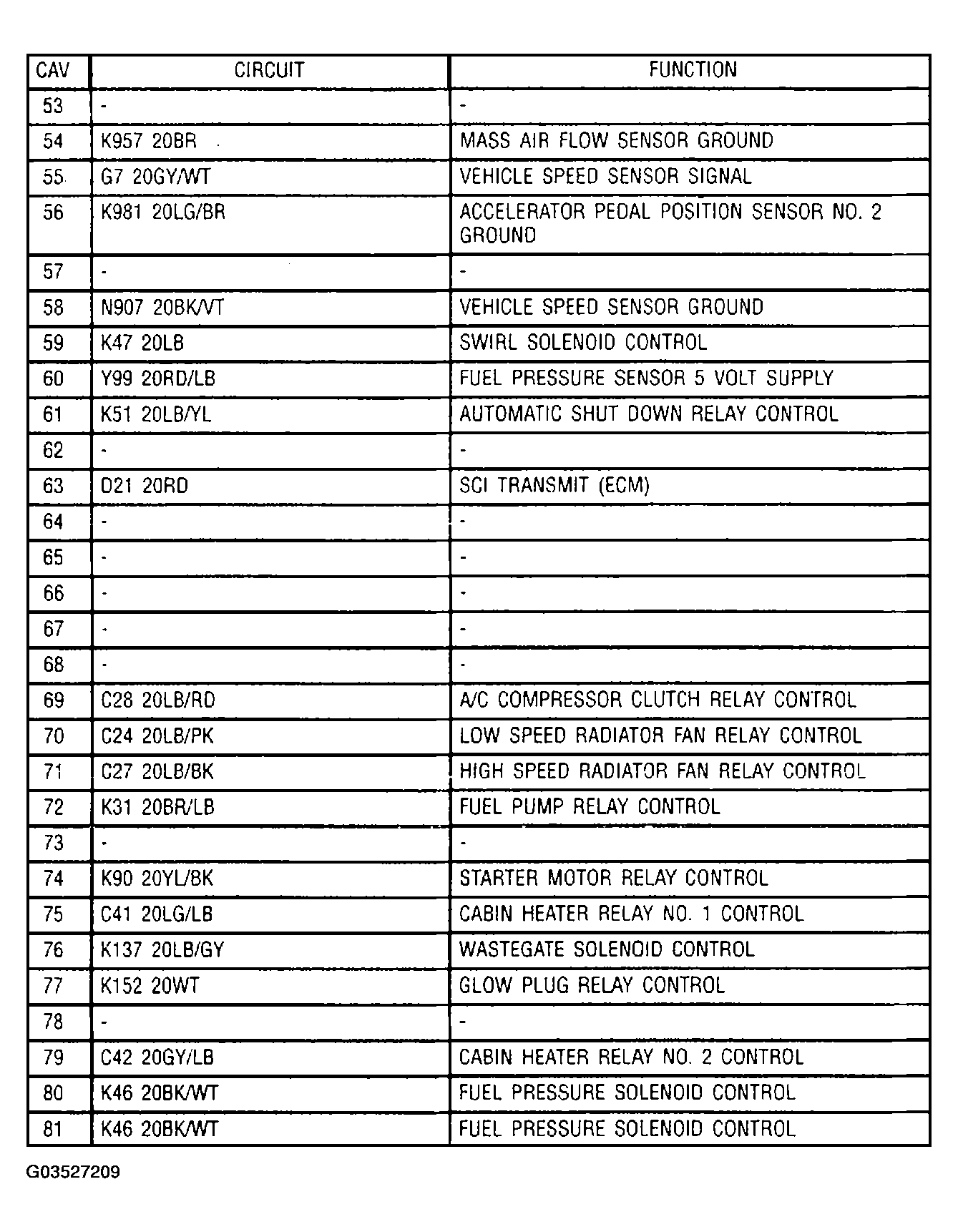

Fig 2: Engine Control Module (Diesel) Connector End View (C1)

Courtesy of DAIMLERCHRYSLER CORP.
