Removal - 2.4L Turbo

  1. Disconnect the negative battery cable.
  2. Remove the electrical connector from the ignition coil capacitor.

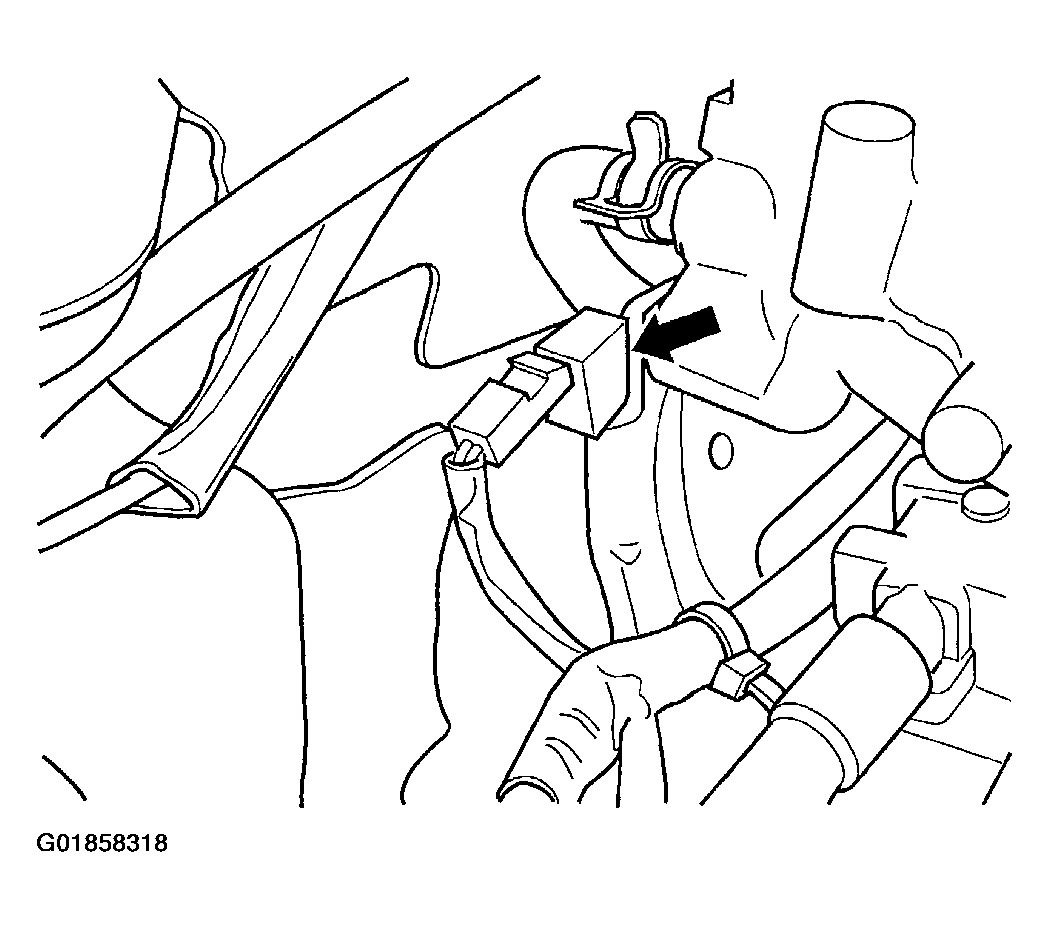

    Fig 1: Removing Coil Capactior - 2.4L Turbo
    G01858318Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove mounting bolt and remove capacitor.
