Powertrain Control Module C4 (NGC) Connector End View

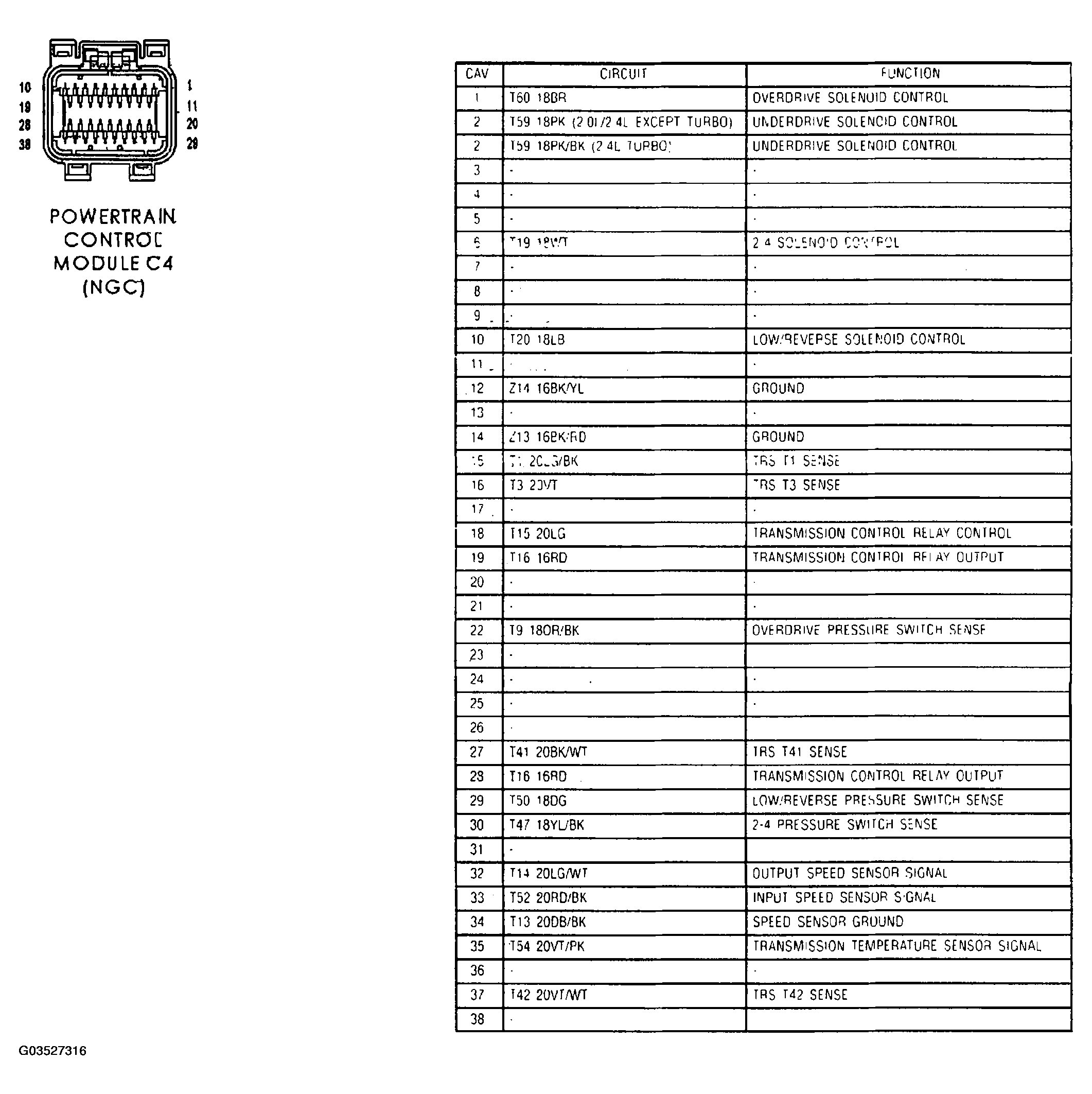

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C4)

Courtesy of DAIMLERCHRYSLER CORP.

Powertrain Control Module C4 (Ngc)
