Front Power Window Switch Connector End View

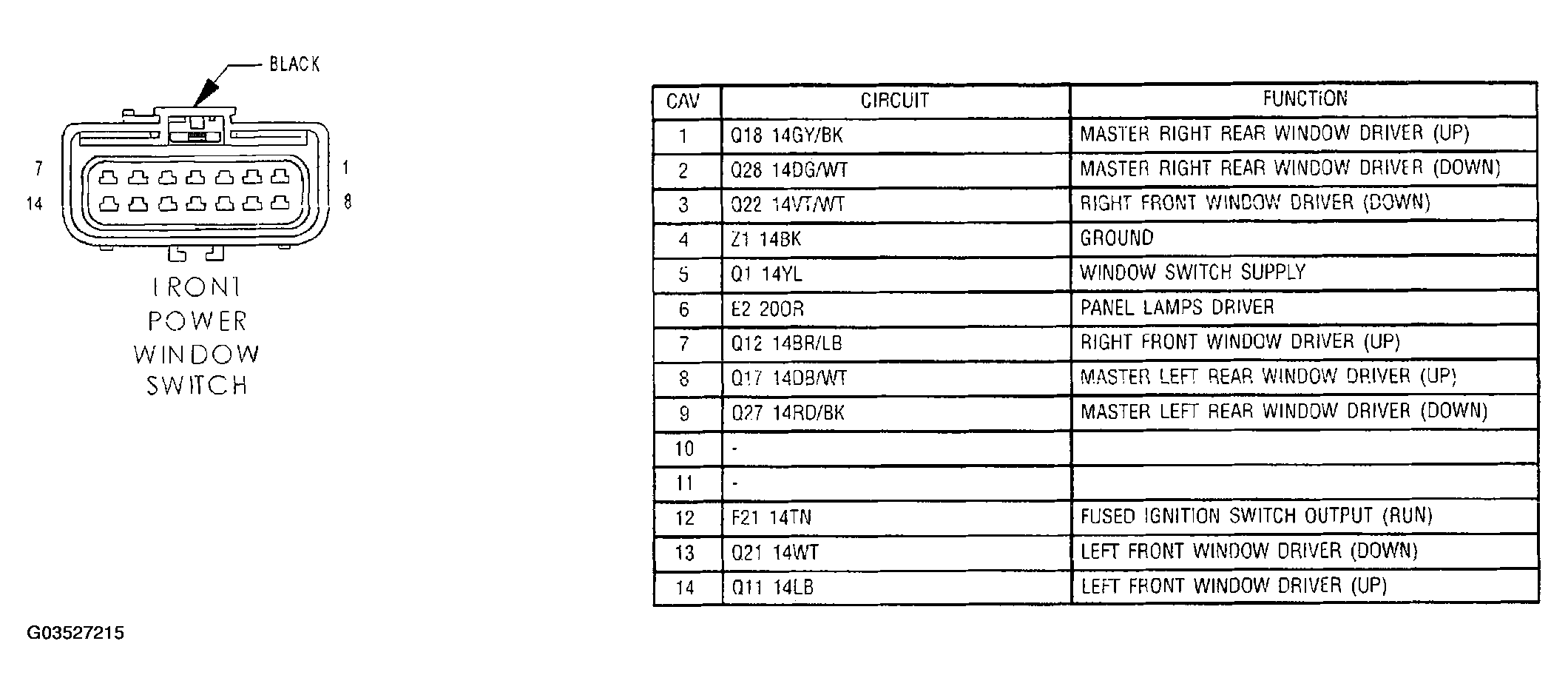

Fig 1: Front Power Window Switch Connector End View

G03527215

Courtesy of DAIMLERCHRYSLER CORP.
