Powertrain Control Module: Removal: Removal

The PCM engine control strategy prevents reduced idle speeds until after the engine operates for 320 km (200 miles). If the PCM is replaced after 320 km (200 miles) of usage, update the mileage and vehicle identification number (VIN) in the new PCM. Use the DRB scan tool to change the millage and VIN in the PCM. If this step is not done a Diagnostic Trouble Code (DTC) may be set.

The PCM attaches to a bracket welded on the dash panel.

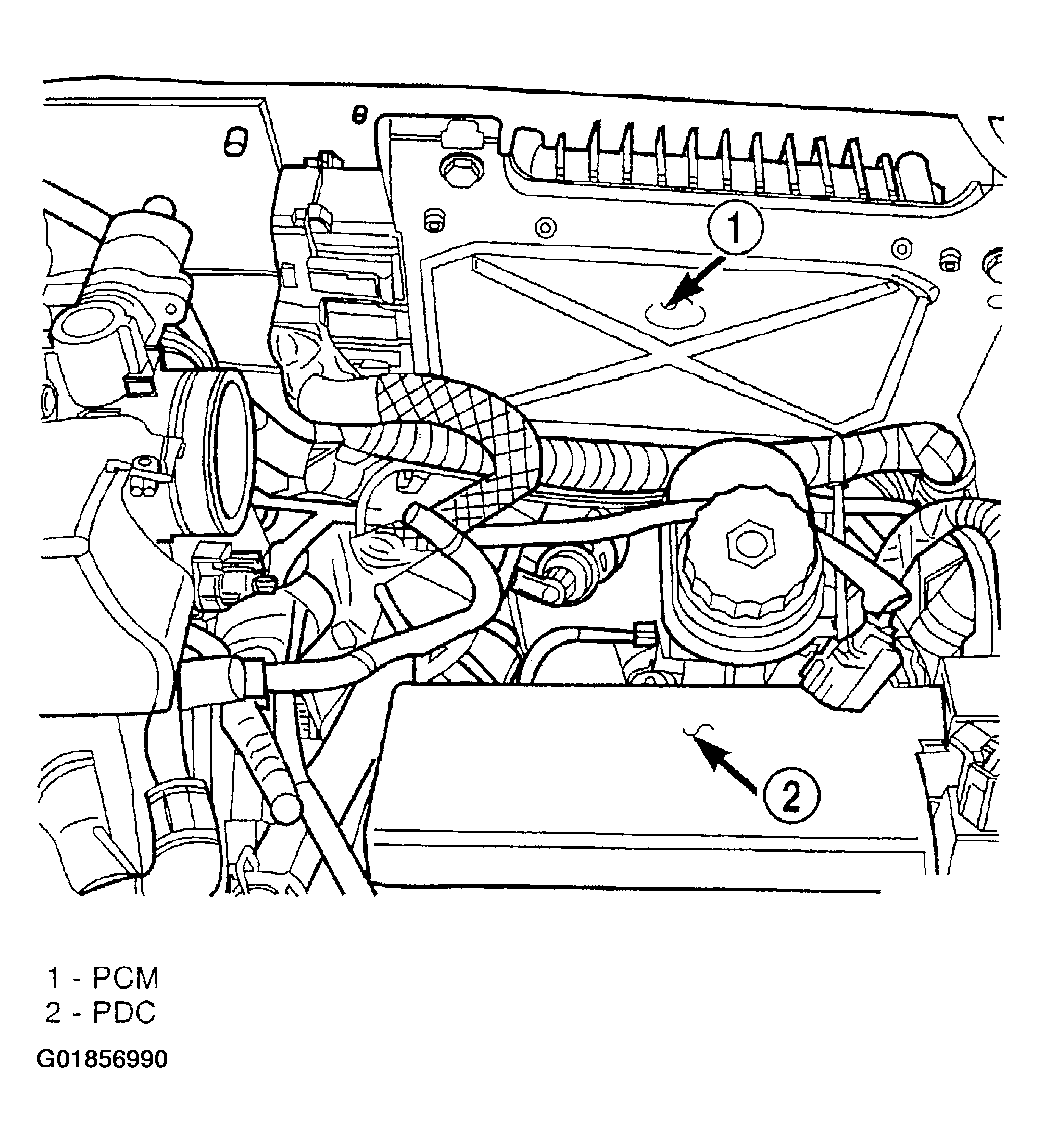

Fig 1: Locating PCM

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Remove the negative battery cable.
3. Remove screws attaching PCM to dashpanel bracket.

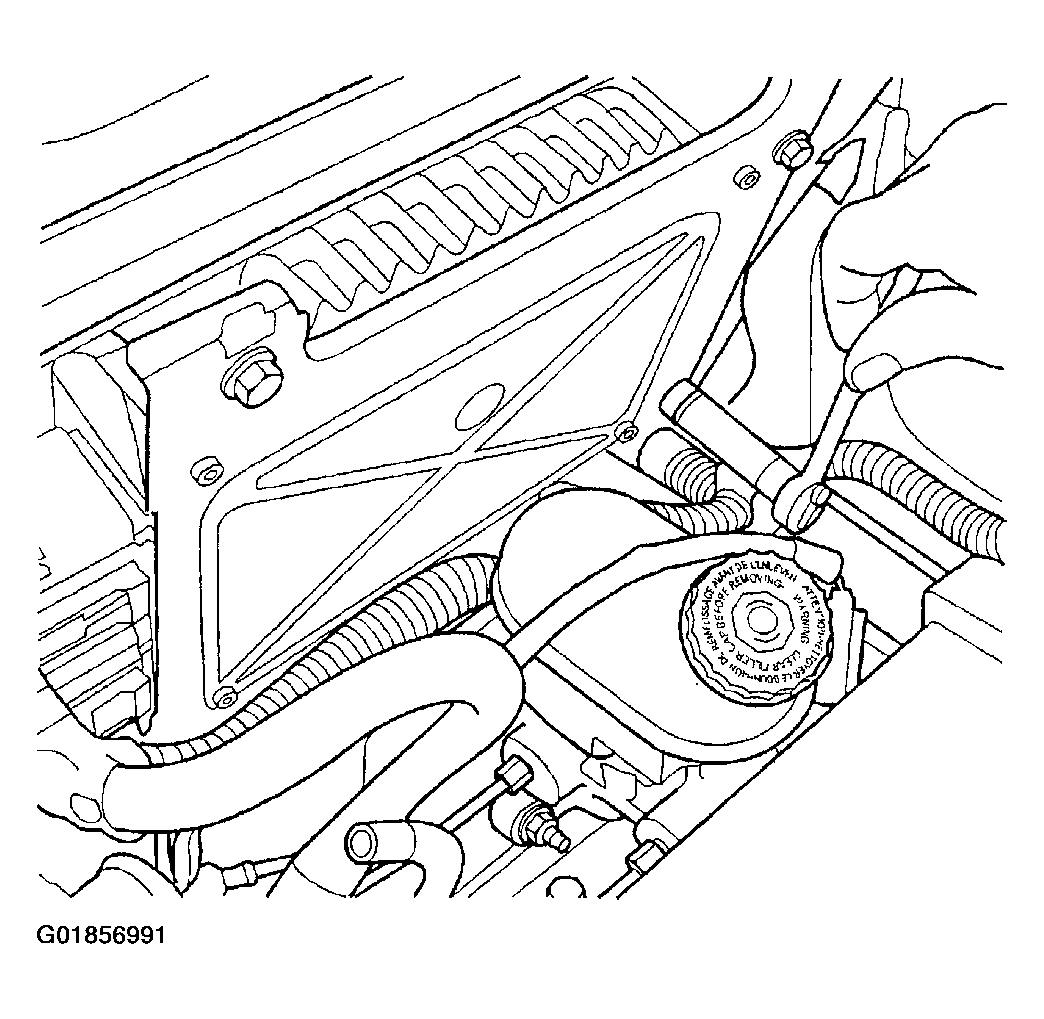

   Fig 2: Removing PCM Attaching Screws

   Courtesy of DAIMLERCHRYSLER CORP.
4. Unlock the connector then disconnect both 40-way connectors from the PCM.

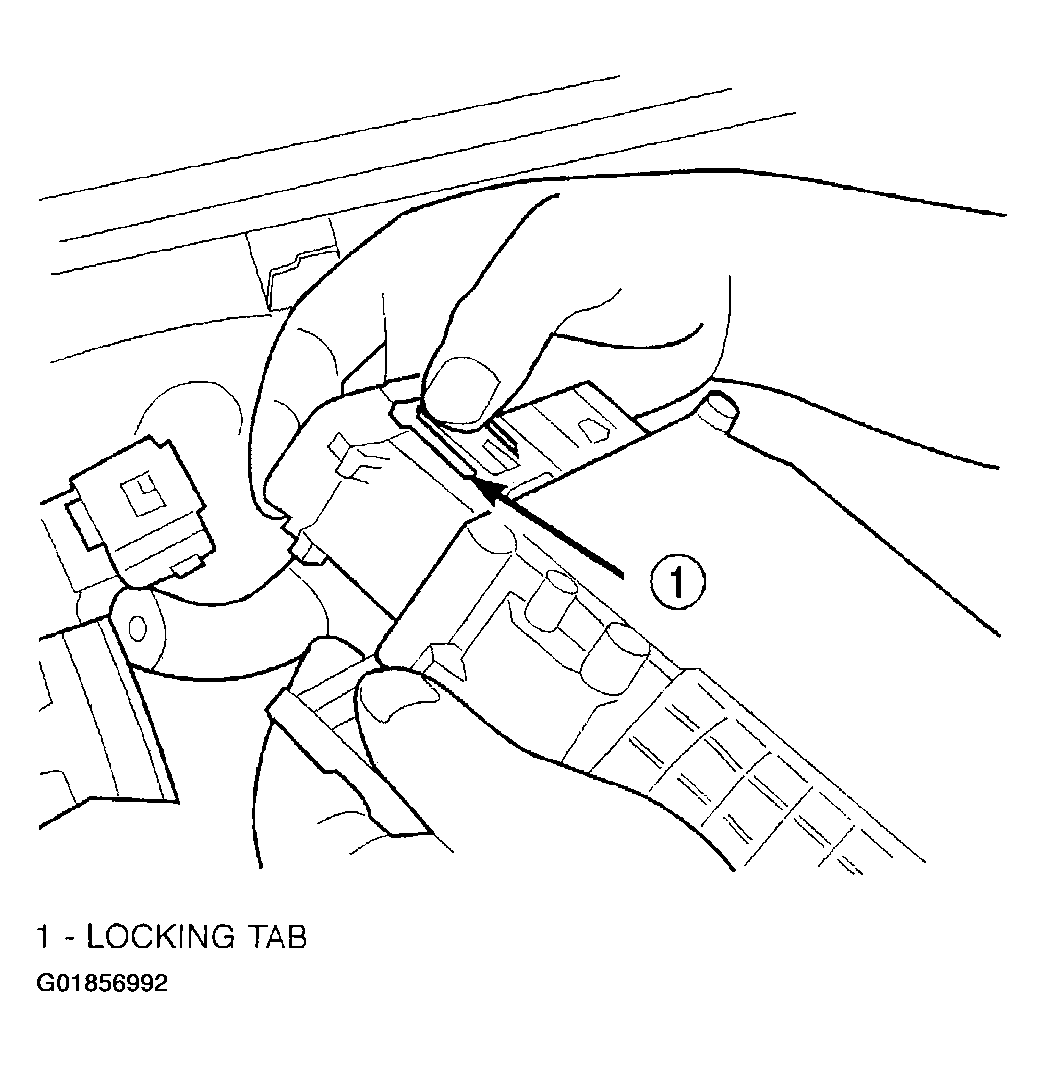

   Fig 3: Identifying Locking Tabs

   Courtesy of DAIMLERCHRYSLER CORP.
5. Lift PCM up to remove it from vehicle.
