Installation - 2.0, 2.4 & 2.4L Turbo

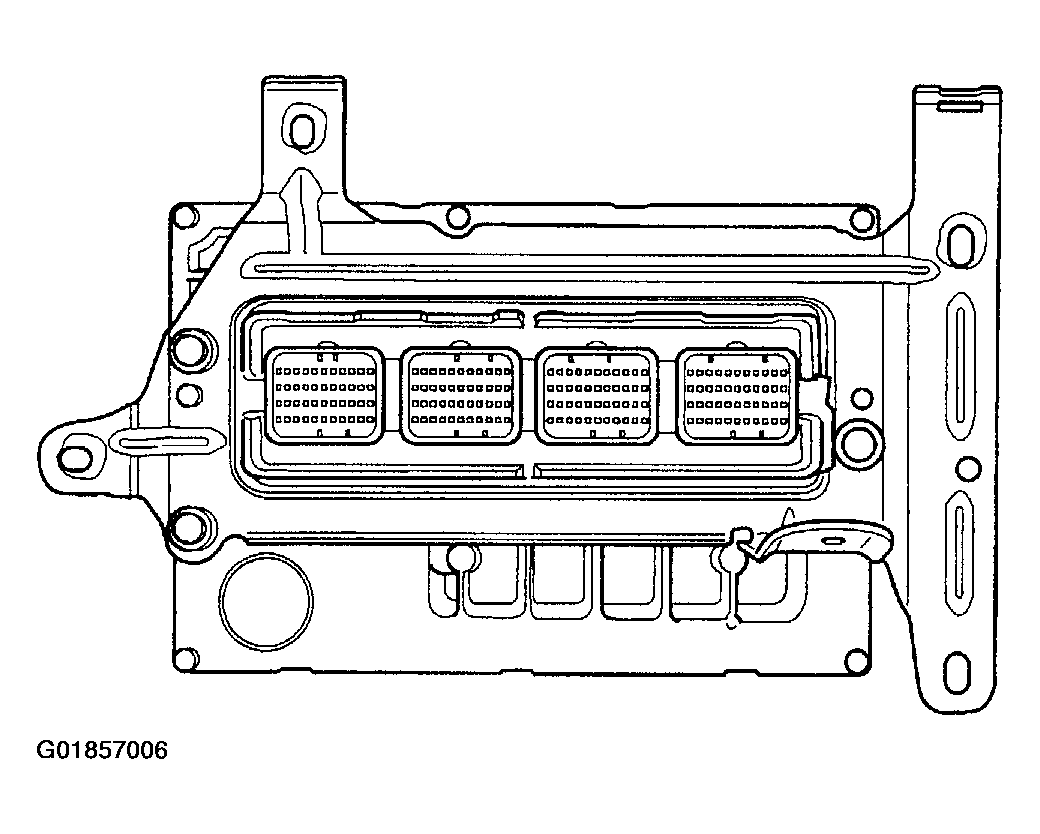

  1. Install the PCM bracket and 3 screws to the PCM and tighten to 11.8 N.m (105 in. lbs.). See Figure .

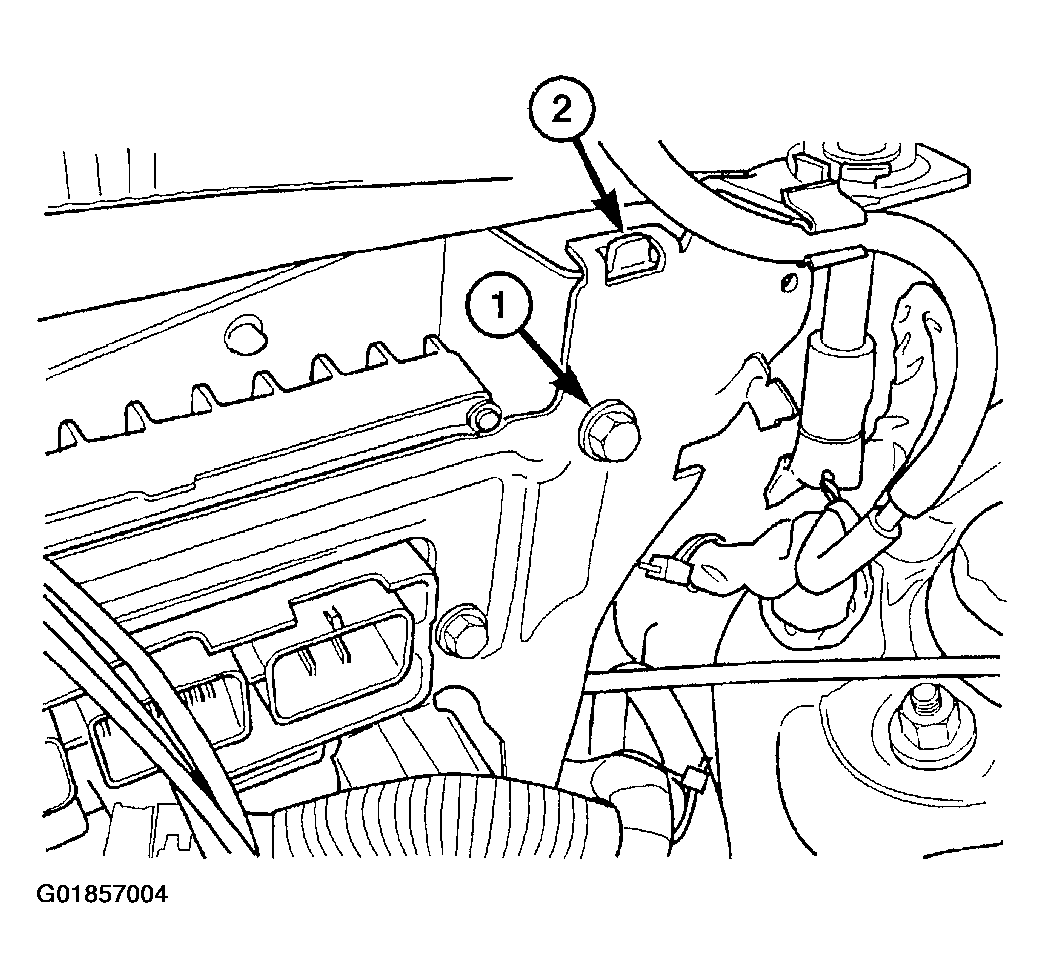

  2. Install the PCM and bracket assembly and locate the bracket on the tab. See Figure .

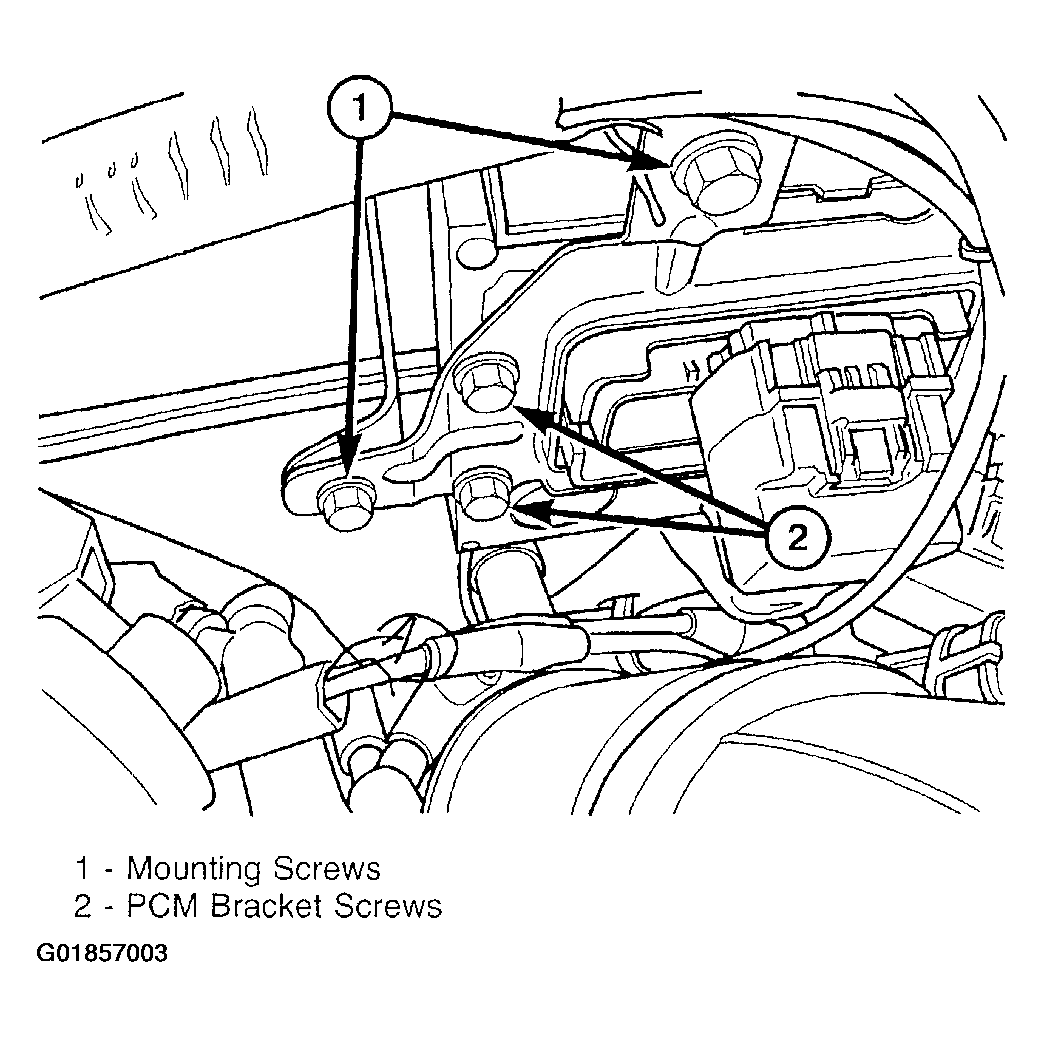

  3. Install the 3 mounting screws to the PCM mounting bracket and tighten to 10.7 N.m (95 in. lbs.). See Figure .
    4. NOTE: The electrical connector for the PCM are COLOR Coded.

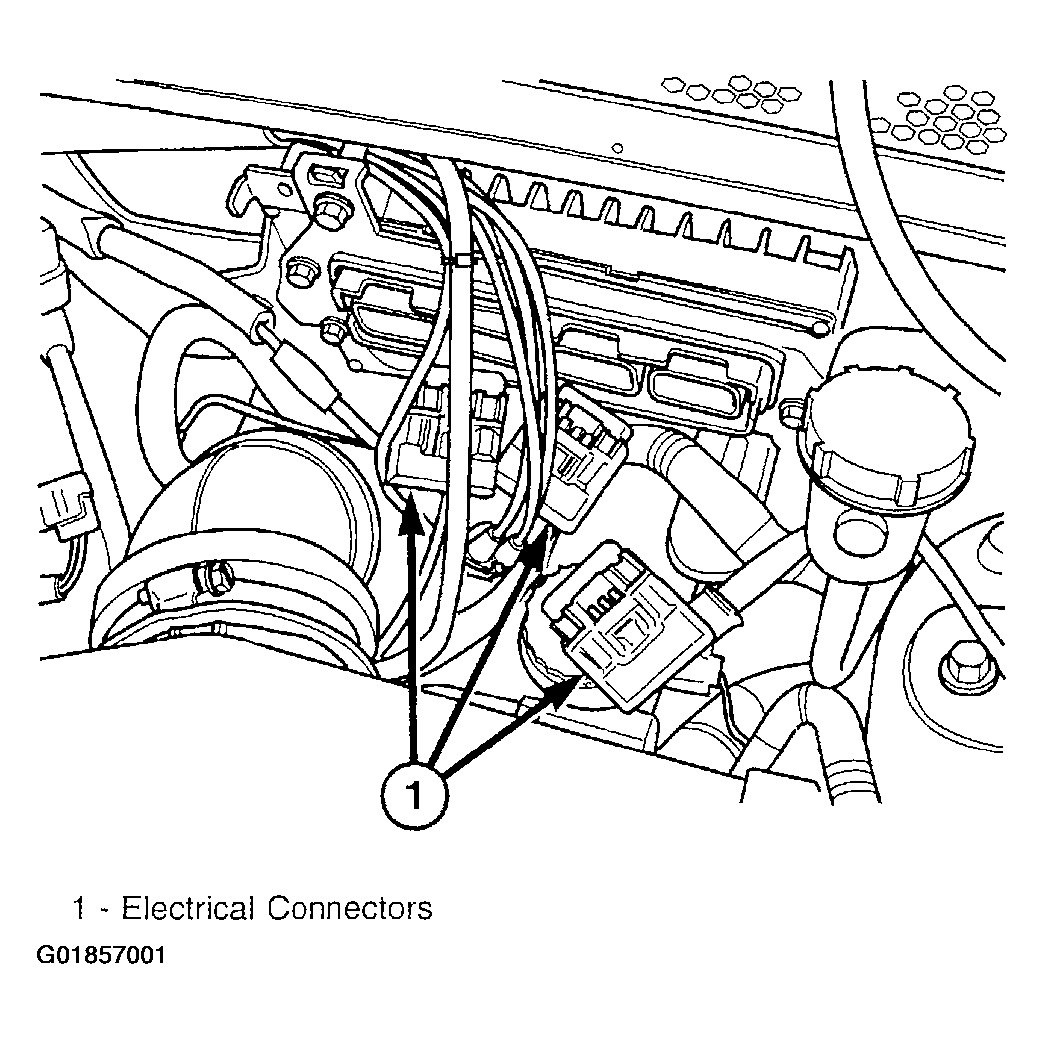

  4. Connect and lock the 3 or 4 electrical connectors to the Powertrain Control Module (PCM). See Figure .

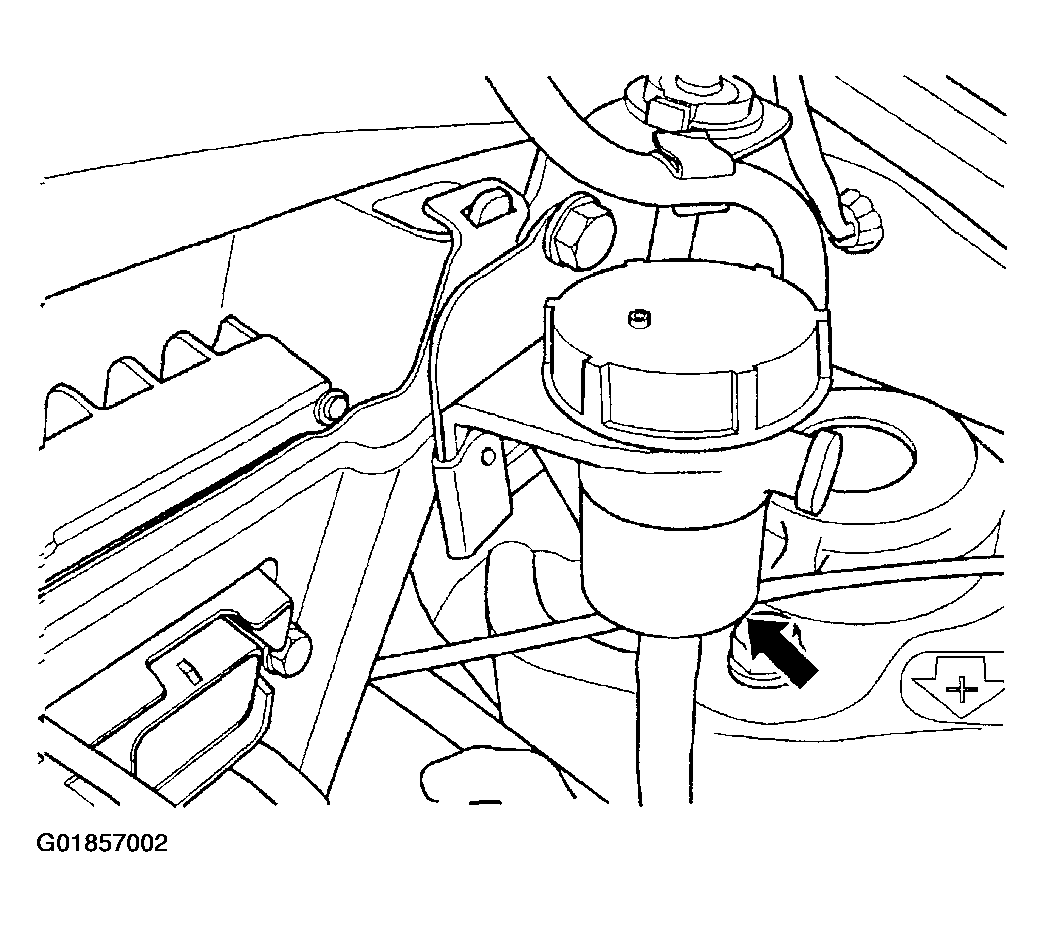

  5. Relocate and install the clutch reservoir. See Figure .
  6. Connect the negative battery cable.
