Hands Free Module C3 Connector End View

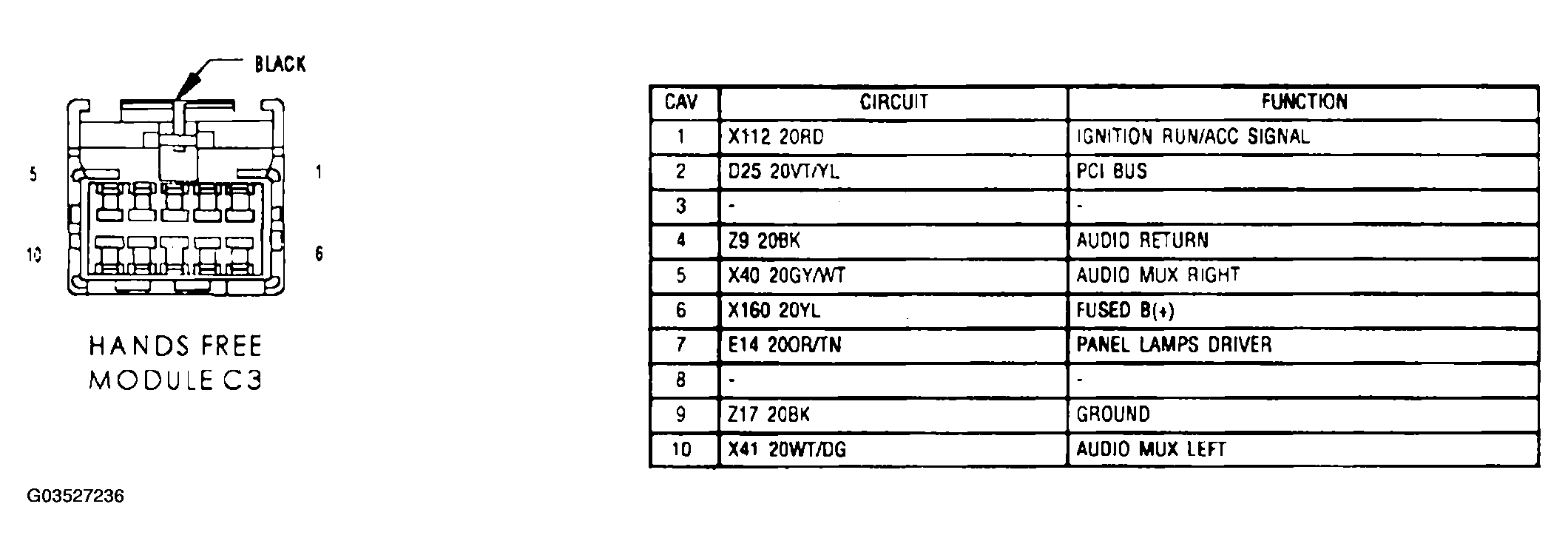

Fig 1: Hands Free Module Connector End View (C3)

G03527236

Courtesy of DAIMLERCHRYSLER CORP.
