C303 Connector End View

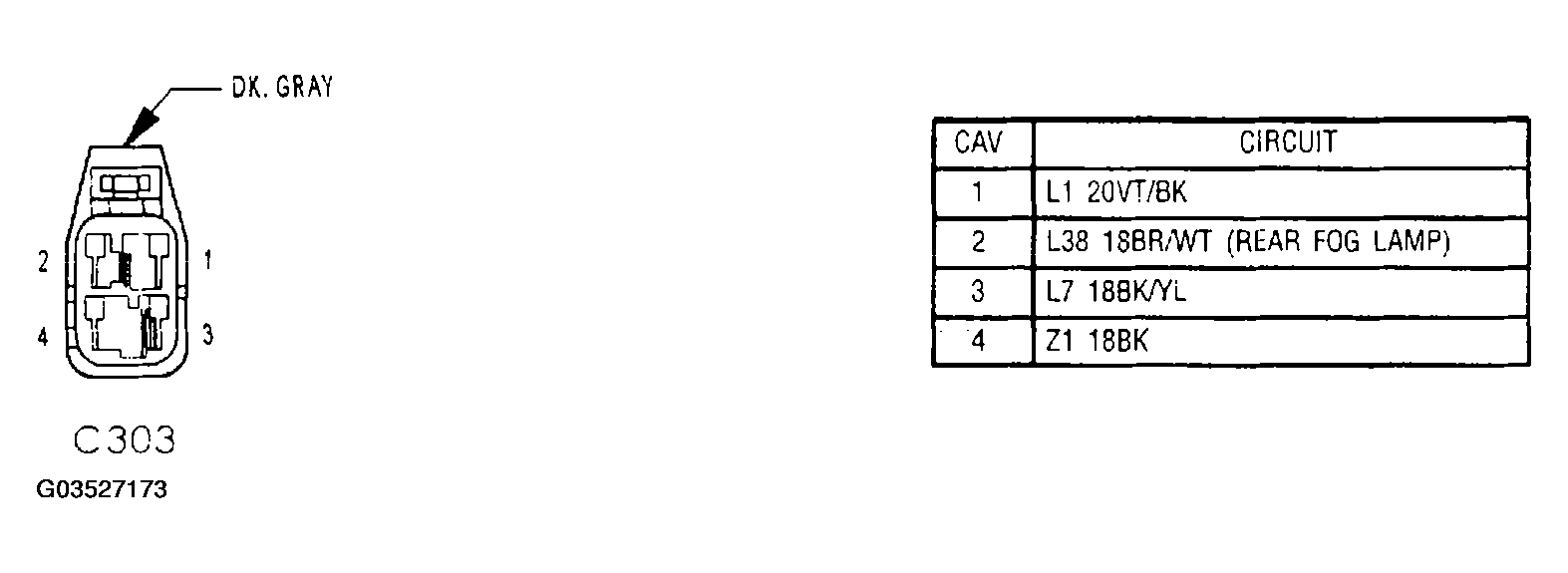

Fig 1: Left Body Side Inline Connector End View (C303)

G03527173

Courtesy of DAIMLERCHRYSLER CORP.

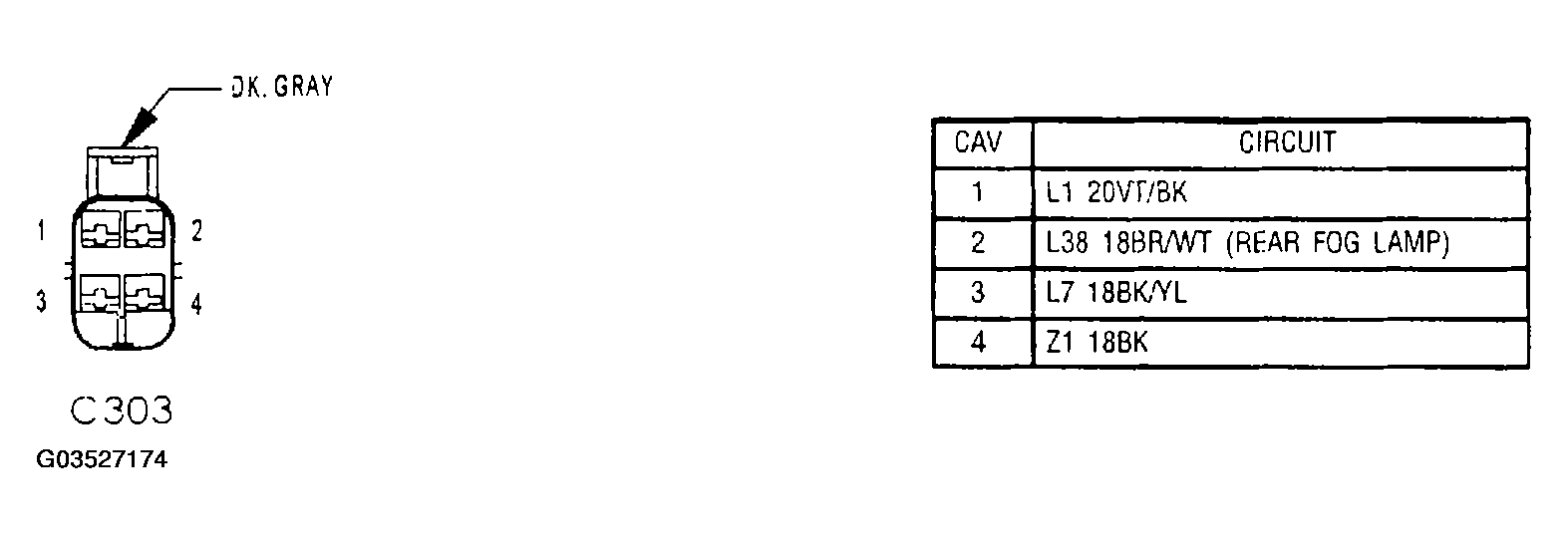

Fig 1: Rear Fascia Side Inline Connector End View (C303)

G03527174

Courtesy of DAIMLERCHRYSLER CORP.
