C300 Connector End View

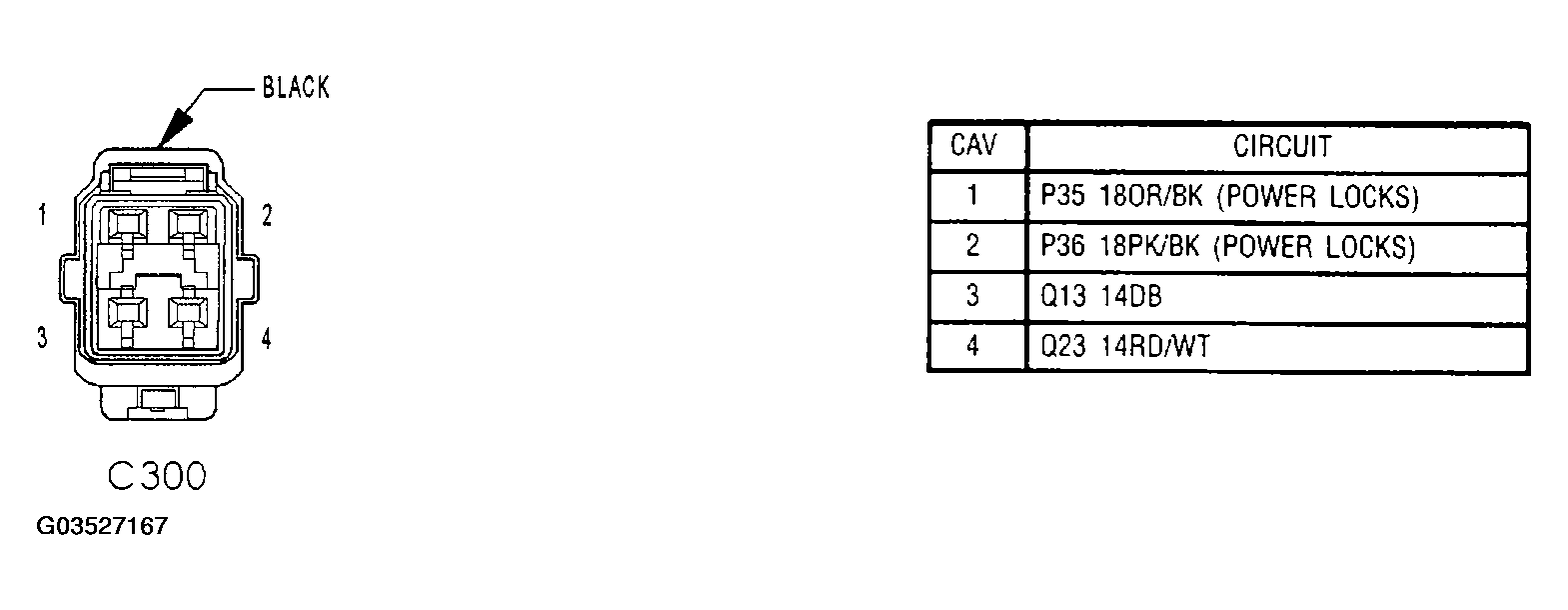

Fig 1: Left Body Side Inline Connector End View (C300)
G03527167Courtesy of DAIMLERCHRYSLER CORP.

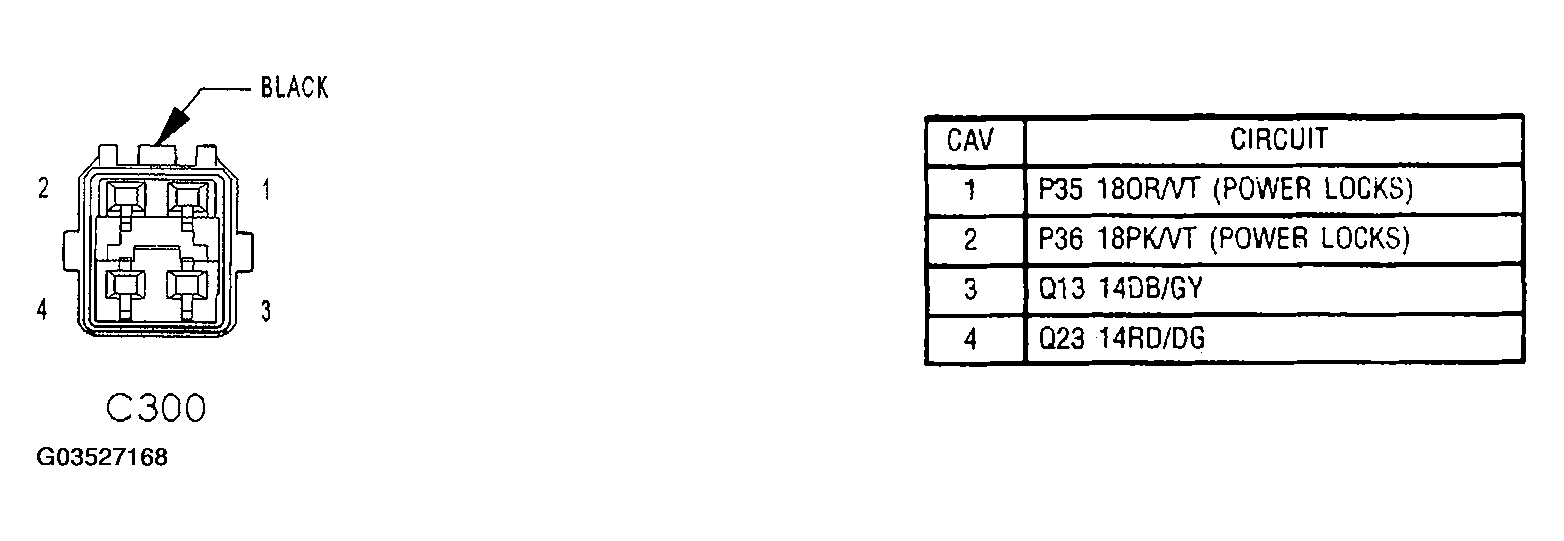

Fig 1: Left Rear Door Side Inline Connector End View (C300)
G03527168Courtesy of DAIMLERCHRYSLER CORP.
