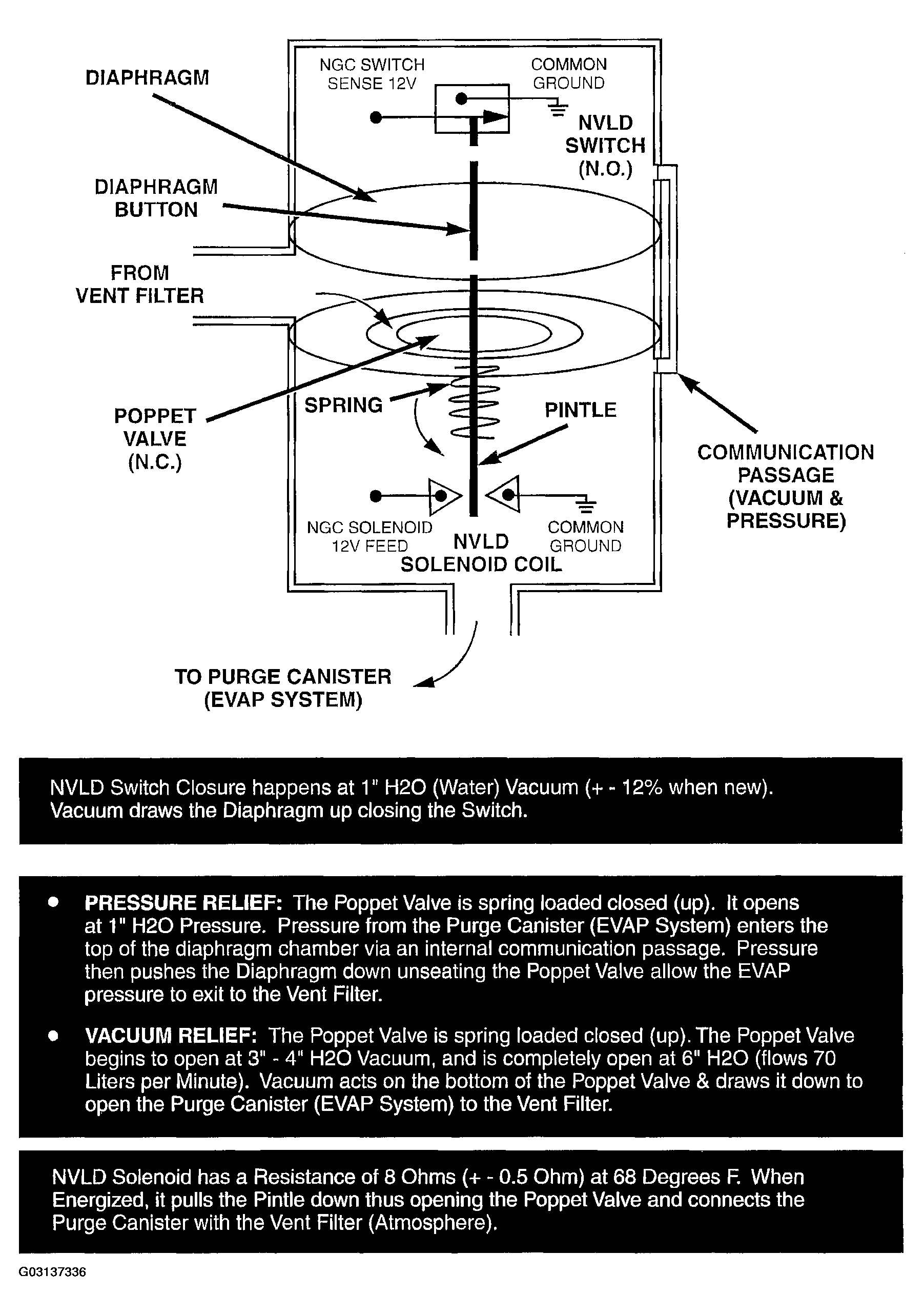

Home >> Chrysler >> 2004 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Diagnostics >> System Description & Functional Operation >> D. 02 Sensor Heater Monitor >> NVLD Leak Detection >> NVLD Assembly Internal Schematic
