*No Response From Transmission Control Module - NGC: Testing

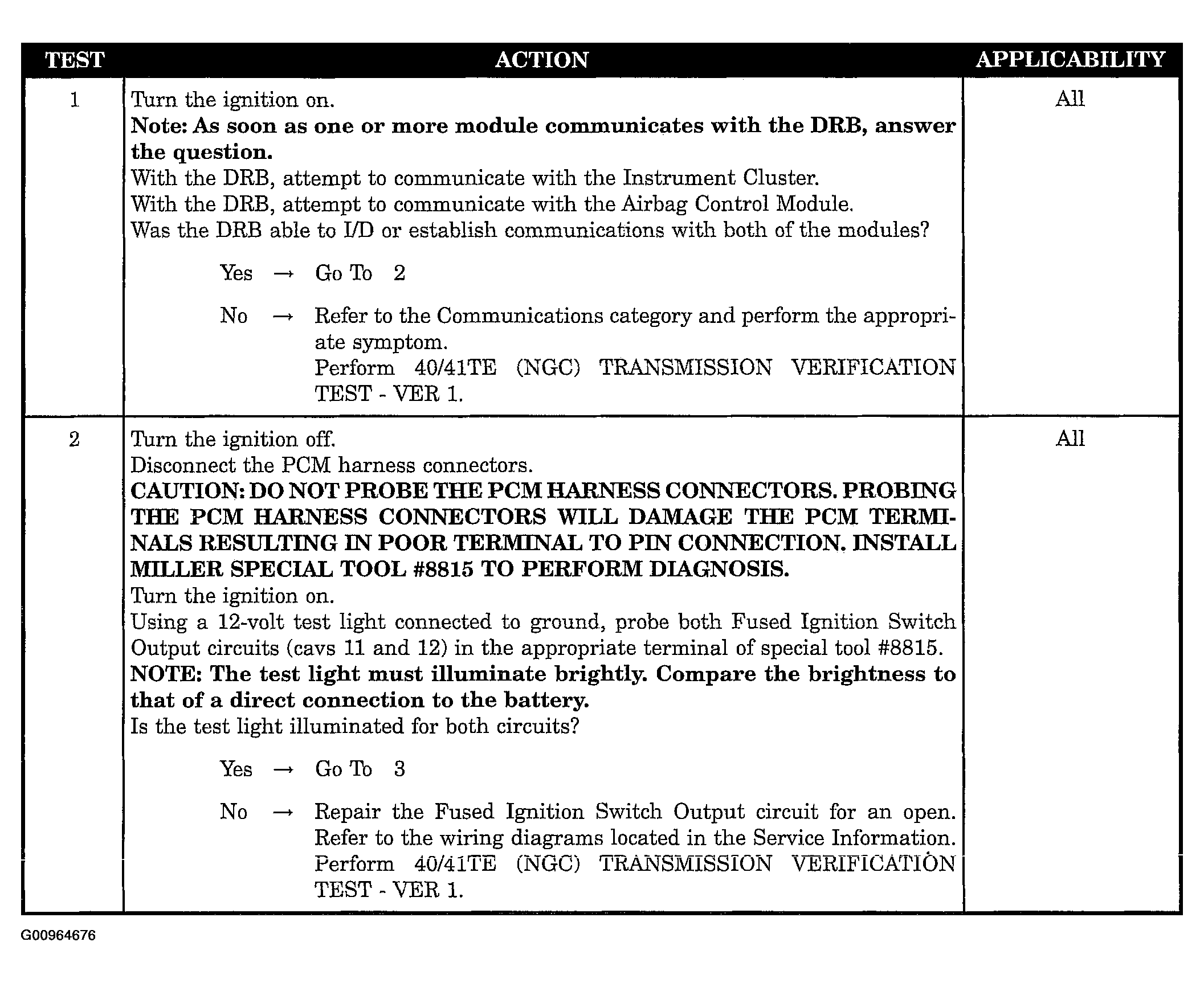

Fig 1: Testing: *No Response From Transmission Control Module - NGC (1 Of 3)
G00964676Courtesy of DAIMLERCHRYSLER CORP.

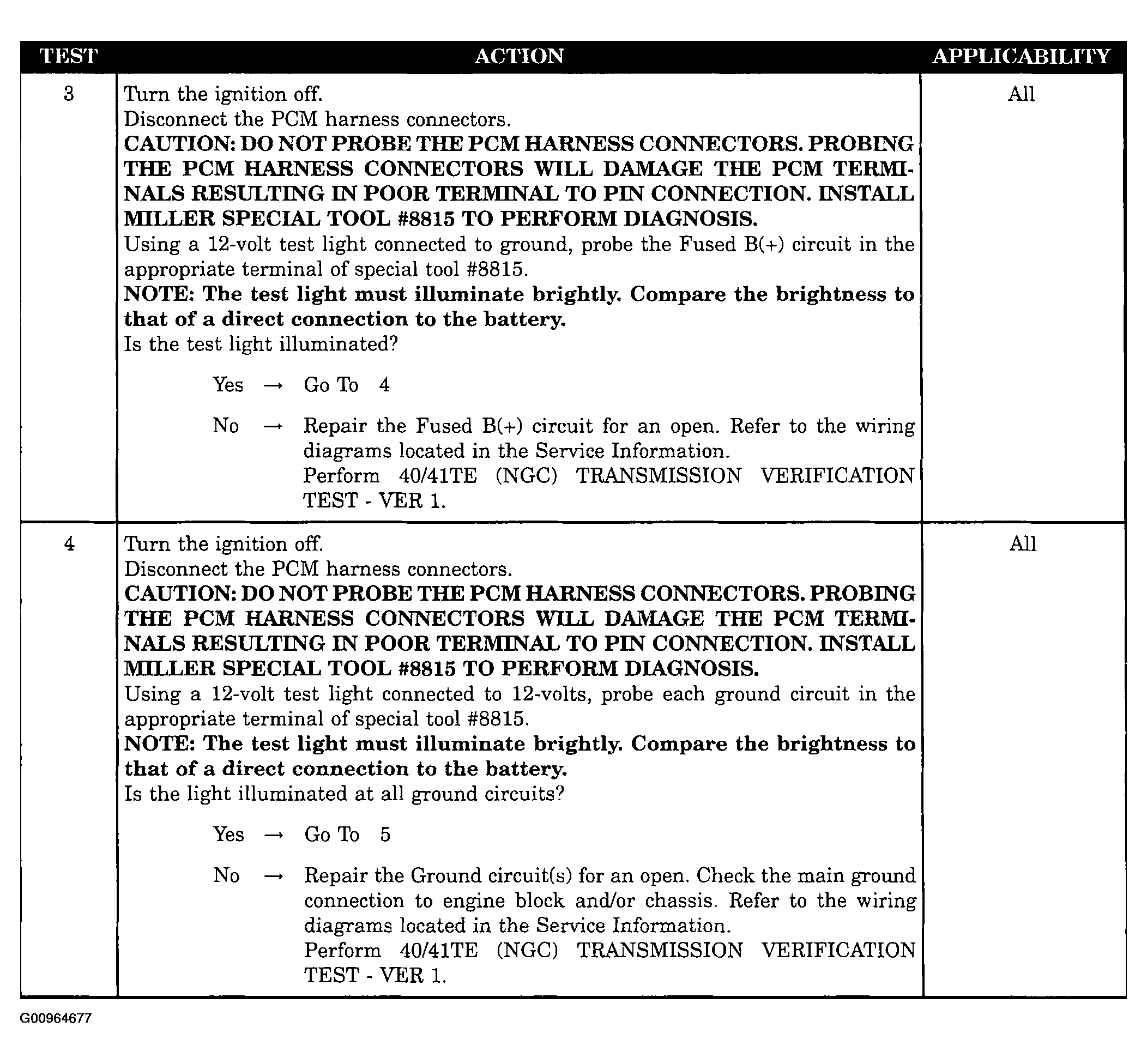

Fig 2: Testing: *No Response From Transmission Control Module - NGC (2 Of 3)
G00964677Courtesy of DAIMLERCHRYSLER CORP.

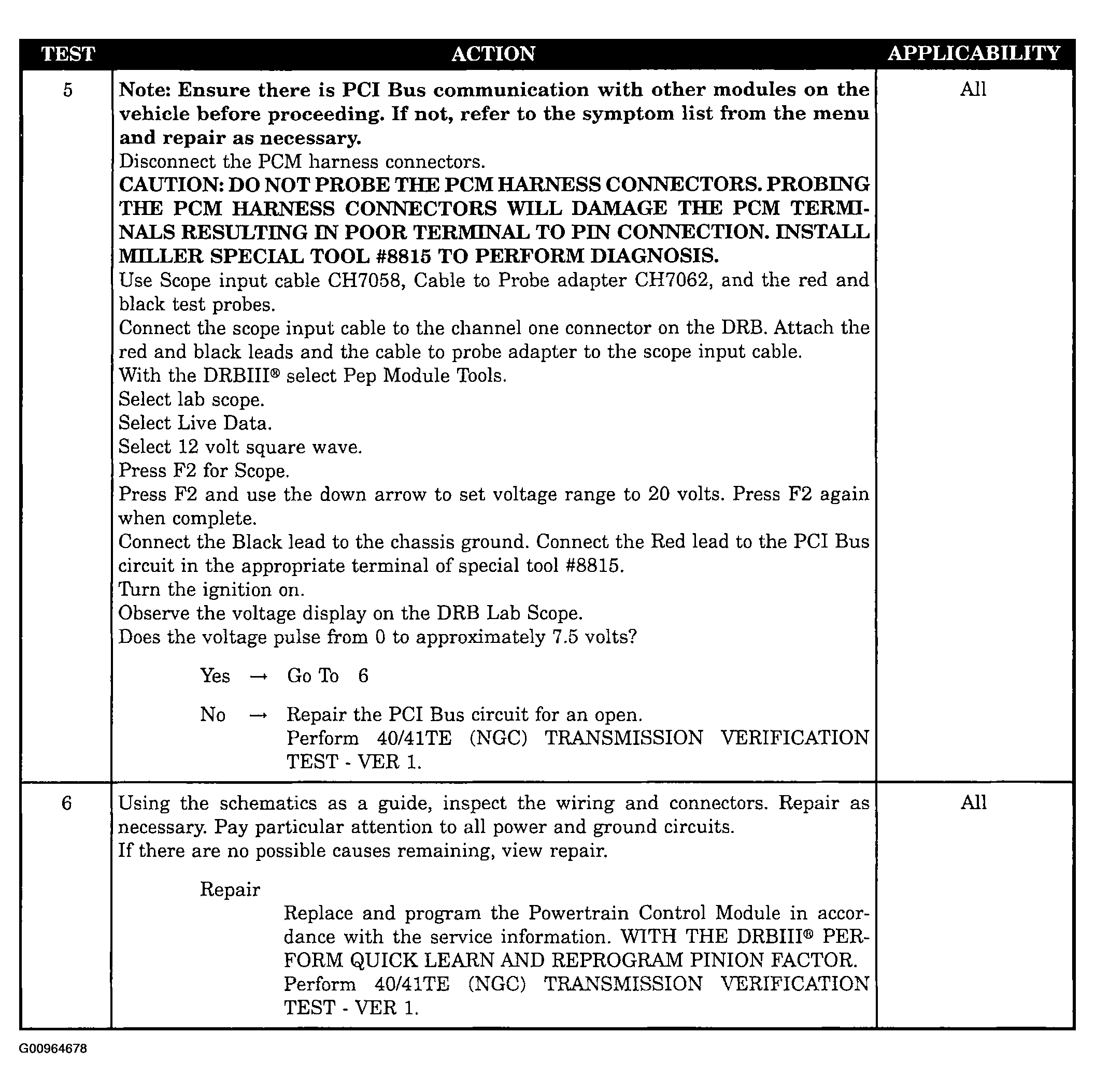

Fig 3: Testing: *No Response From Transmission Control Module - NGC (3 Of 3)
G00964678Courtesy of DAIMLERCHRYSLER CORP.
