Thermal Guard: Description

On gasoline engine equipped vehicles, a flexible thermal guard wraps around the battery case to enclose the sides of the battery. The thermal guard consists of a plastic cloth outer skin with a polyester based insulator fiber.

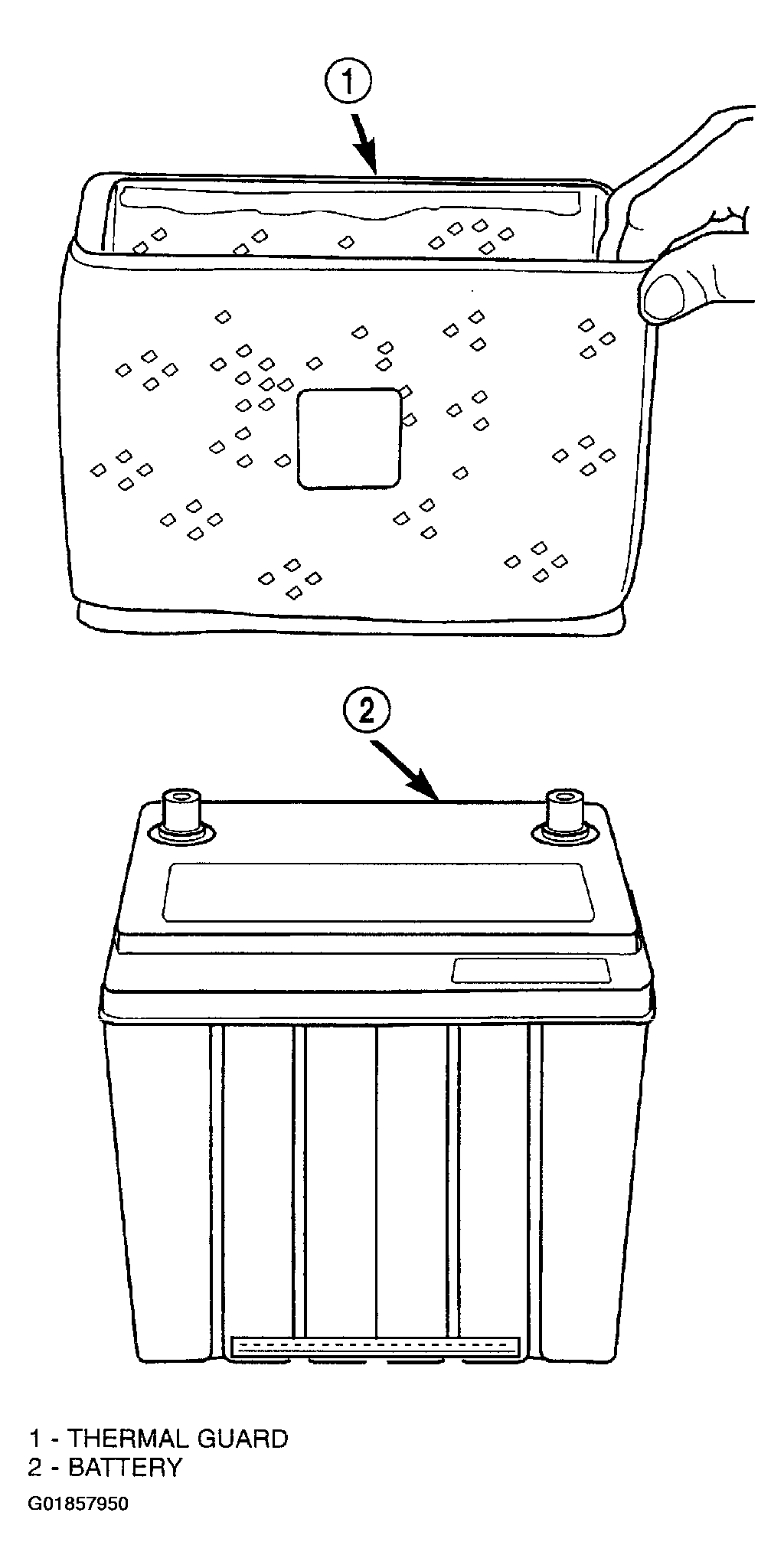

Fig 1: Identifying Battery Thermal Guard
G01857950Courtesy of DAIMLERCHRYSLER CORP.
