Starter Motor: Installation: 1.6L

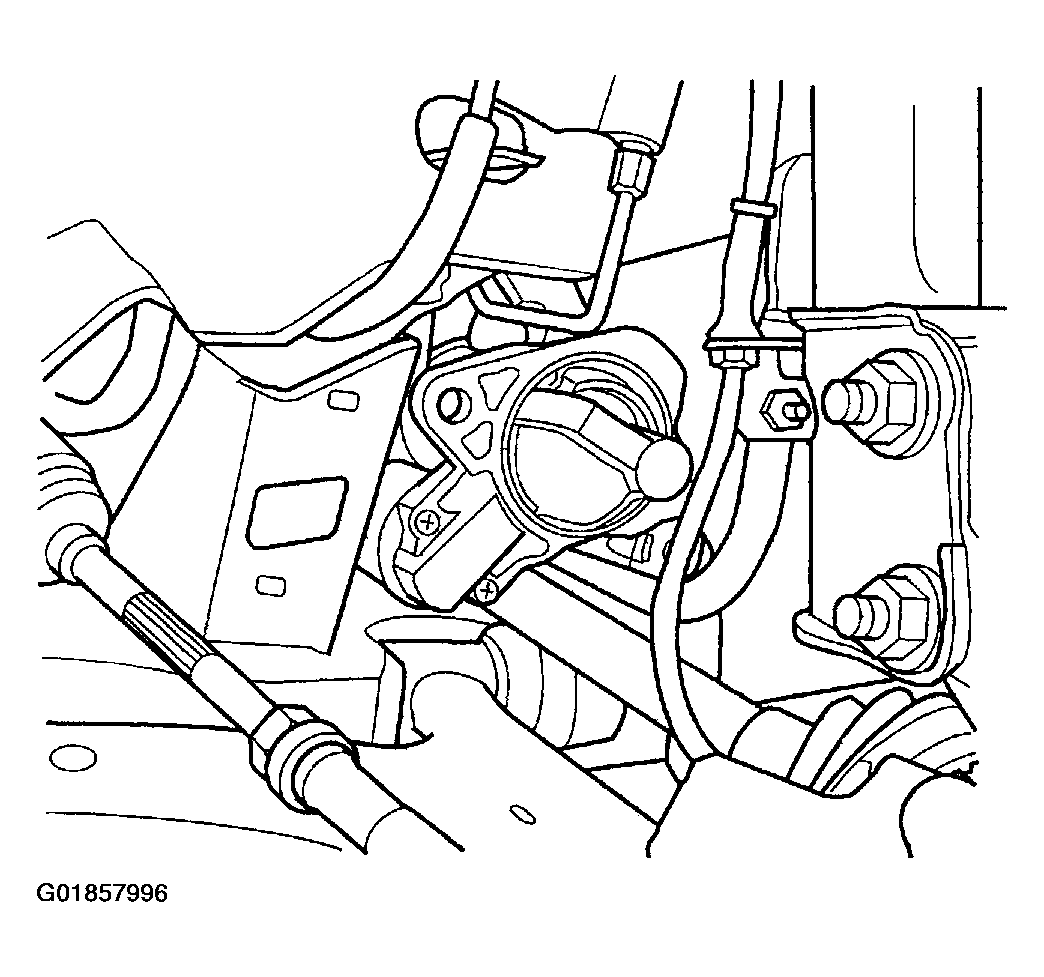

  1. Install the starter through the wheel well. See Figure.
  2. Install the lower mounting bolt.
  3. Install the upper mounting bolts.

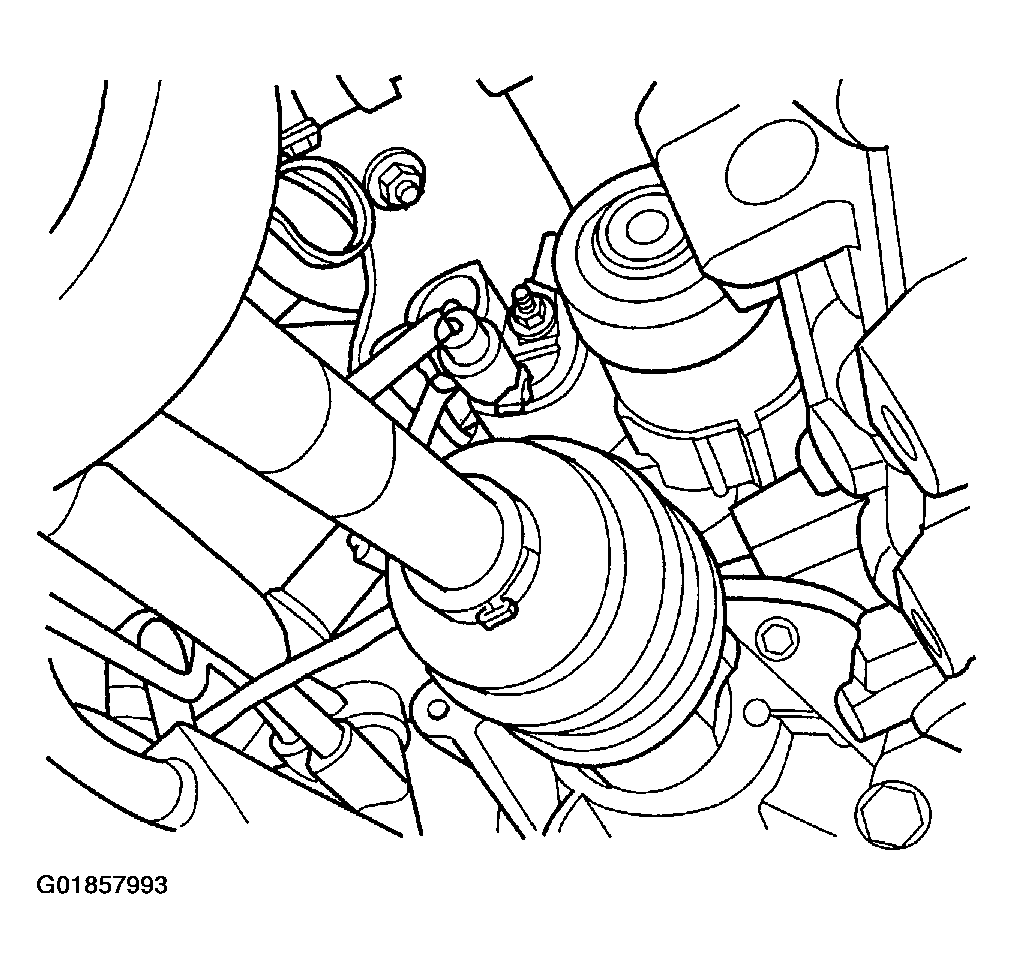

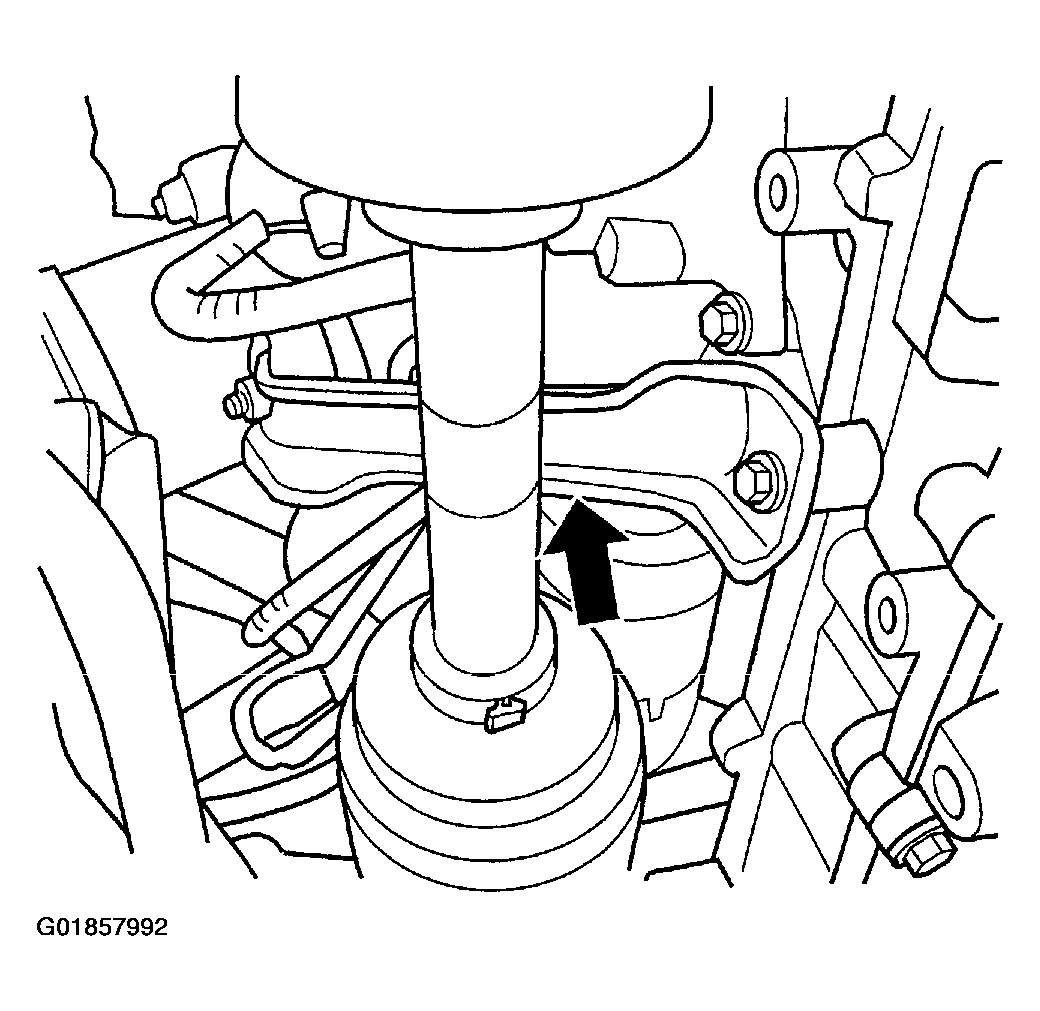

  4. Push the spring clip that holds the heat shield for the starter back on the starter solenoid. See Figure.

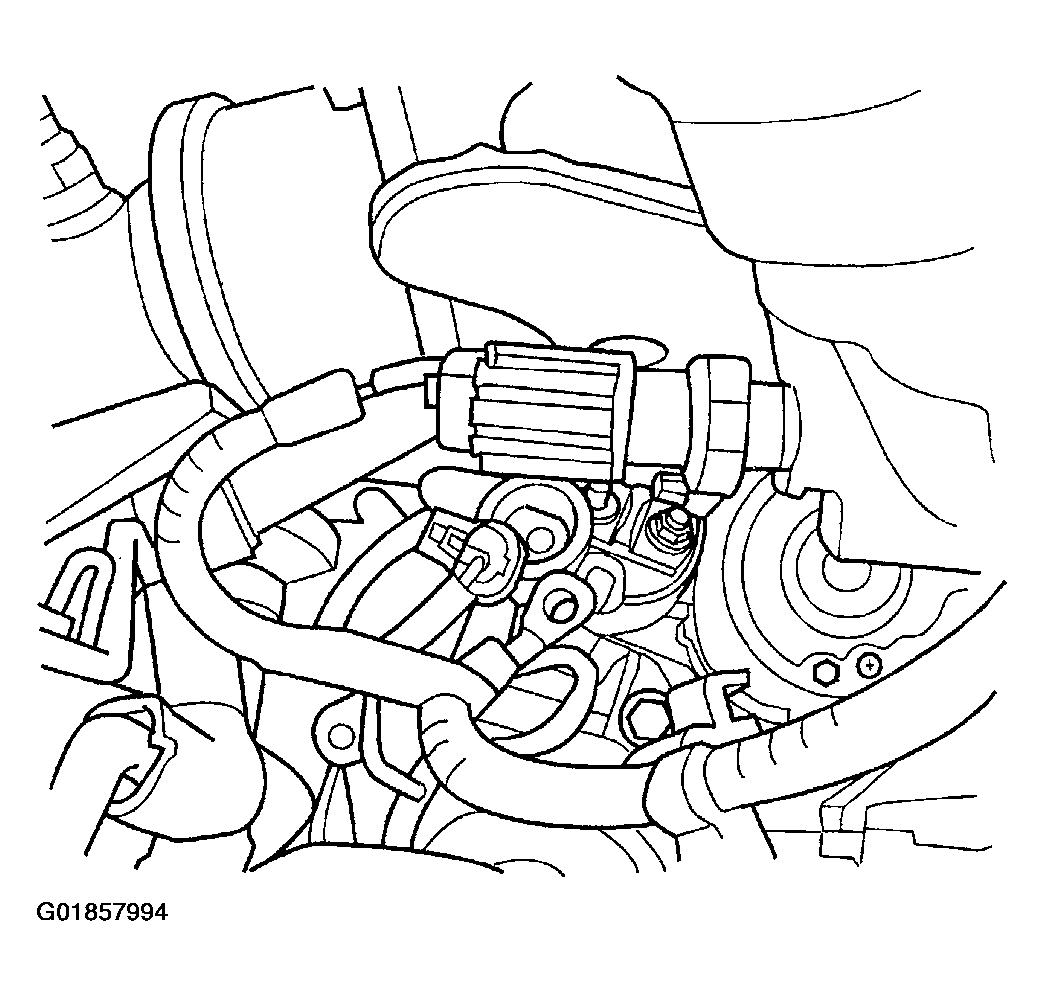

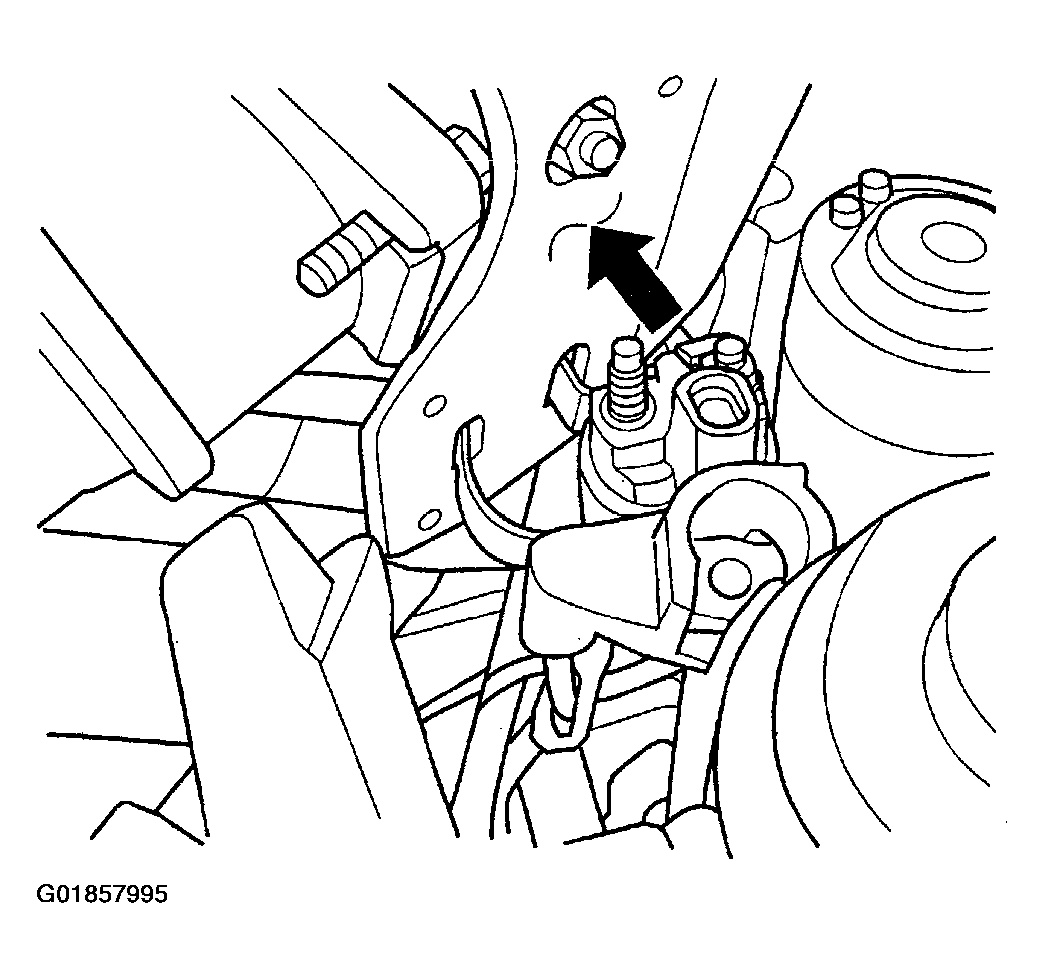

  5. Connect the battery cable and solenoid electrical connectors to the starter. See Figure and Figure.
  6. Install the exhaust manifold support bracket. See Figure.
  7. Lower vehicle.
  8. Connect the negative battery cable.
  9. Install air cleaner cover.
