Removal - Diesel Engine

Make sure ignition switch is in OFF position and all accessories are OFF.
Open the passenger door.
Position passenger seat to the full rear location.
Remove the two screws from the seat front trim panel.
Lift trim panel to disengage the lower tabs from the lower mounting slots and set aside.
Disconnect and isolate the battery negative cable.

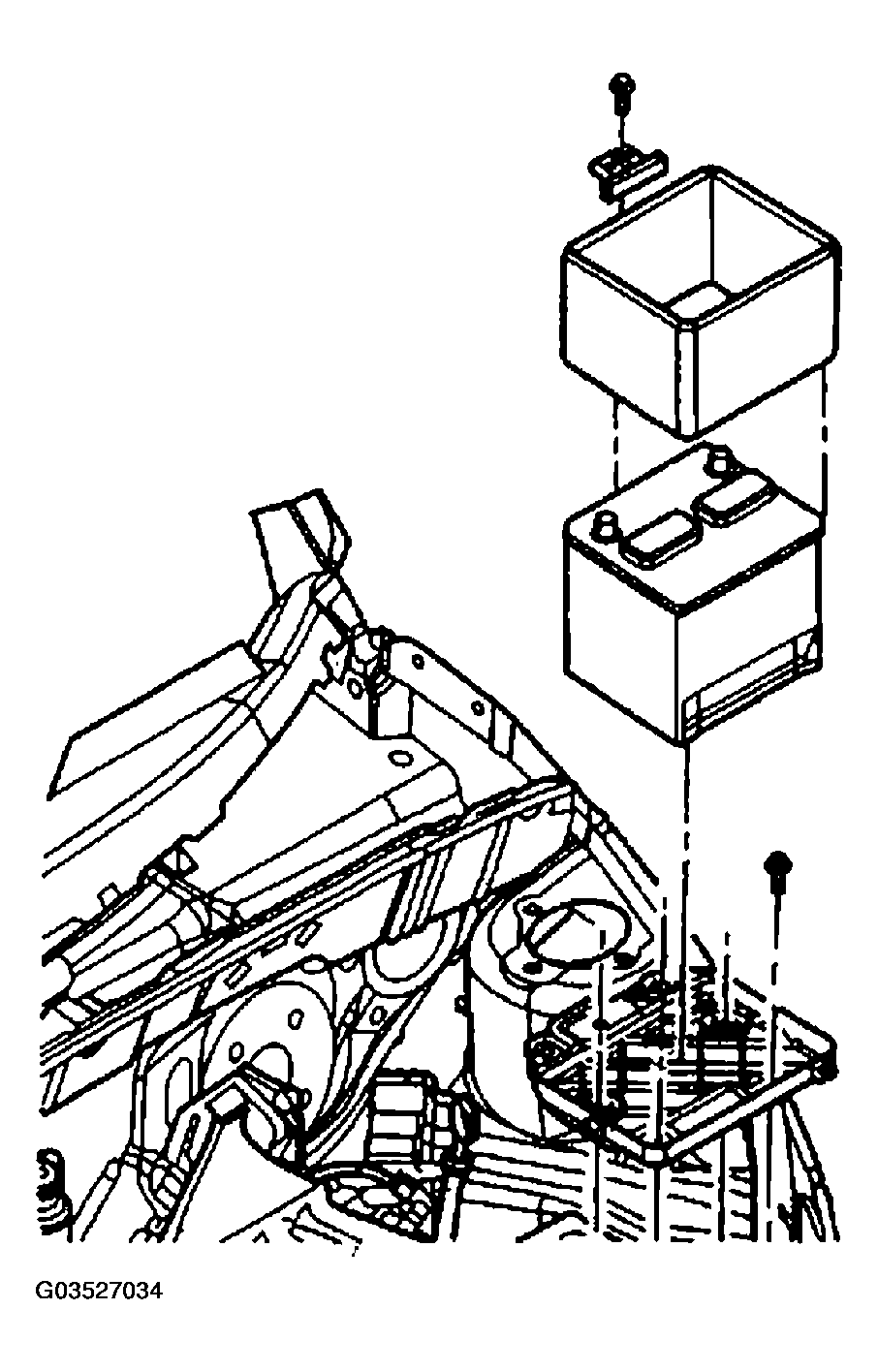

Fig 1: Installing Gasoline Engine
Courtesy of DAIMLERCHRYSLER CORP.

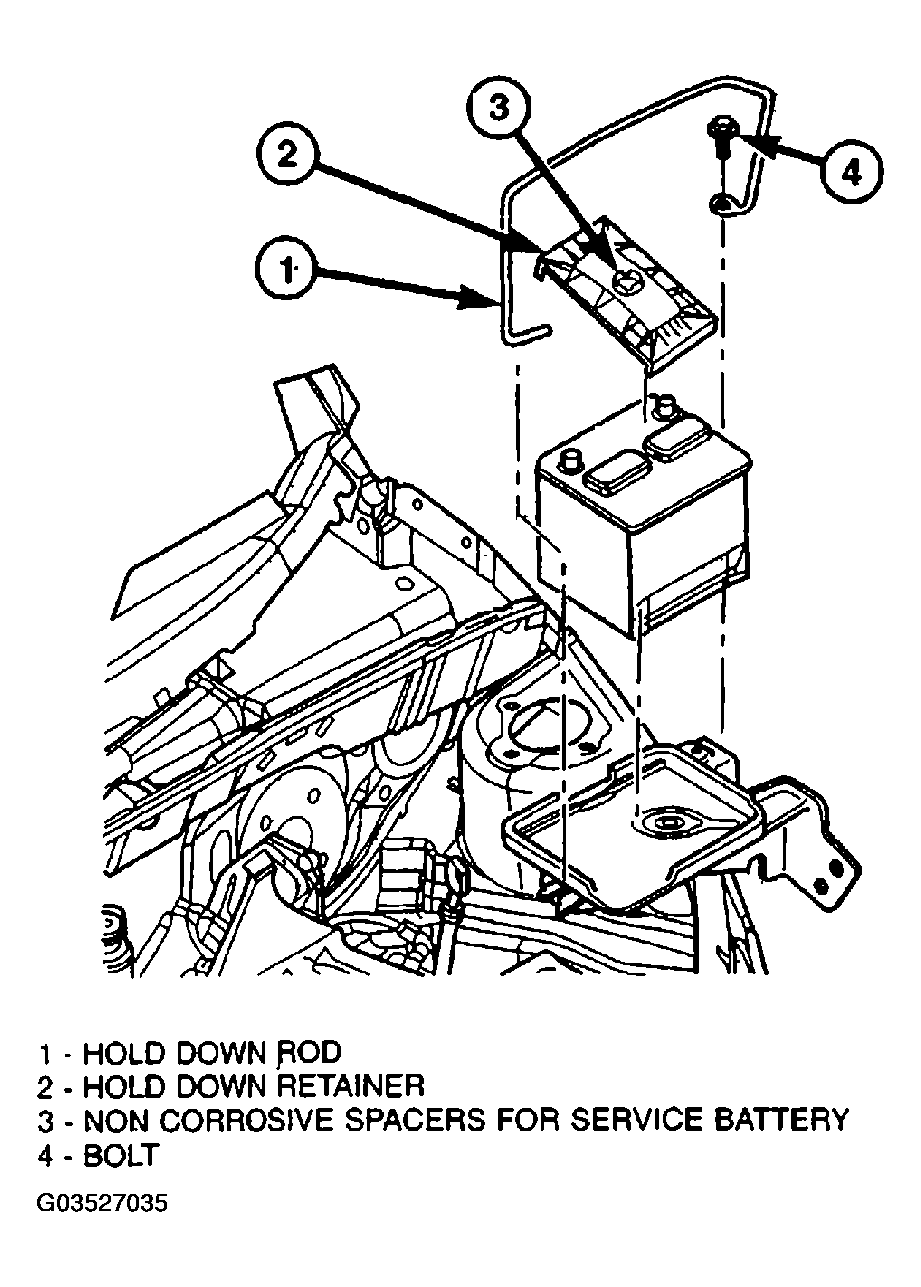

Fig 2: Installing Turbo Gasoline Engine
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the vent tube assembly by pulling the elbow straight forward from the battery vent ort.
Unclip the vent tubing assembly from the battery hold down strap. Note the position of the clip for installation reference.
Loosen bolt that holds the battery down to the tray and slide battery forward enough to access the battery temperature sensor (Fig 3 ). Remove the battery temperature sensor from the battery case (Fig 4 ) by pulling straight out.

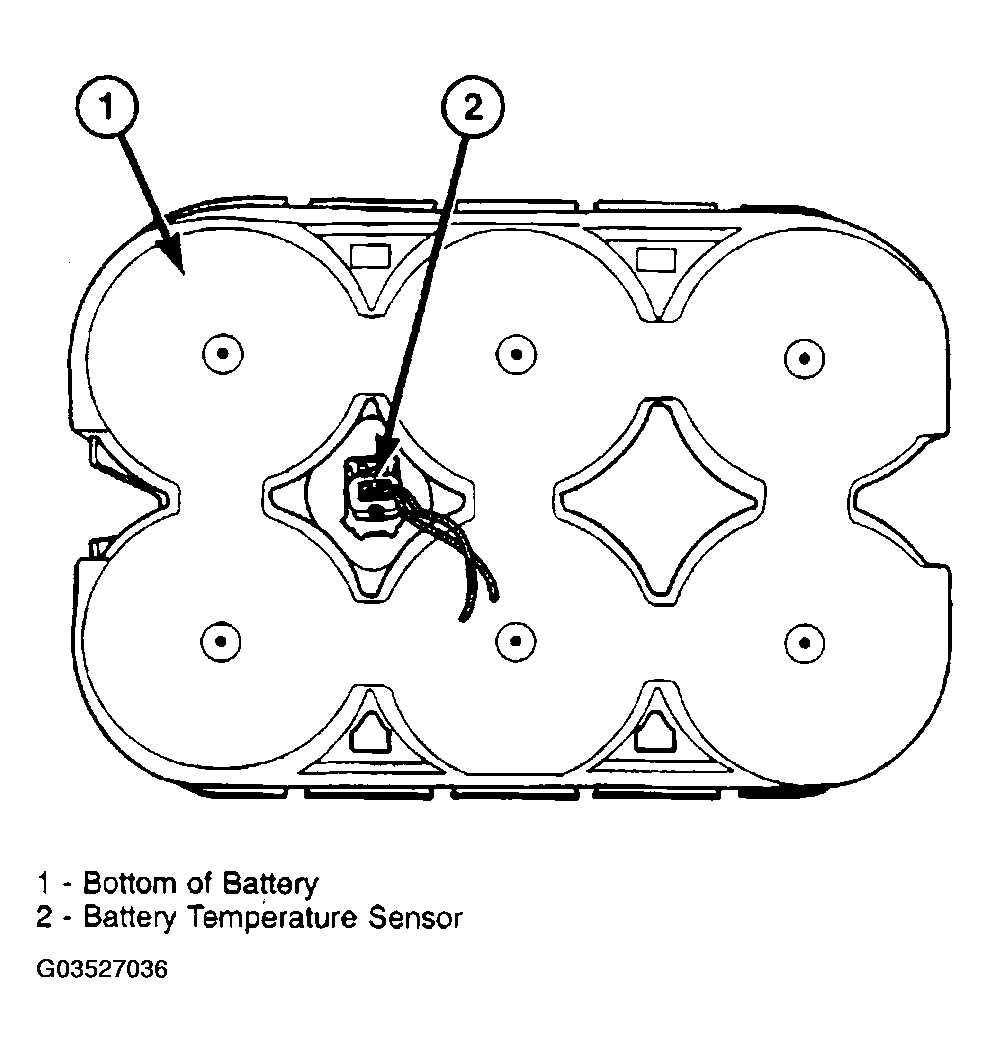

Fig 3: Identifying Bottom Of Battery
Courtesy of DAIMLERCHRYSLER CORP.

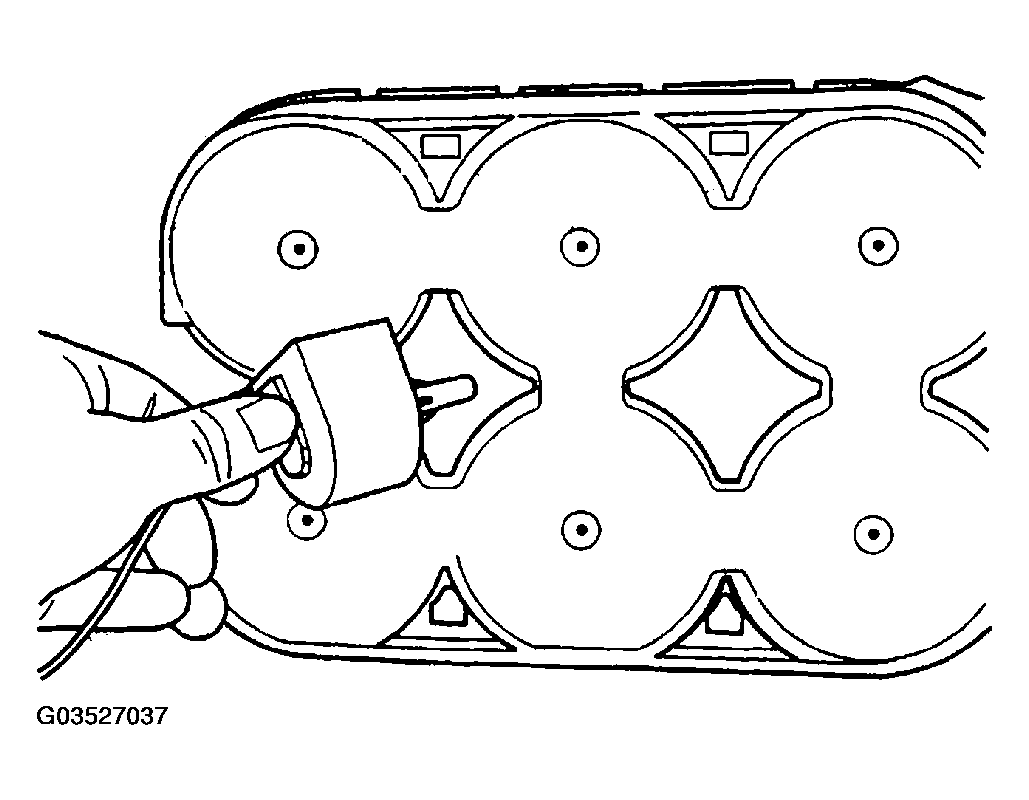

Fig 4: Removing Battery Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.

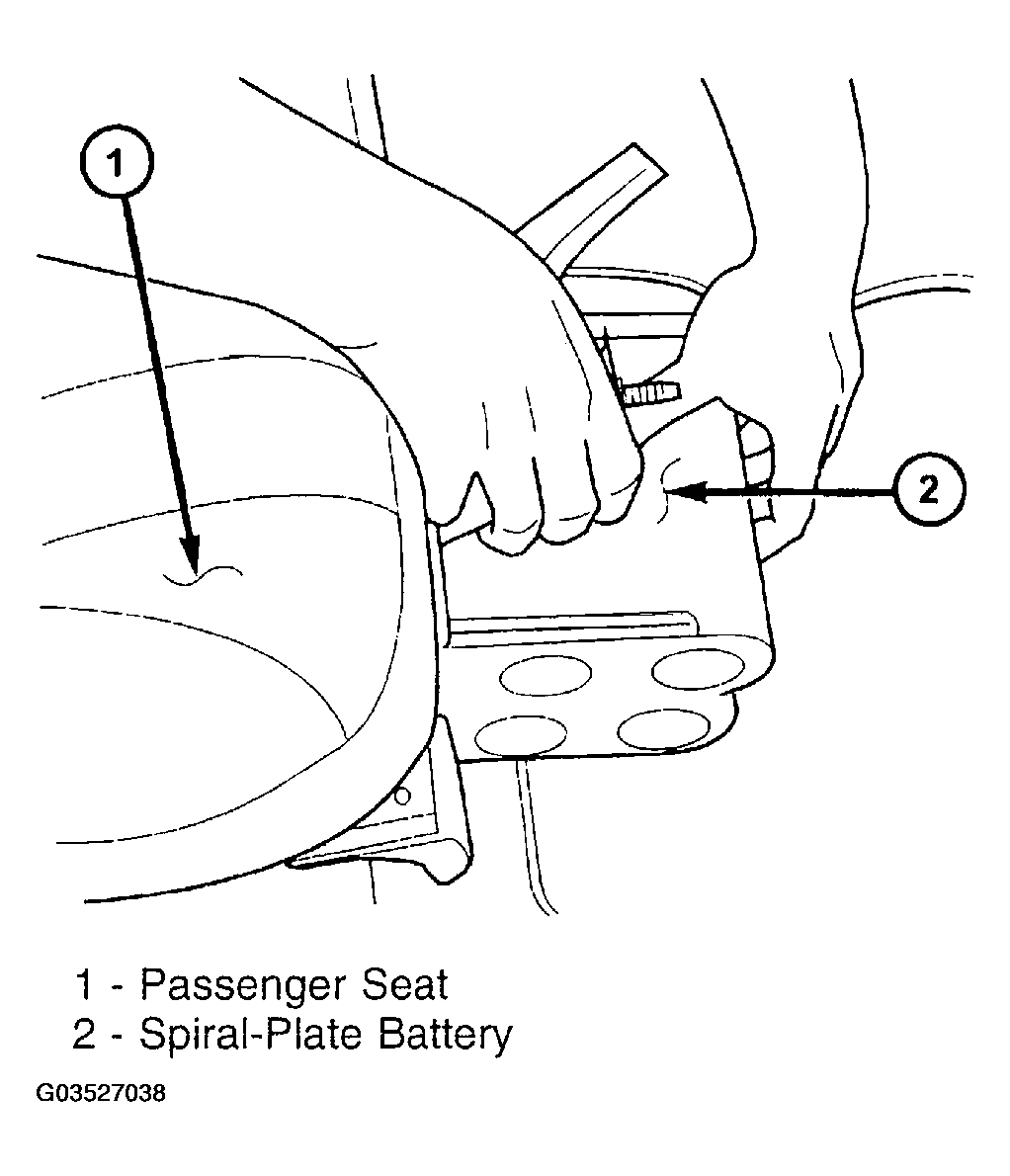

Fig 5: Removing Battery
Courtesy of DAIMLERCHRYSLER CORP.
Lift the battery retaining strap and pull the battery forward (Fig 5 ), in front of the passenger seat.
Disconnect and isolate the battery positive cable. Note the position of the battery positive cable for installation reference.
Remove the battery from the vehicle.

WARNING: DO NOT USE A CONVENTIONAL LEAD-ACID BATTERY IN PLACE OF THE FACTORY EQUIPPED SPIRAL-PLATE BATTERY. FAILURE TO USE A SEALED SPIRAL-PLATE BATTERY COULD RESULT IN ACID BEING RELEASED INSIDE THE PASSENGER COMPARTMENT AND PERSONAL INJURY.
