Map/Reading Lamps Connector End View

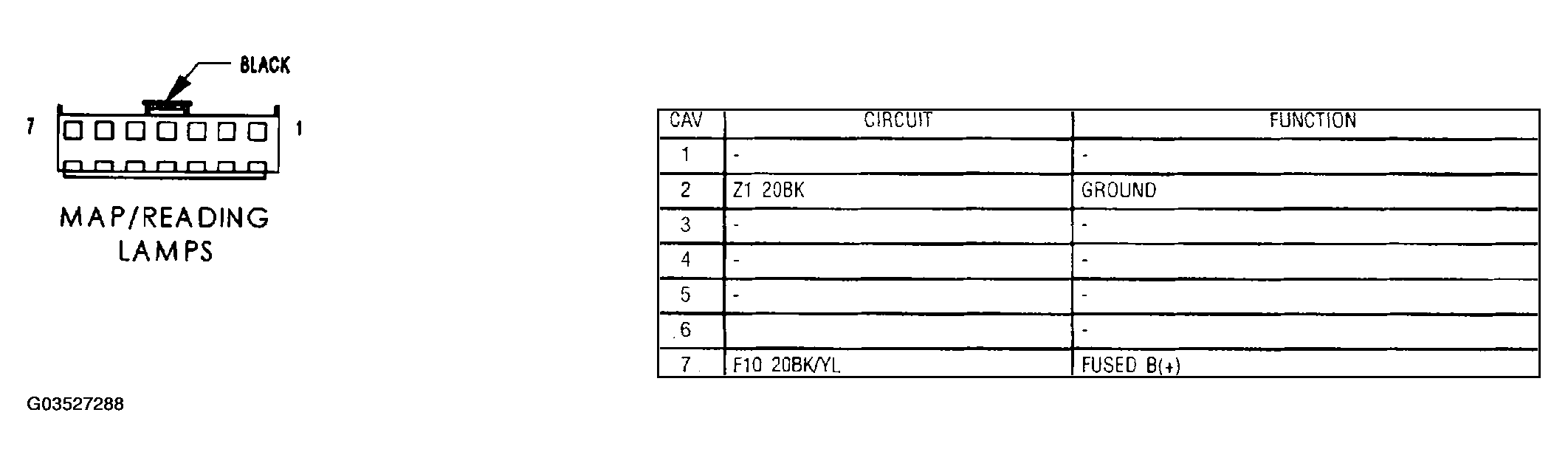

Fig 1: Map Lamps / Reading Lamps Connector End View

G03527288

Courtesy of DAIMLERCHRYSLER CORP.
