C110 Connector End View

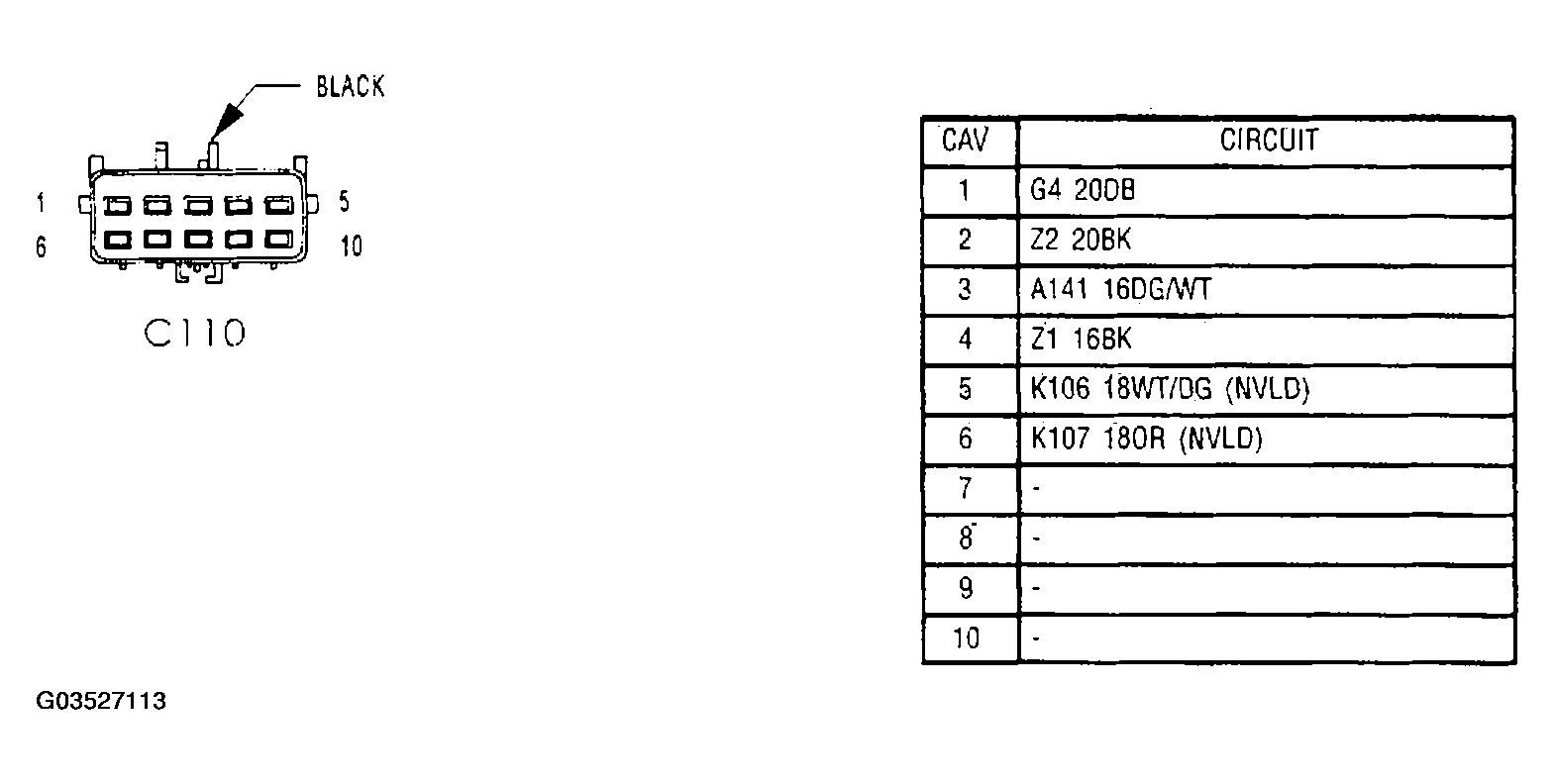

Fig 1: Headlamp & Dash Side Inline Connector End View (C110)
G03527113Courtesy of DAIMLERCHRYSLER CORP.

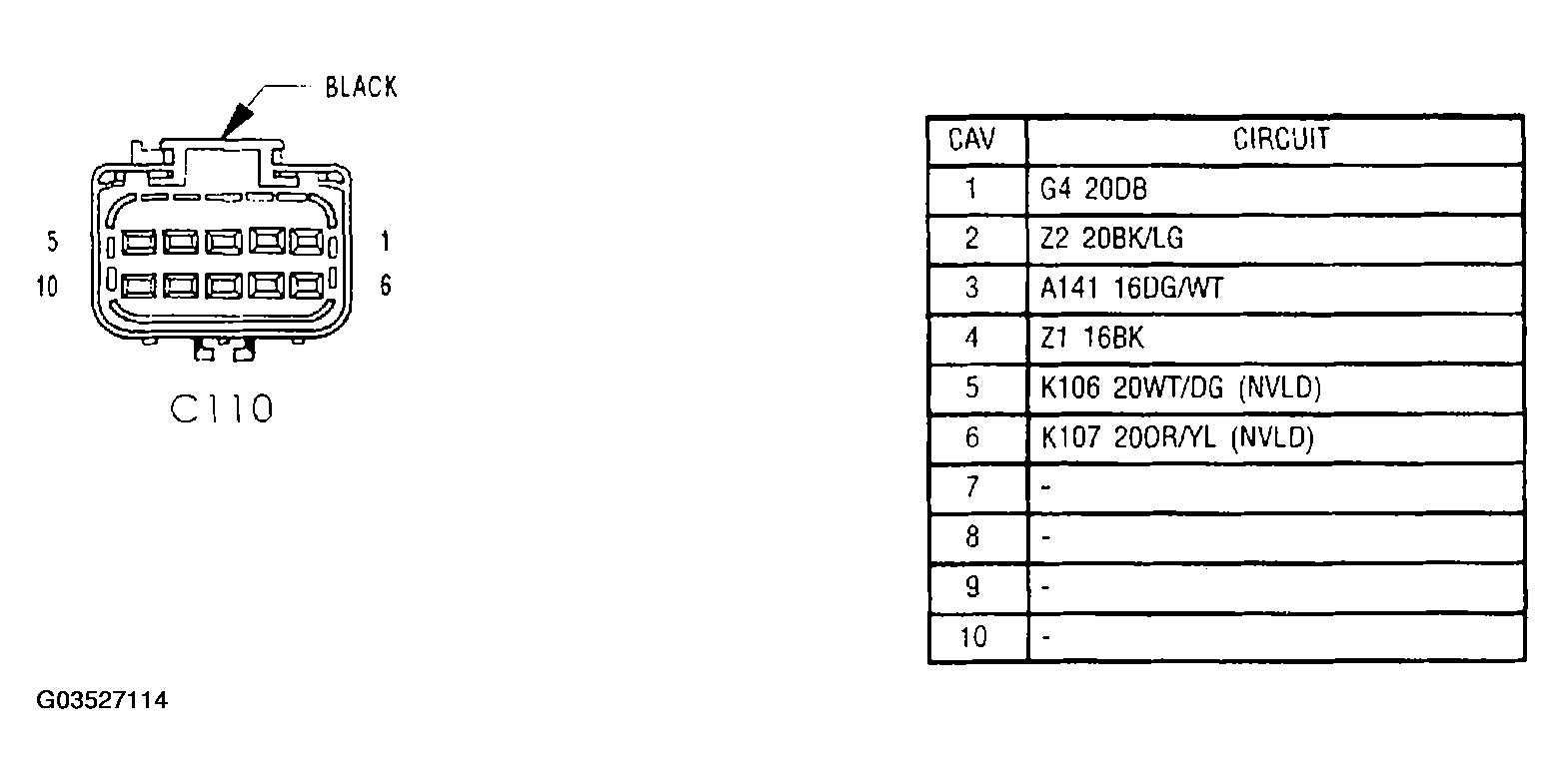

Fig 1: Underbody Side Inline Connector End View (C110)
G03527114Courtesy of DAIMLERCHRYSLER CORP.

C110
