*Checking Fuel Delivery: Testing

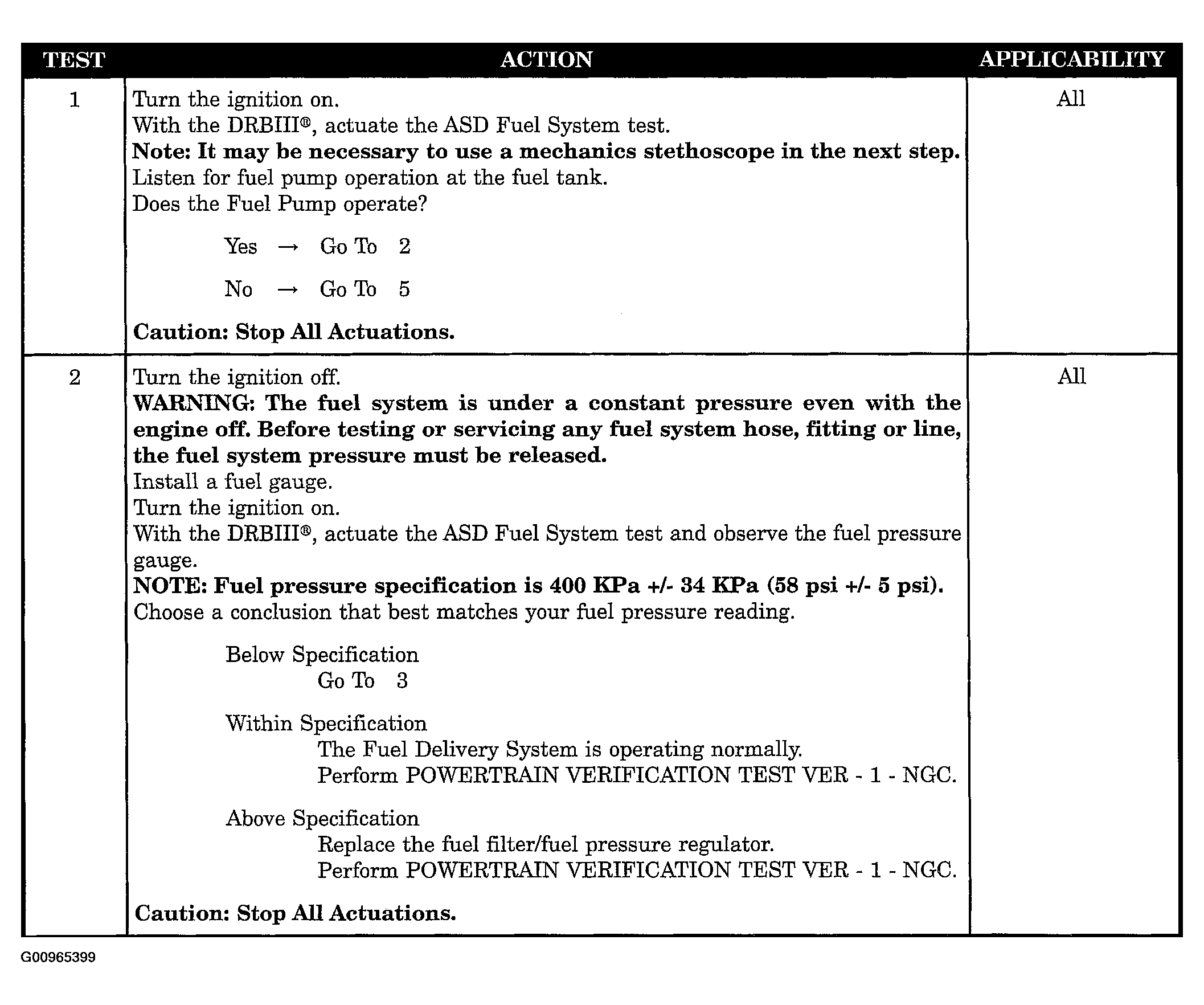

Fig 1: Testing: *Checking Fuel Delivery (1 Of 3)
G00965399Courtesy of DAIMLERCHRYSLER CORP.

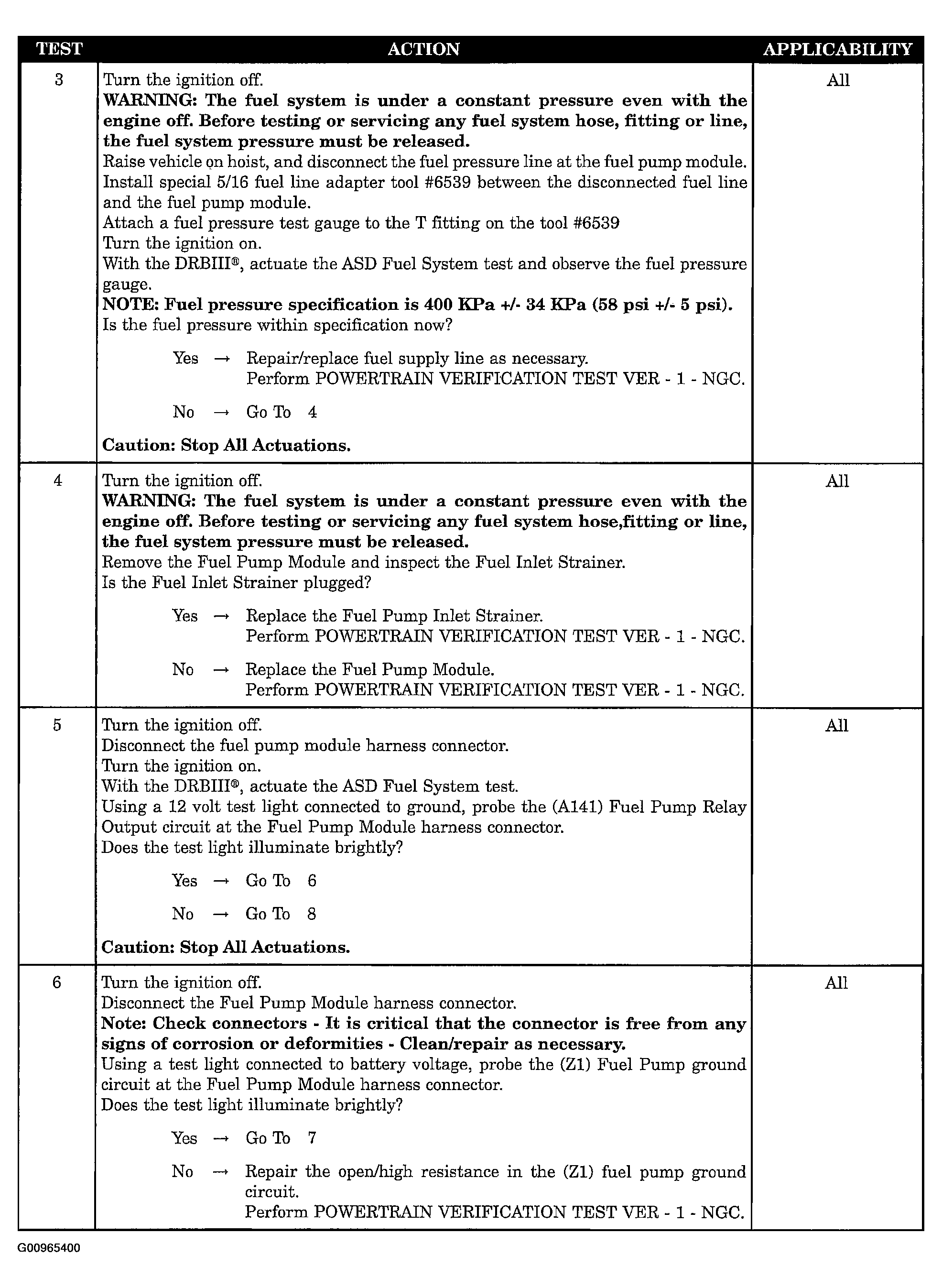

Fig 2: Testing: *Checking Fuel Delivery (2 Of 3)
G00965400Courtesy of DAIMLERCHRYSLER CORP.

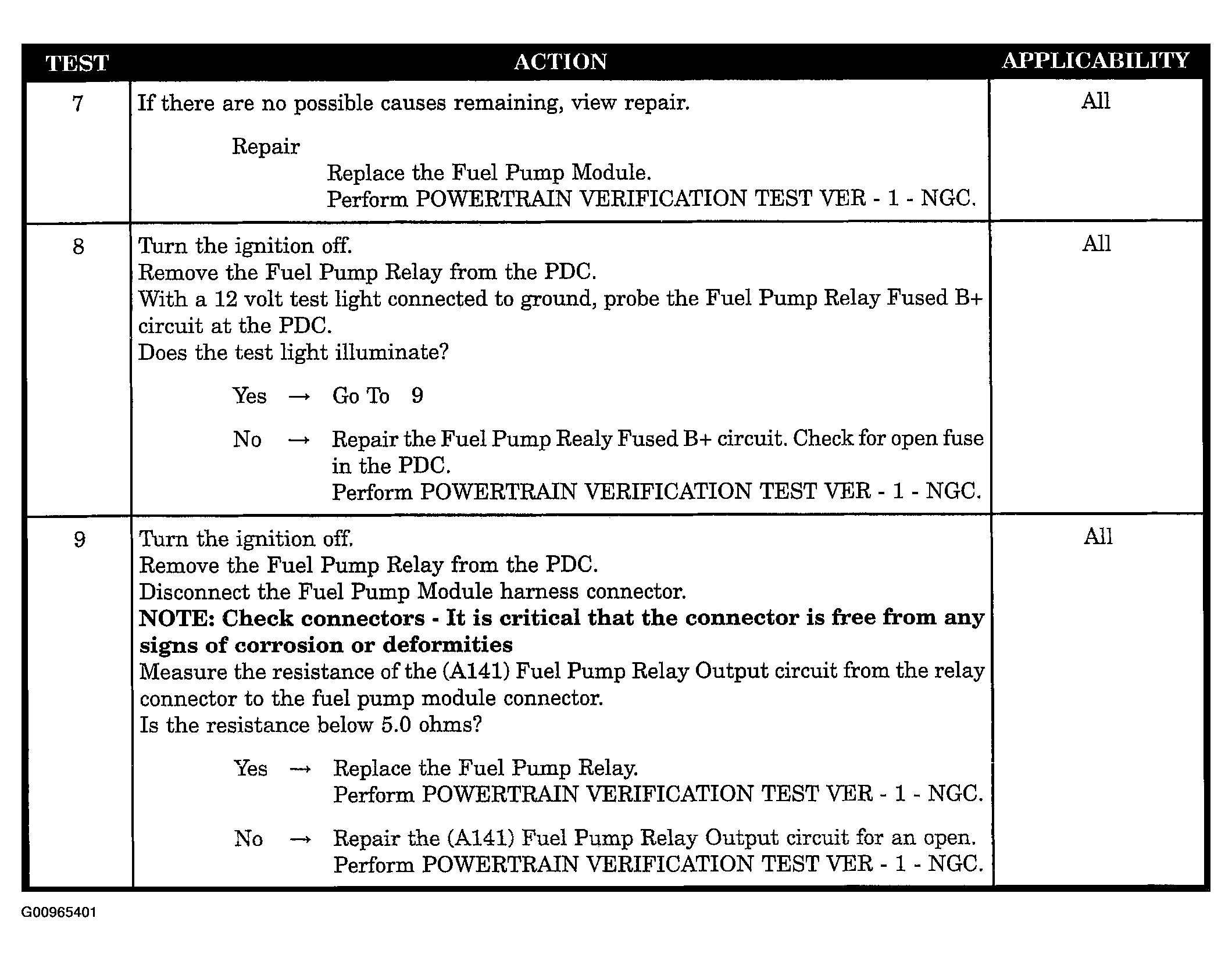

Fig 3: Testing: *Checking Fuel Delivery (3 Of 3)
G00965401Courtesy of DAIMLERCHRYSLER CORP.
