Home >> Chrysler >> 2004 >> PT Cruiser Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Diagnostics >> Diagnostic Information & Procedures >> DRIVEABILITY - NGC >> DTC P0580: Speed Control Switch #1 Low >> Testing

DTC P0580: Speed Control Switch #1 Low: Testing

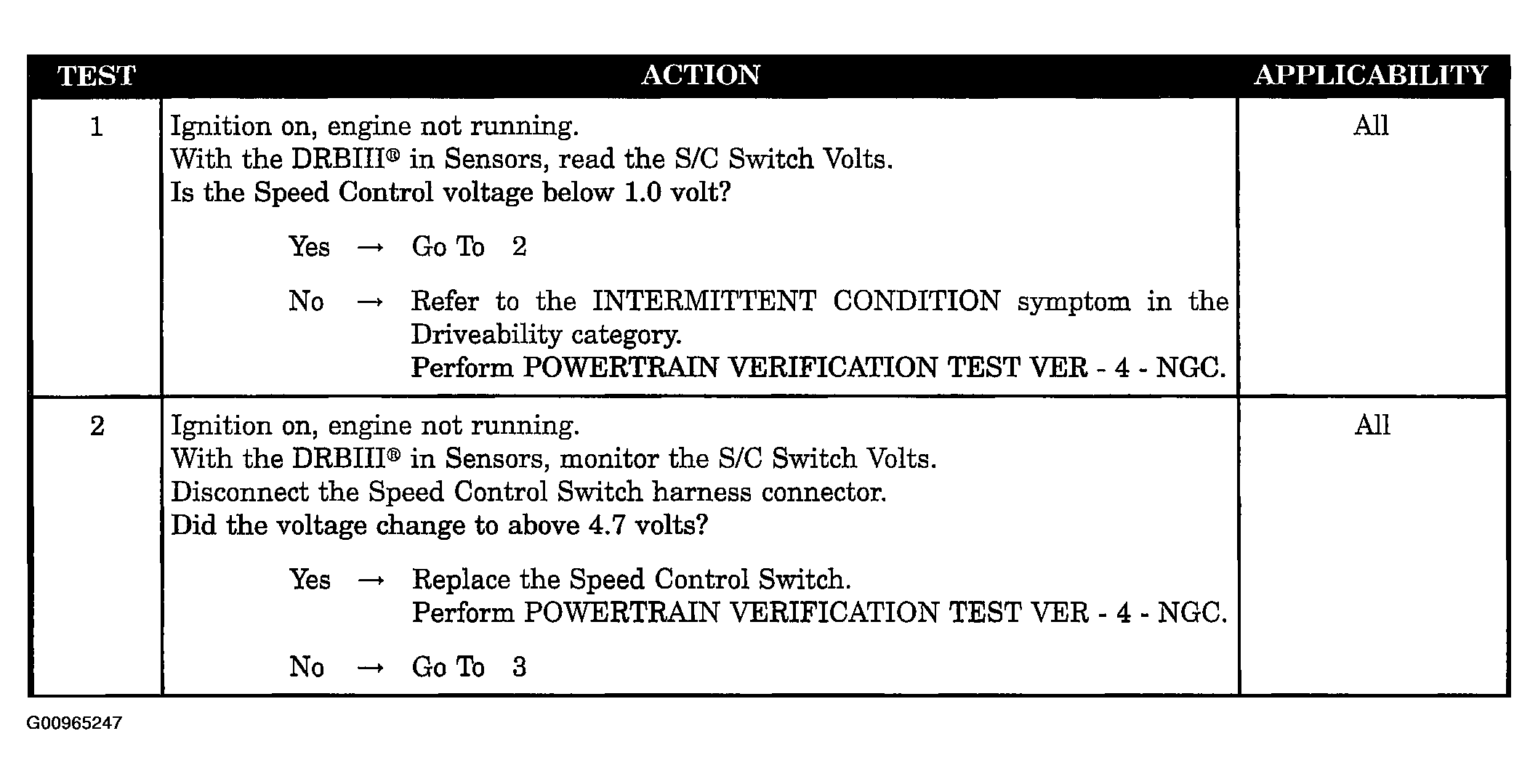

Fig 1: Testing: Speed Control Switch #1 Low (1 Of 2)
G00965247Courtesy of DAIMLERCHRYSLER CORP.

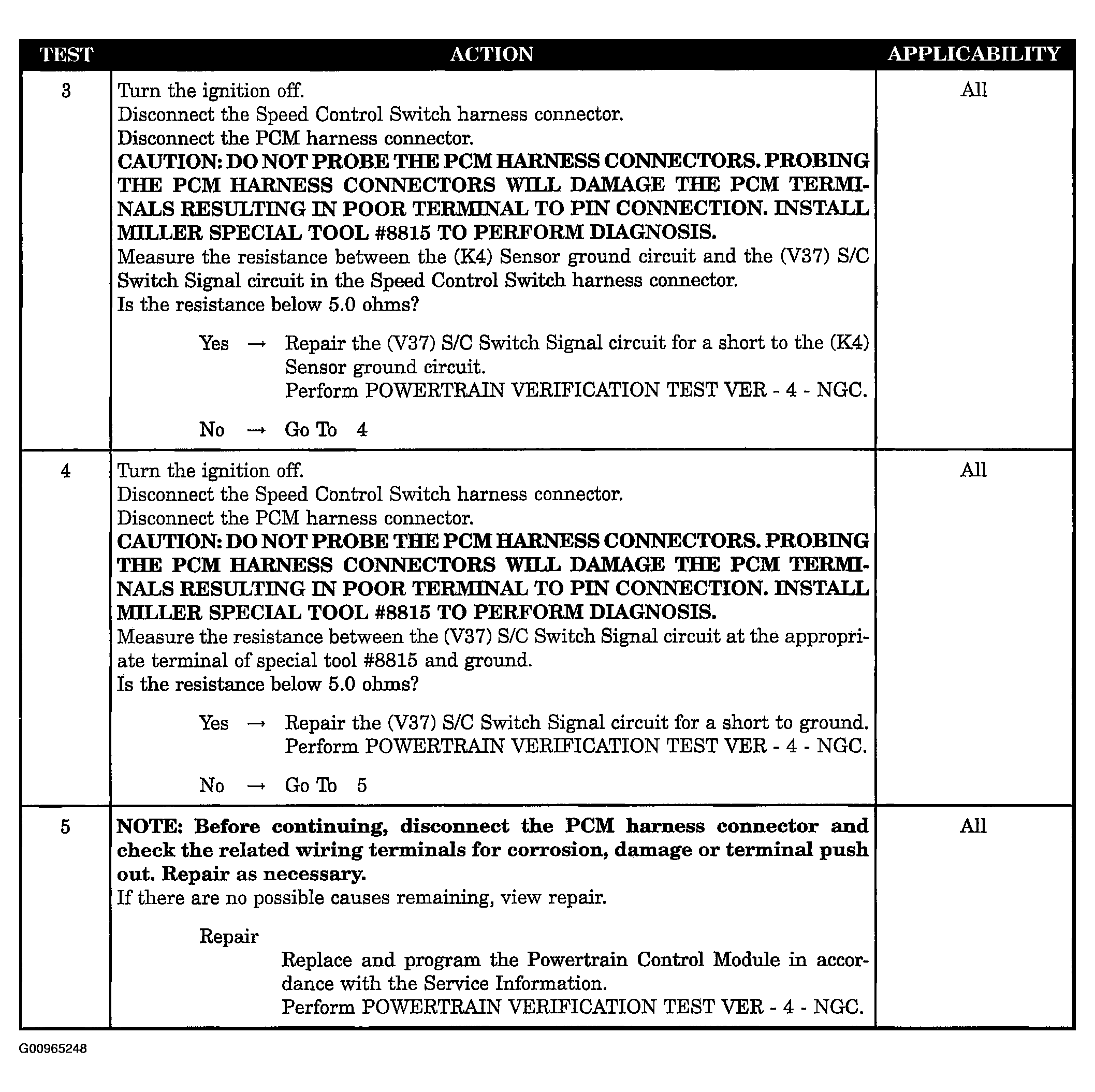

Fig 2: Testing: Speed Control Switch #1 Low (2 Of 2)
G00965248Courtesy of DAIMLERCHRYSLER CORP.
