DTC P0441: EVAP Purge System Performance: Testing

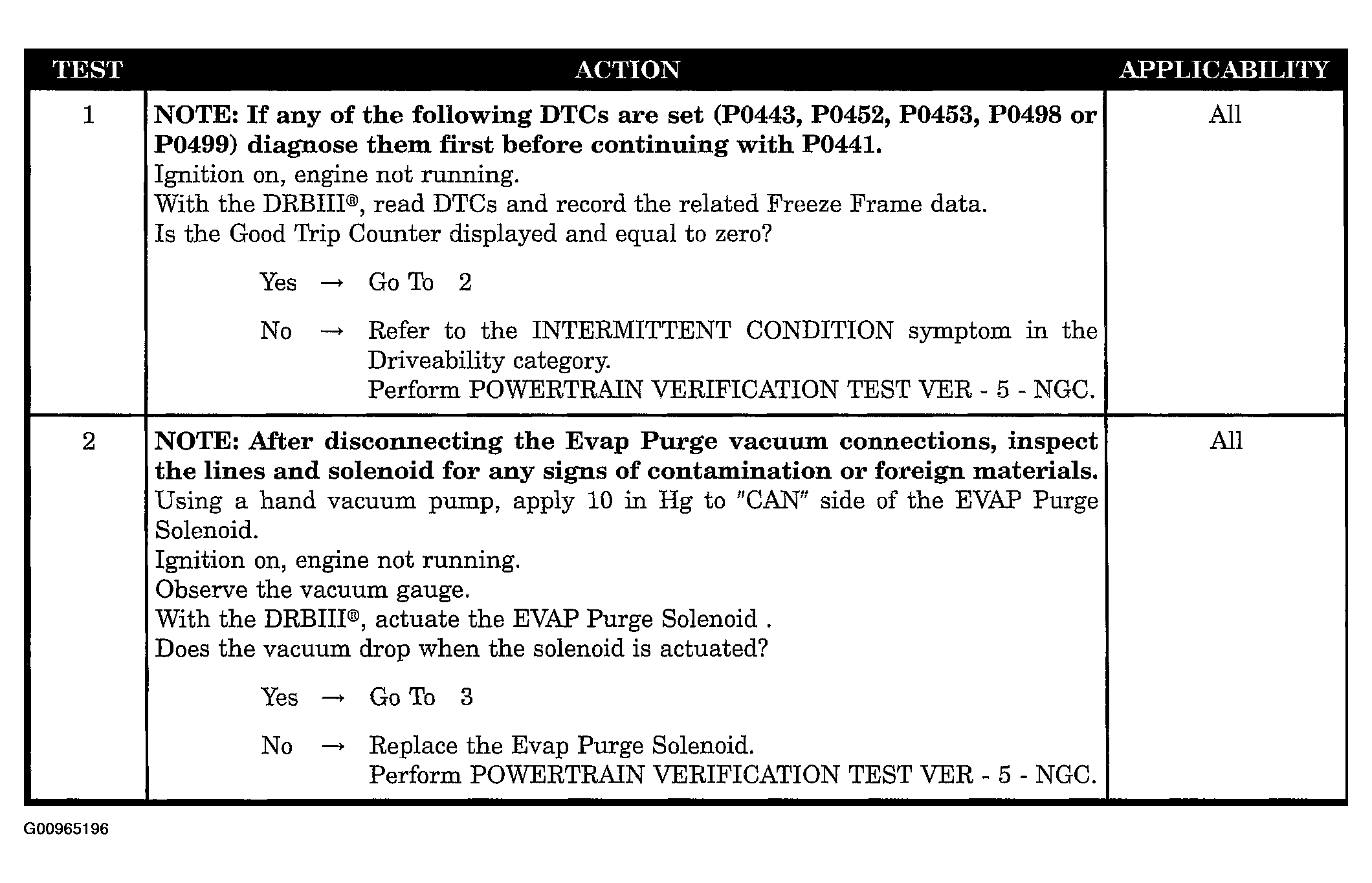

Fig 1: Testing: EVAP Purge System Performance (1 Of 2)
G00965196Courtesy of DAIMLERCHRYSLER CORP.

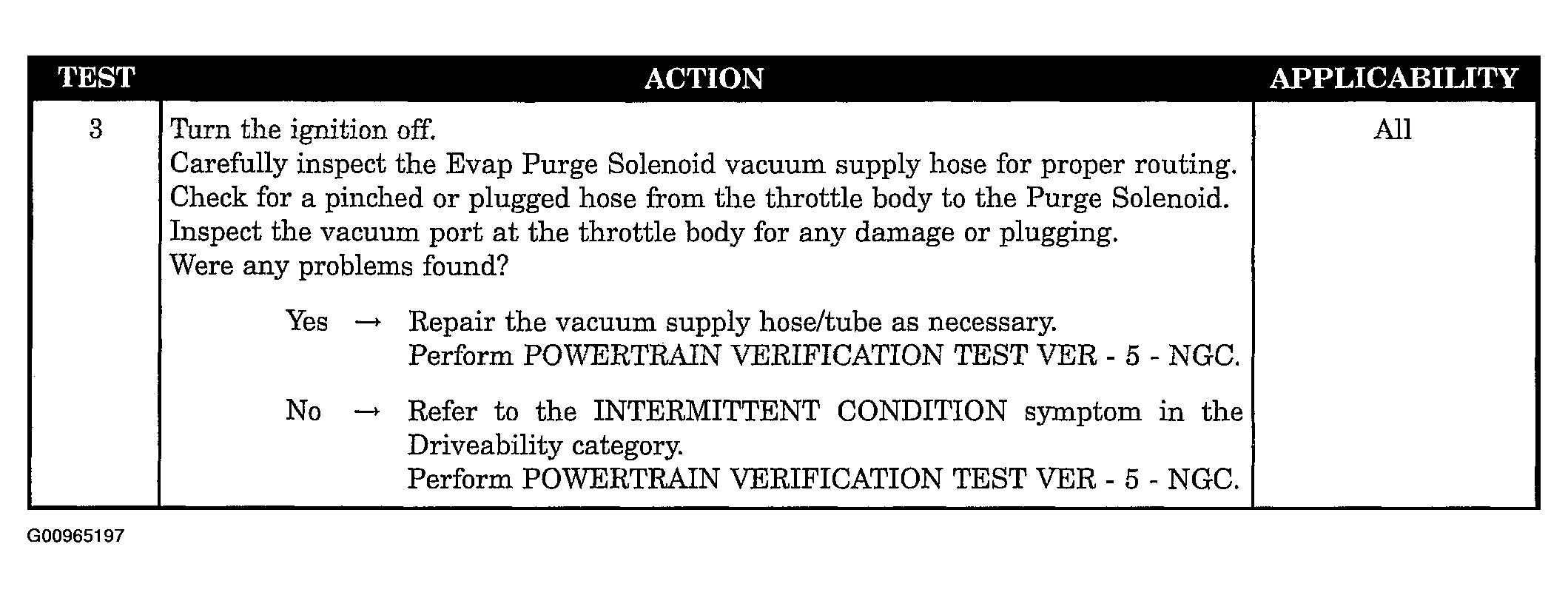

Fig 2: Testing: EVAP Purge System Performance (2 Of 2)
G00965197Courtesy of DAIMLERCHRYSLER CORP.
