Removal - 1.6L

If any components on the throttle body are bad, the throttle body has to be replaced, except the seal to the intake manifold. There is no serviceable component on the throttle body.

1. Remove air cleaner cover.
2. Disconnect the negative battery cable.
3. Disconnect the electrical connector.

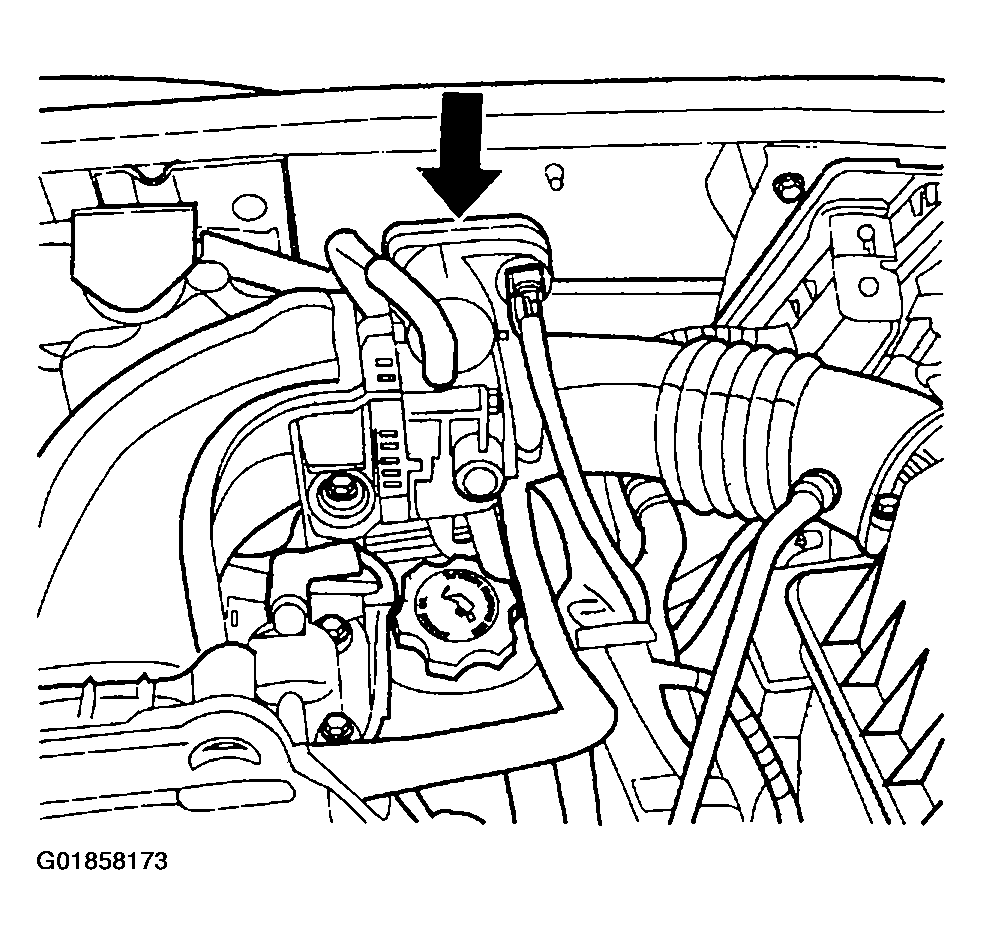

   Fig 1: Disconnecting Throttle Body Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove the purge hose from throttle body.
5. Remove the 4 bolts from throttle body.

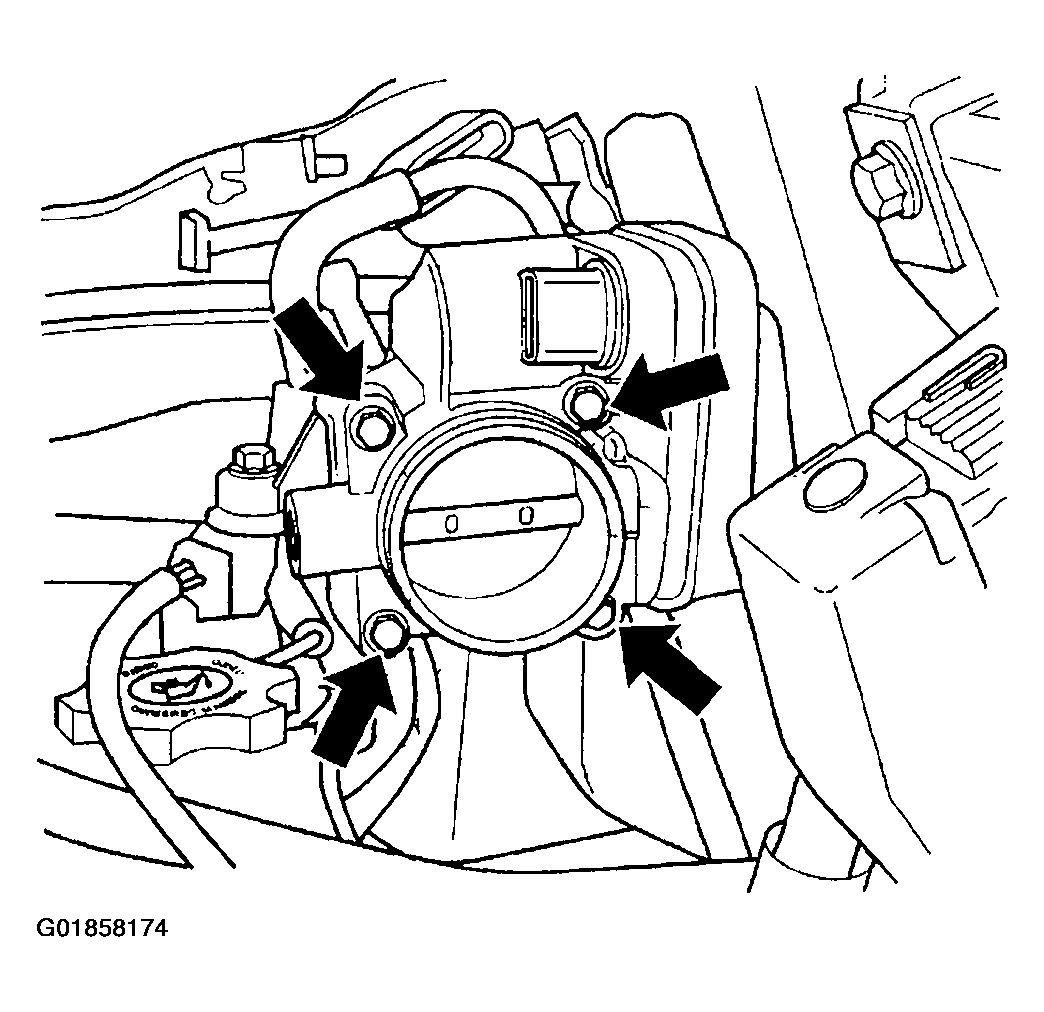

   Fig 2: Removing Throttle Body Bolts

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove throttle body.
