Fuel Tank Filler Tube: Removal

Remove the air cleaner lid and makeup air hose.
Remove the negative battery cable.
Loosen fuel filler tube cap.

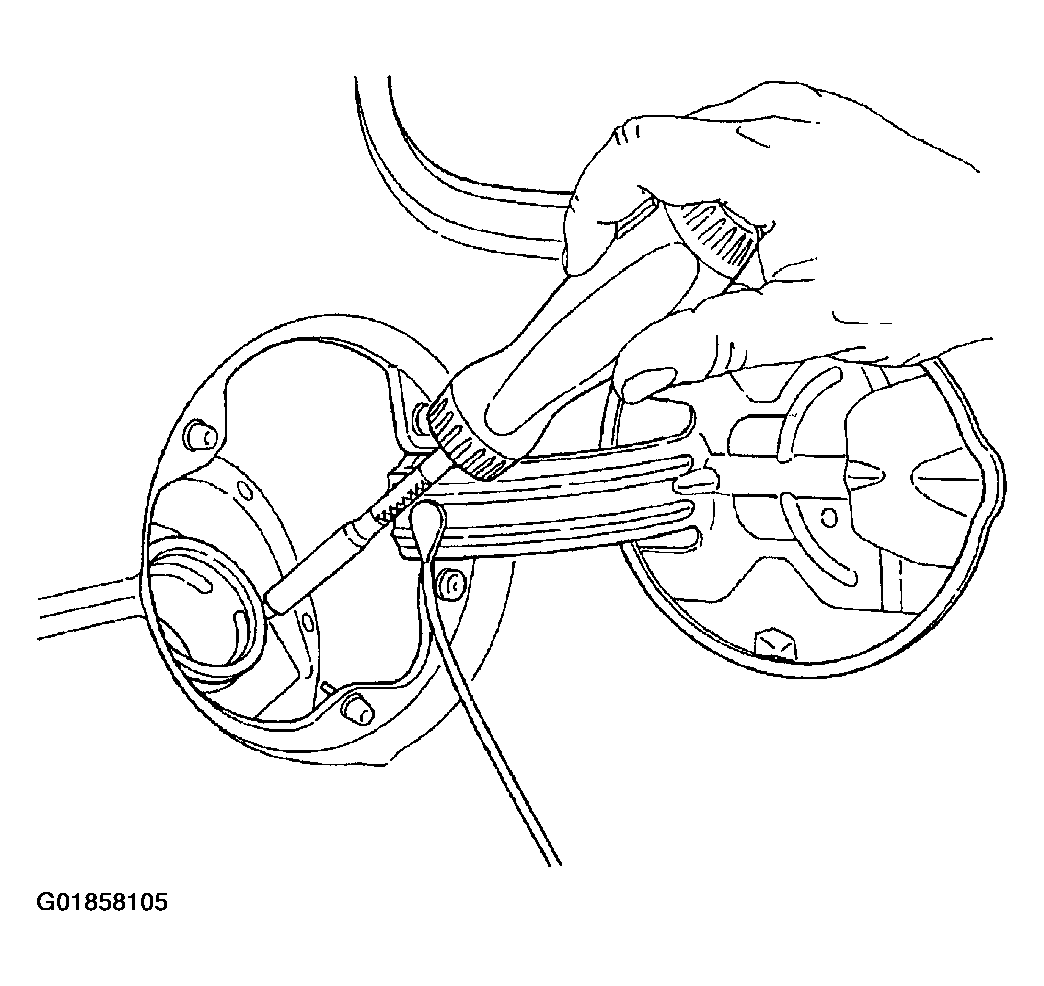

Fig 1: Loosening Fuel Filler Cap
Courtesy of DAIMLERCHRYSLER CORP.
Remove fuel filler neck screws.

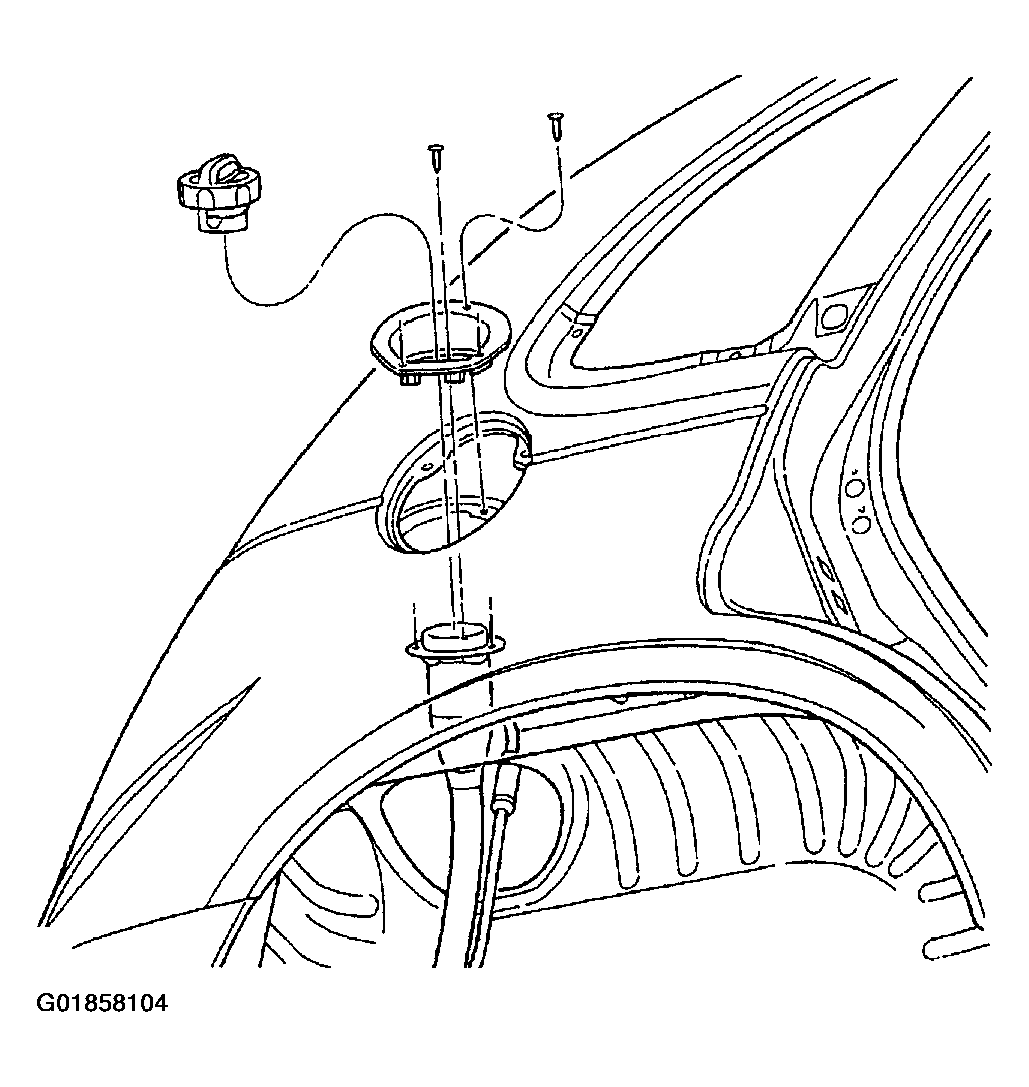

Fig 2: Removing & Installing Fuel Filler Neck
Courtesy of DAIMLERCHRYSLER CORP.
Raise vehicle and support.
Remove the right rear wheel.

NOTE: Drain fuel tank if it is more than half full.

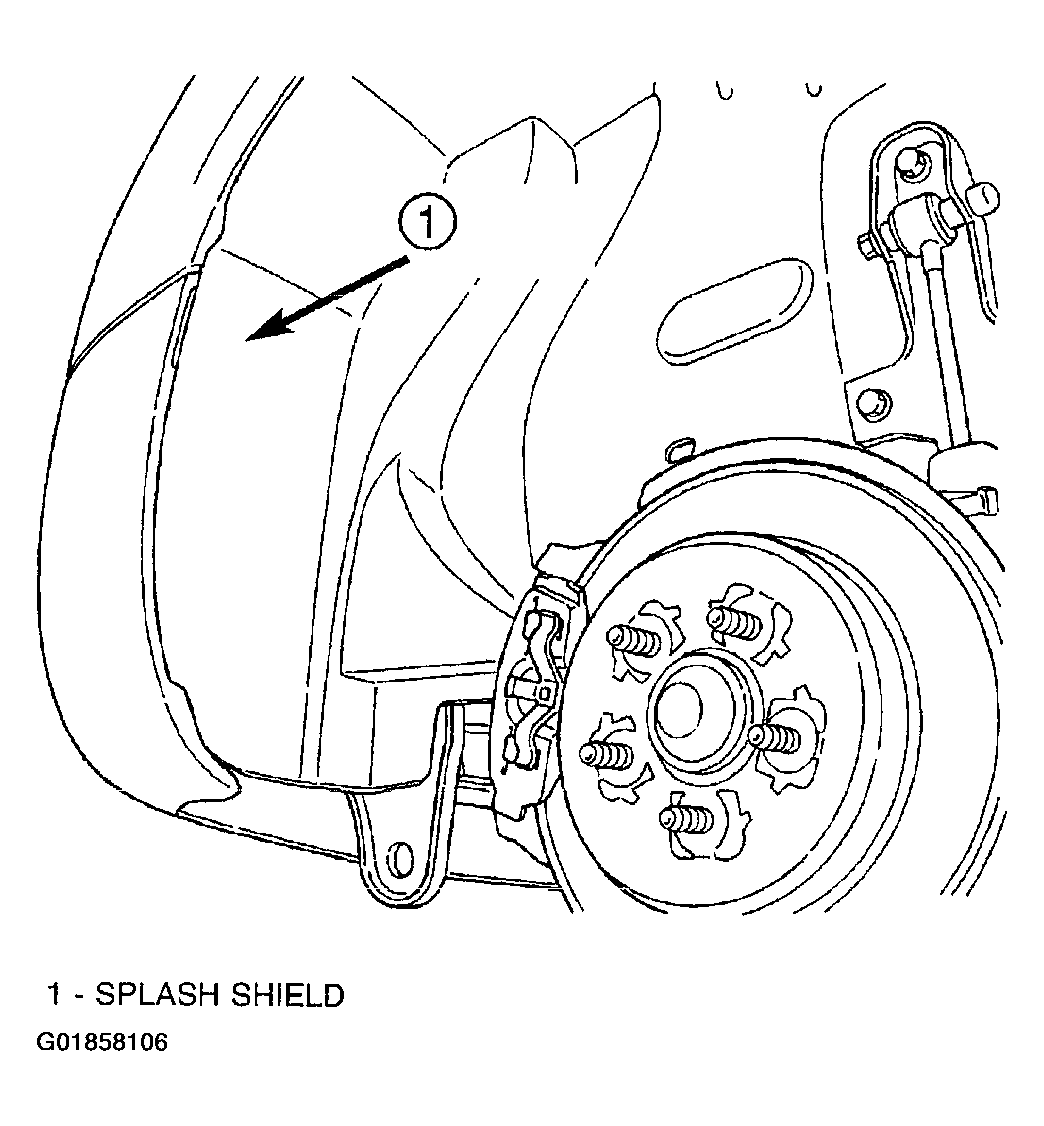

Fig 3: Removing Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

Remove the rear half of the inner splash shield.
Disconnect fuel filler tube hose from fuel tank neck. Remove fuel filler tube assembly.

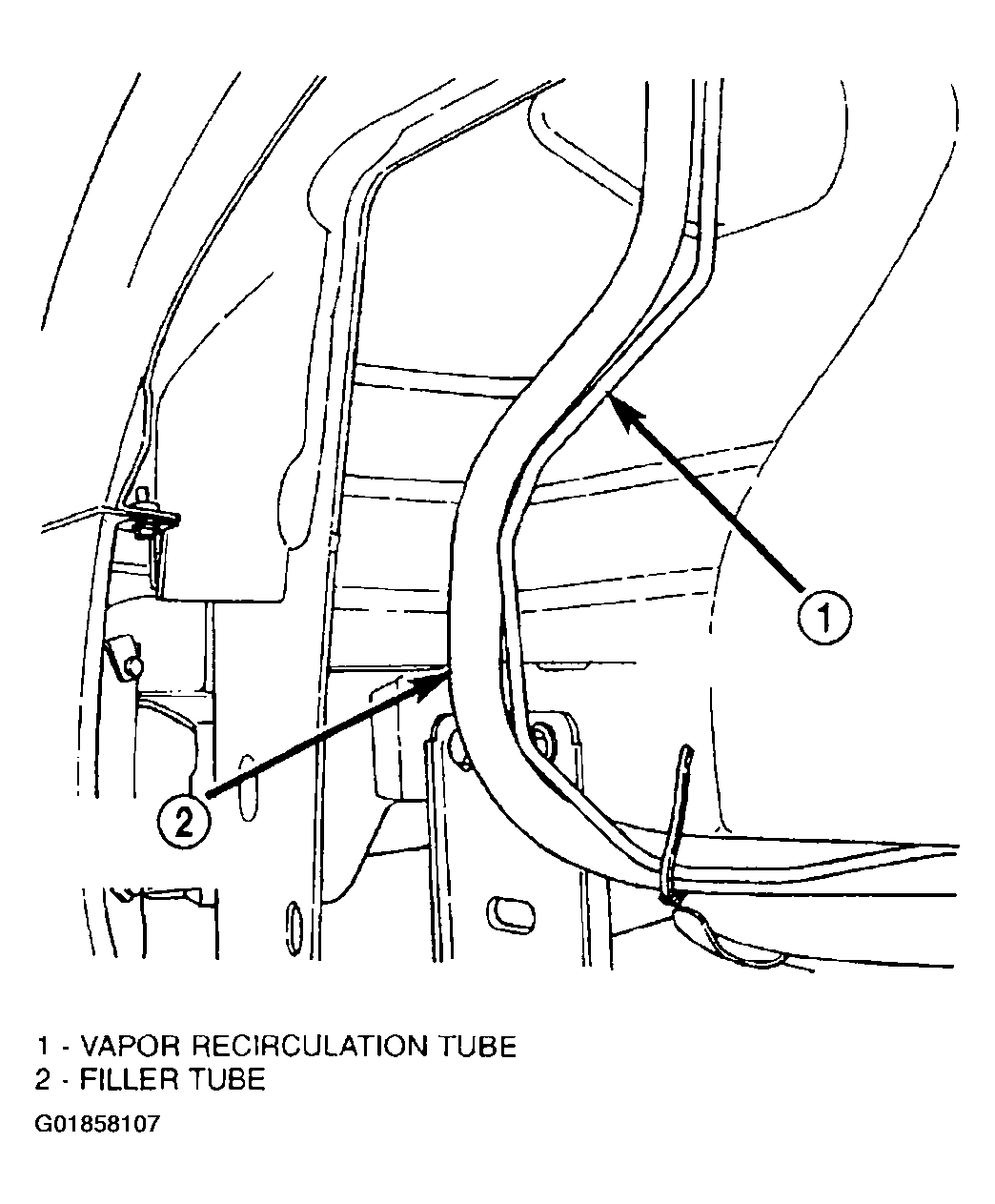

Fig 4: Disconnecting Fuel Filler Tube Hose From Fuel Tank Neck
Courtesy of DAIMLERCHRYSLER CORP.
