Fuel Rail: Removal: 1.6L

WARNING: RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING FUEL SYSTEM COMPONENTS. SERVICE VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVICING THE VEHICLE. THIS MAY RESULT IN PERSONAL INJURY OR DEATH.

Remove air cleaner assembly cover.
Disconnect the negative battery cable.
Disconnect the electrical connectors from the fuel injectors.

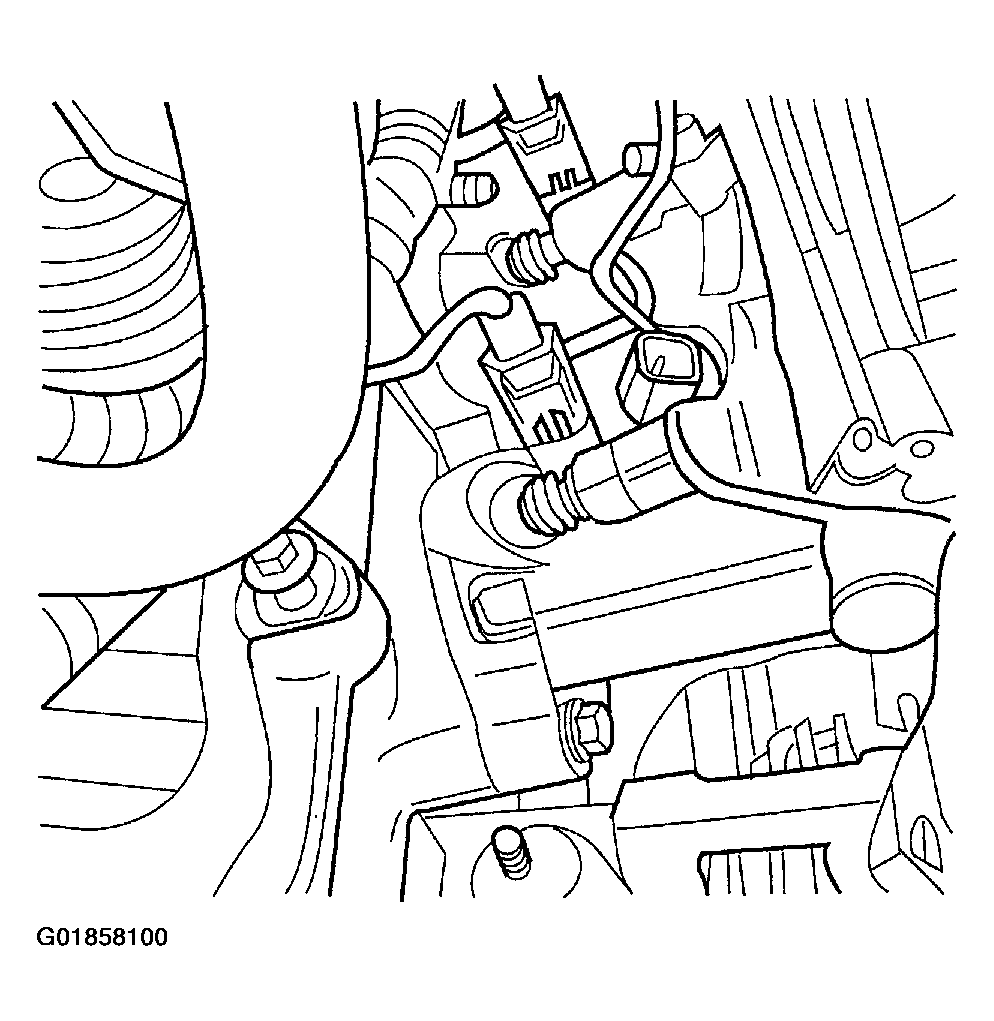

Fig 1: Disconnecting Injector Connector & Wiring Harness
Courtesy of DAIMLERCHRYSLER CORP.
Remove the wiring harness from the fuel rail brackets.
Remove the fuel line from the fuel rail.

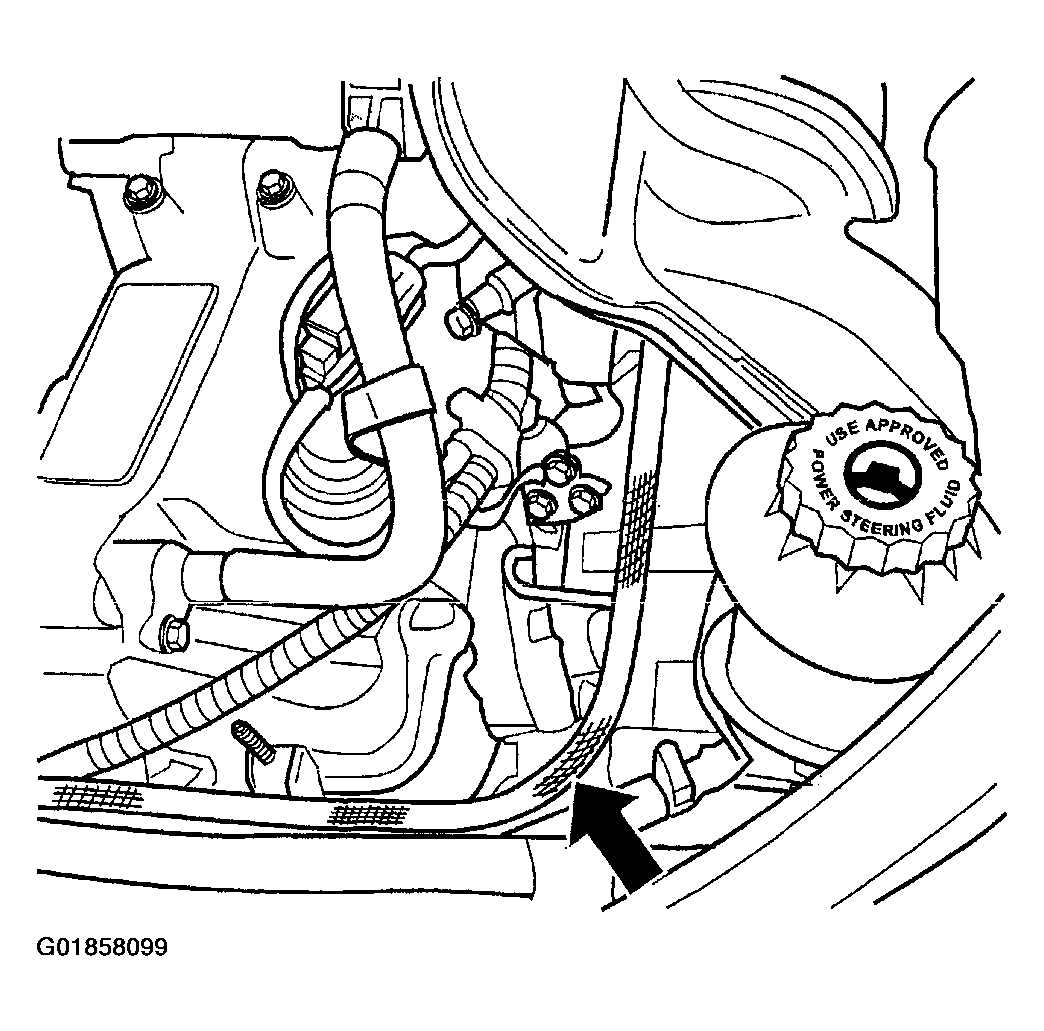

Fig 2: Removing Fuel Line
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 2 bolts to the fuel rail at the lower manifold.
Remove the fuel rail.

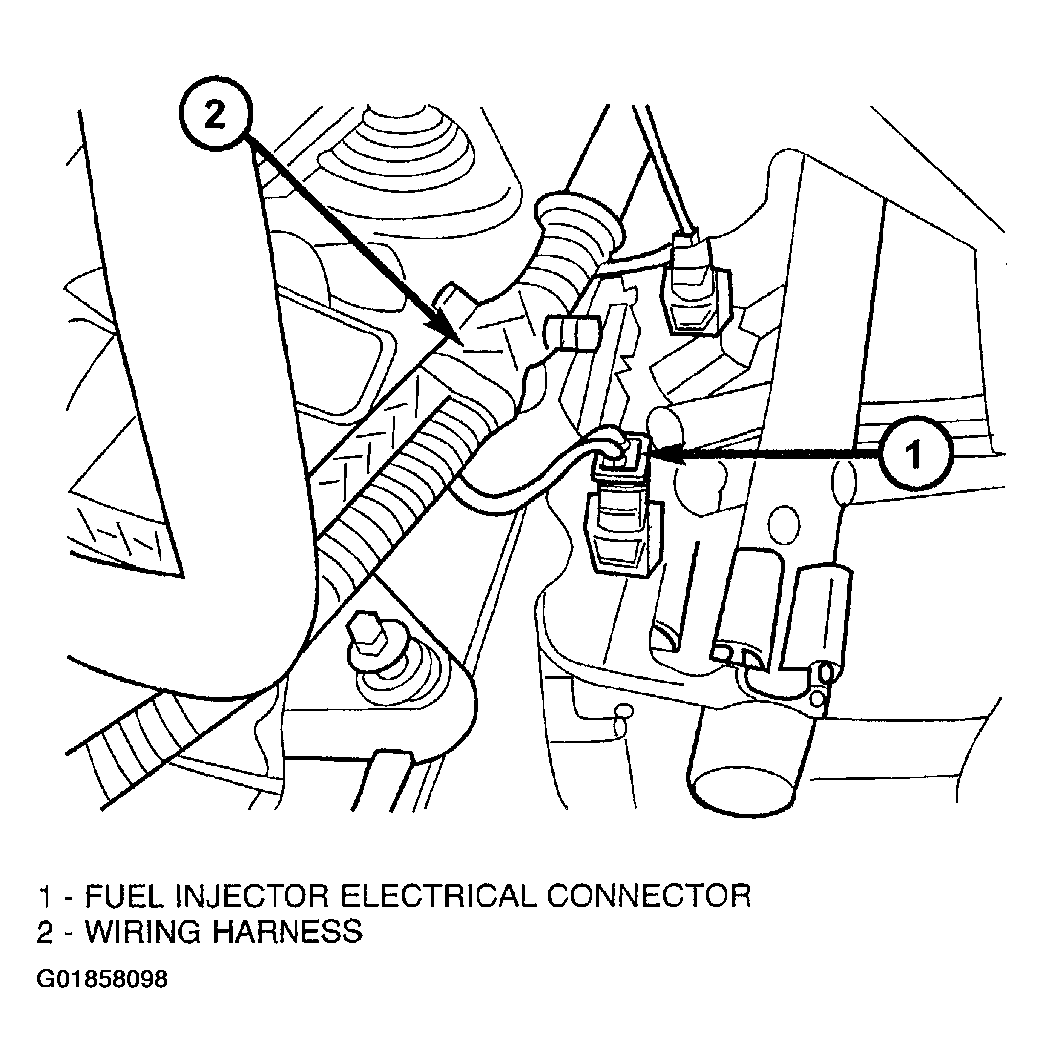

Fig 3: Removing Fuel Rail & Fuel Injector
Courtesy of DAIMLERCHRYSLER CORP.
Remove the fuel injectors from the rail.
