Installation - 1.6L

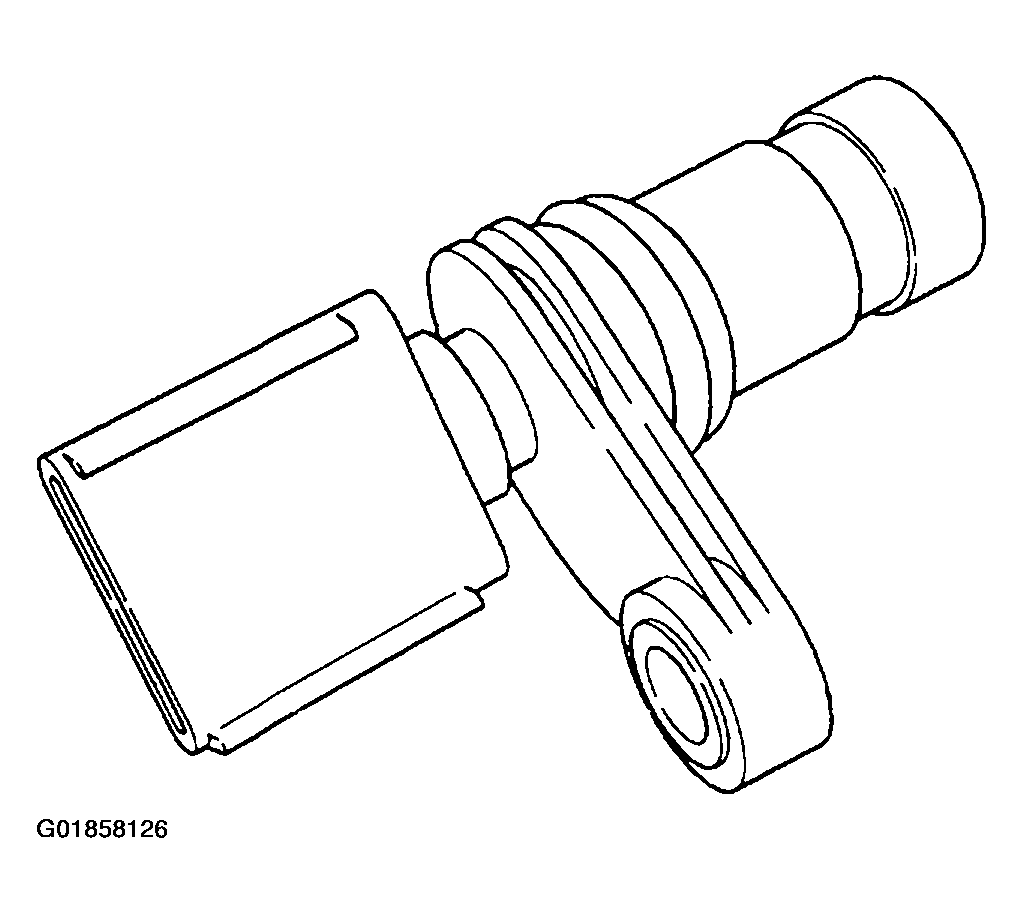

  1. Install the Crankshaft sensor. See Figure.
  2. Install bolt and tighten to 10 N.m (90 in. lbs.).

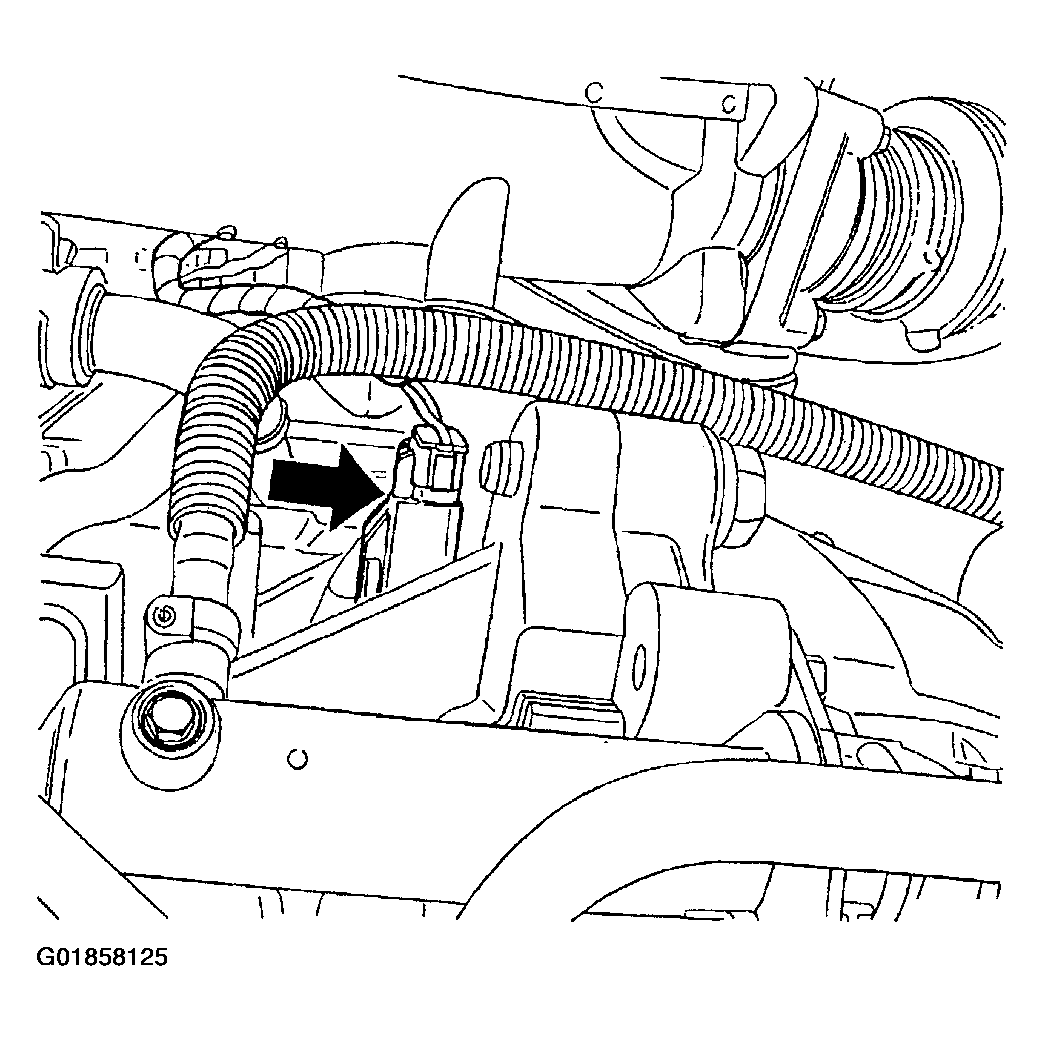

  3. Connect the electrical connector. See Figure.
  4. Lower vehicle.
  5. Connect the negative battery cable.
