Removal - LHD

  1. Remove the air cleaner cover.
  2. Disconnect the negative battery cable.
  3. Unlock the electrical connector and then disconnect the electrical connector from the module.

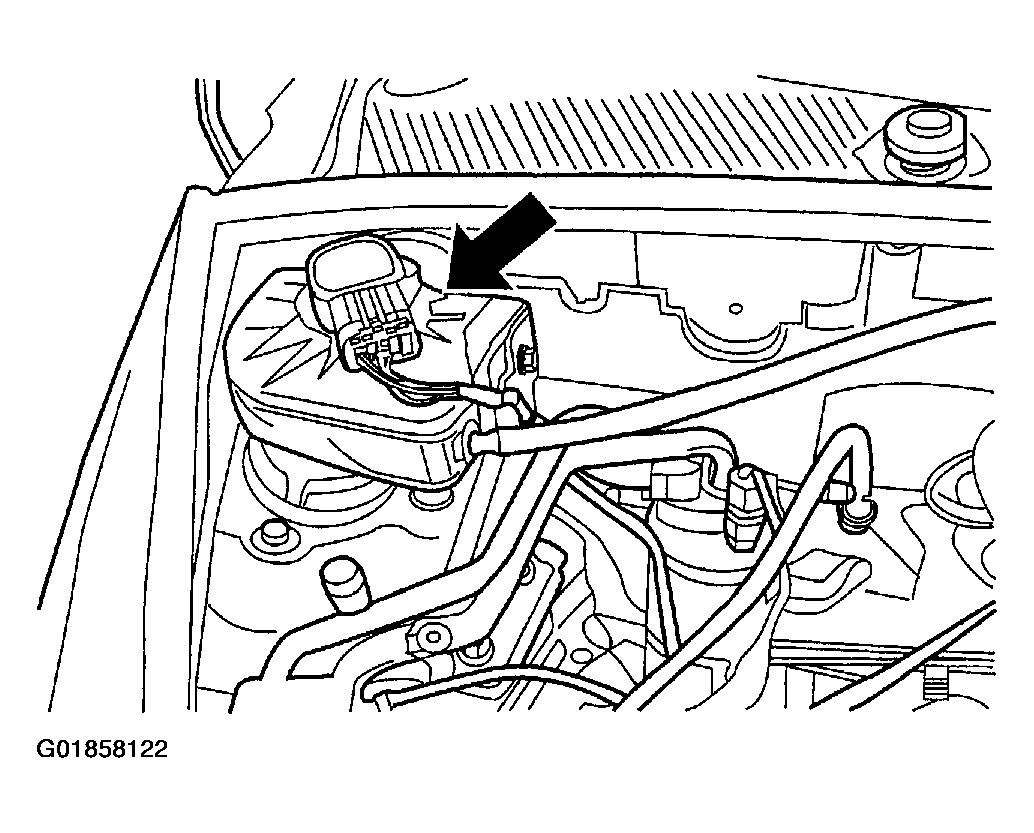

    Fig 1: Locating Pedal Position Sensor
    G01858122Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the mounting bolt.
  5. Remove assembly from the mounting bracket.
  6. Open the APPS module cover and disconnect the cable from the cam and module.
