Left Headlamp Leveling Module (Export) Connector End View

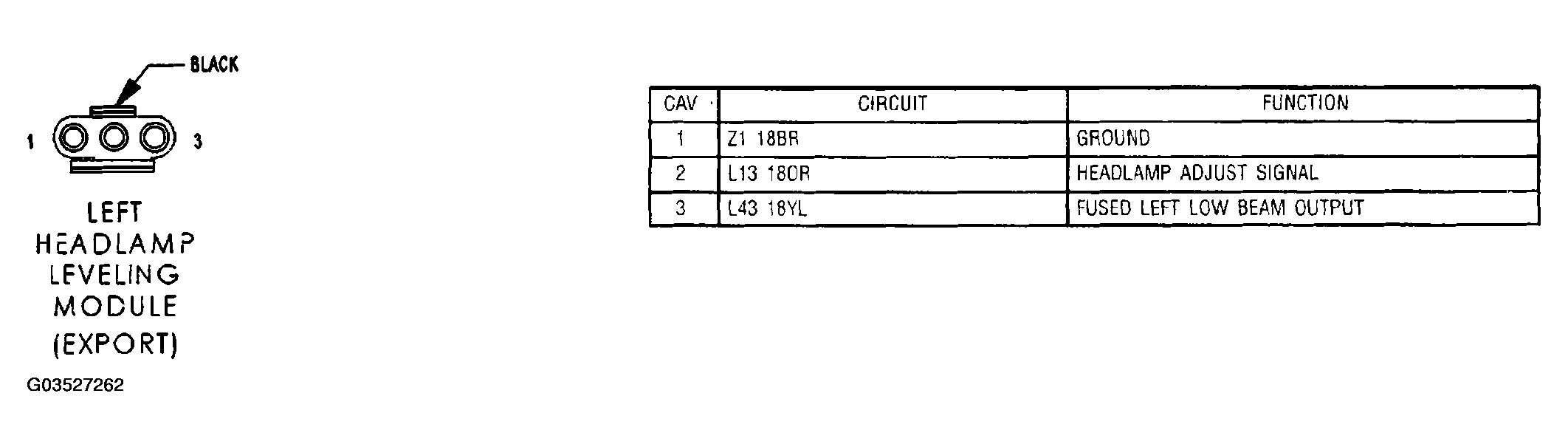

Fig 1: Left Headlamp Leveling Module (Export) Connector End View

G03527262

Courtesy of DAIMLERCHRYSLER CORP.
