Starter Motor: Removal: 2.0/2.4L

  1. Open Hood.
  2. Remove air cleaner box cover. Refer to BODY article.
  3. Disconnect and isolate the battery negative cable .

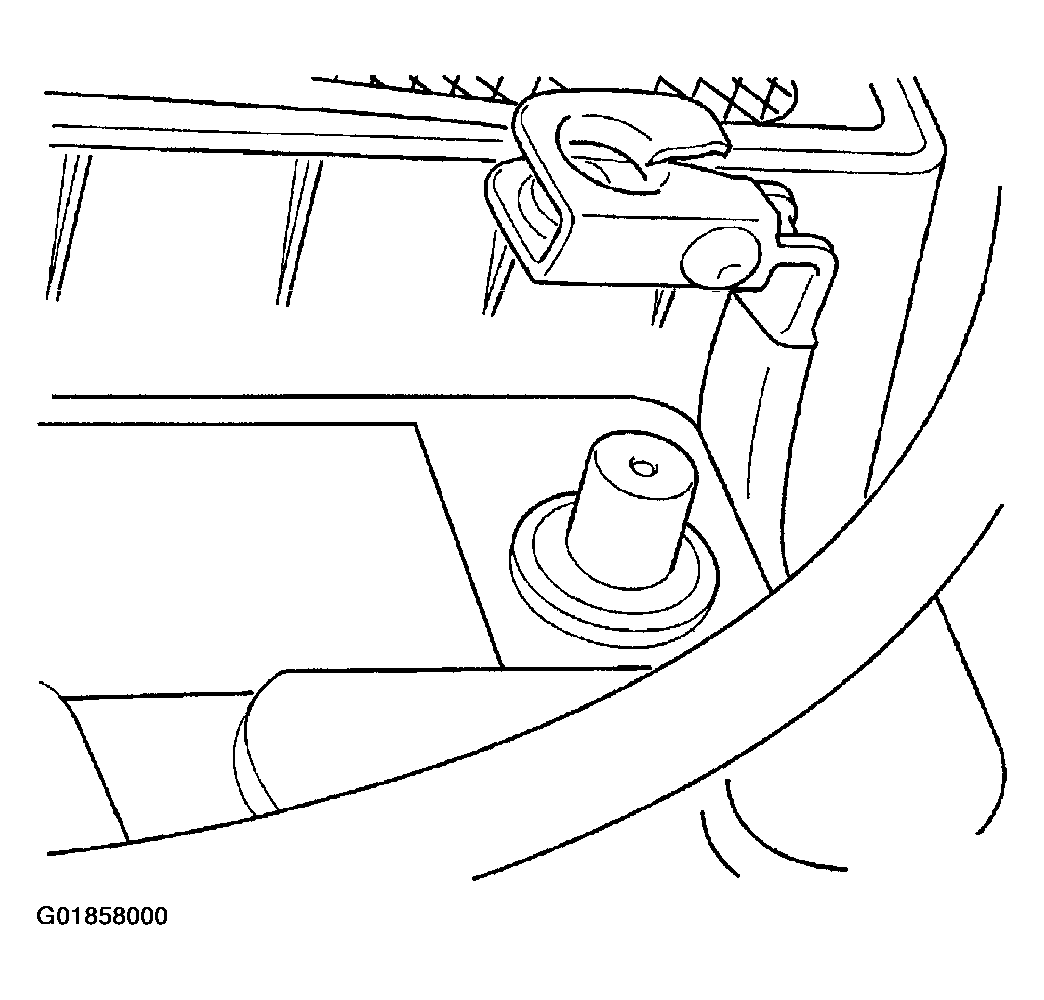

    Fig 1: Removing & Installing Battery Negative Cable
    G01858000Courtesy of DAIMLERCHRYSLER CORP.
  4. Raise vehicle on hoist.
  5. Remove Engine Structural Collar. Refer to appropriate ENGINE MECHANICAL article.
  6. Disconnect starter motor wiring.

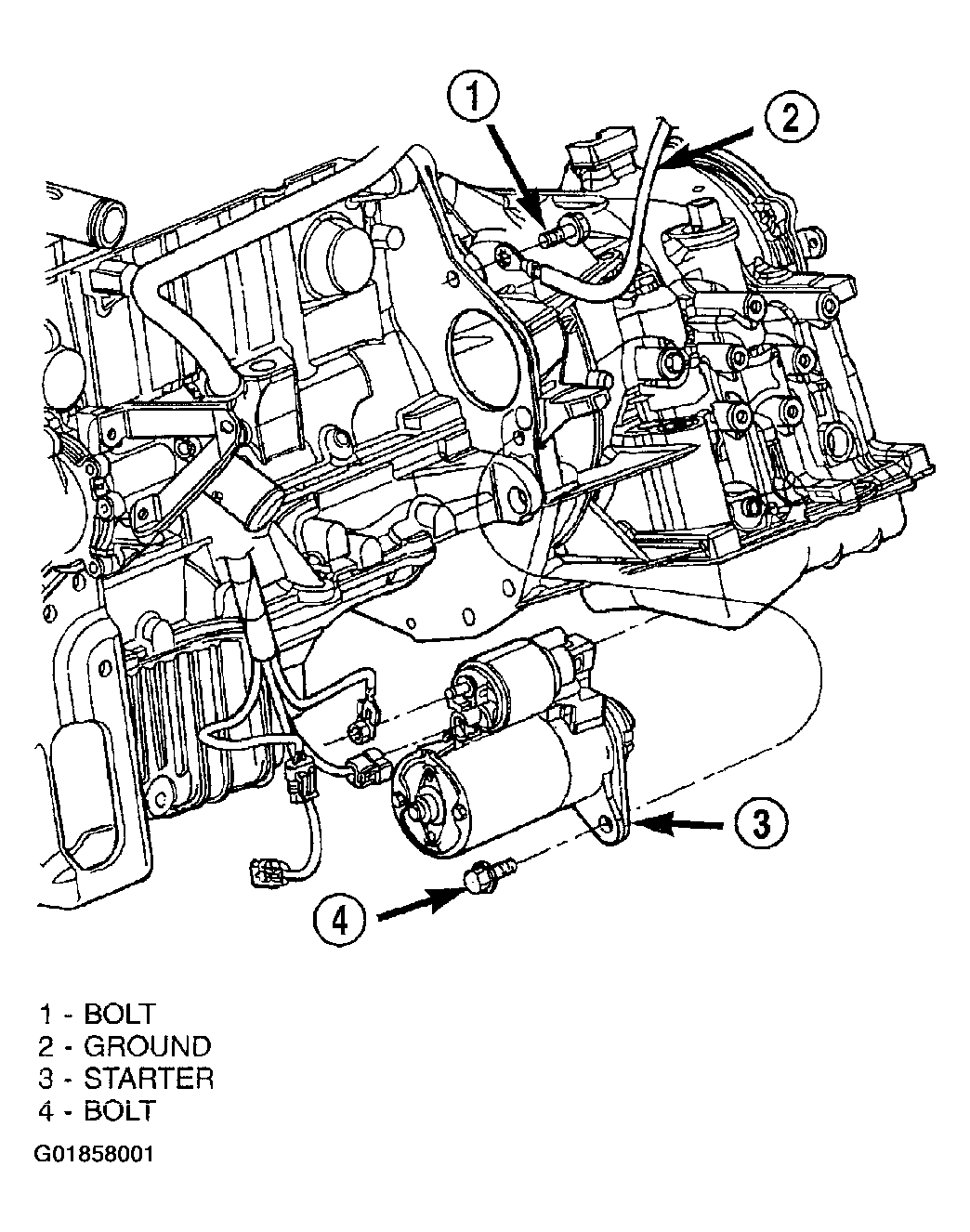

    Fig 2: Removing & Installing Starter
    G01858001Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove starter motor mounting bolts.
  8. Remove starter motor from vehicle.
