2.4L Turbo

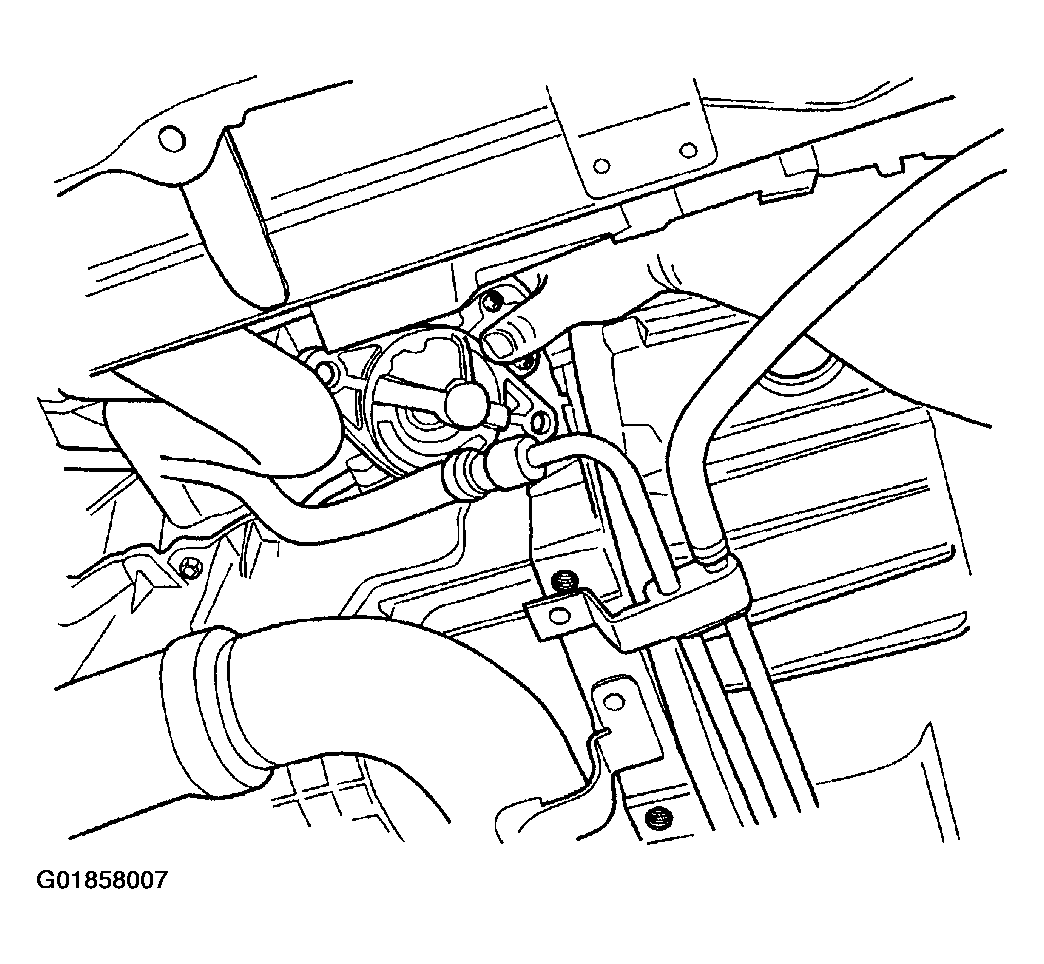

  1. Install starter. See Figure.
  2. Install the lower starter bolt and tighten bolt to 54 N-m (40 ft. lbs.).
  3. Connect the positive battery cable and tighten nut to 10 N-m (90 in. lbs.).
  4. Connect and lock the solenoid electrical connector.

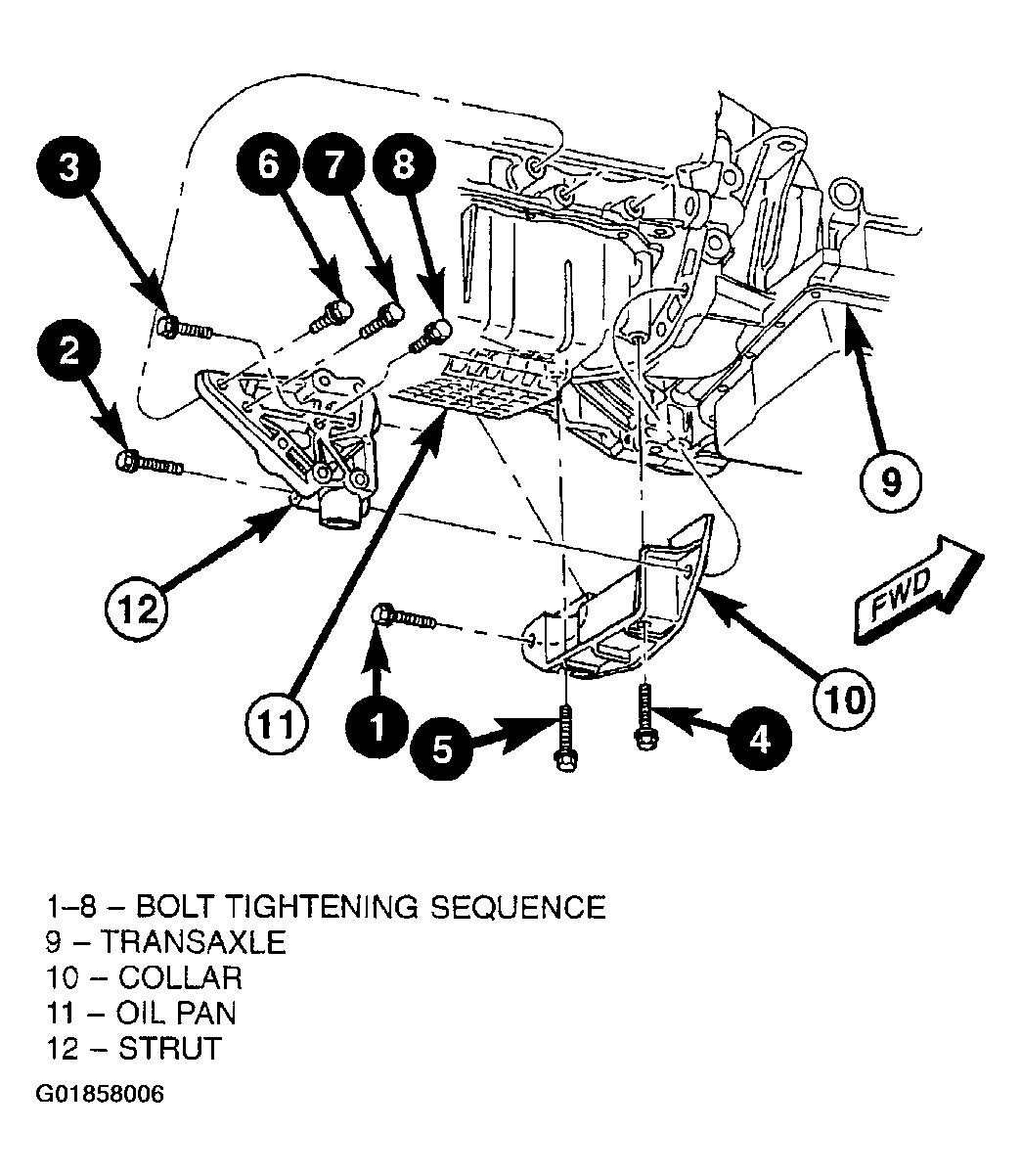

  5. Install the Structural Collar, refer to appropriate ENGINE MECHANICAL article. See Figure.
  6. Locate the power steering lines.
  7. Install the studs that hold the power steering lines and tighten to 61 N-m (45 ft. lbs.).
  8. Tighten nuts that hold the inner cooler lower tube.

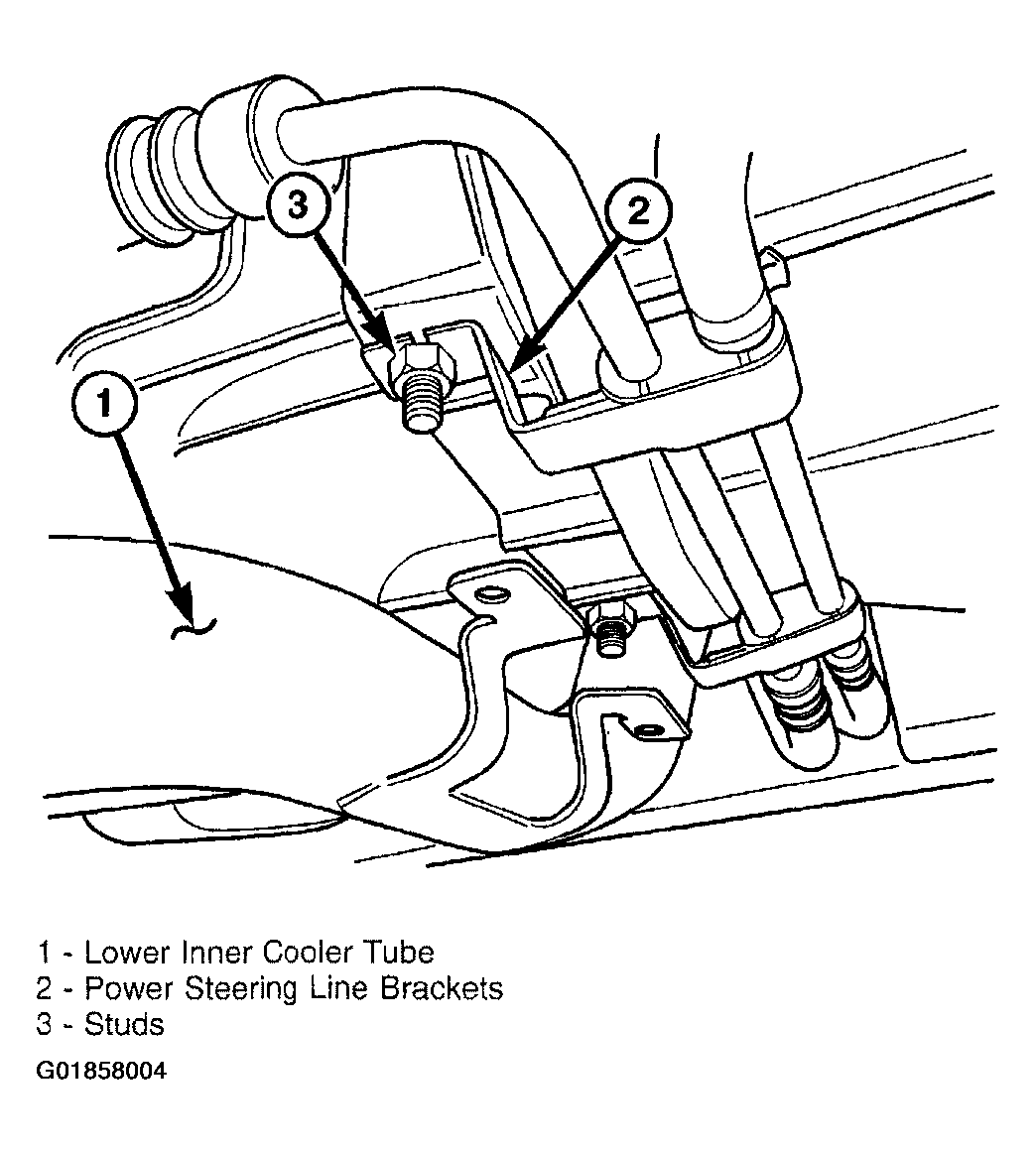

  9. Install the inner cooler lower hose to the inner cooler and tighten clamp. See Figure.
  10. Lower vehicle.
  11. Pushing the inner cooler hose up and out of the way and install the upper starter bolt and ground wire and tighten bolt to 54 N-m (40 ft. lbs.).
  12. Install the air cleaner box.
  13. Tighten air cleaner hose clamp
  14. Connect the negative battery cable.
