Right Rear Power Window Switch Connector End View

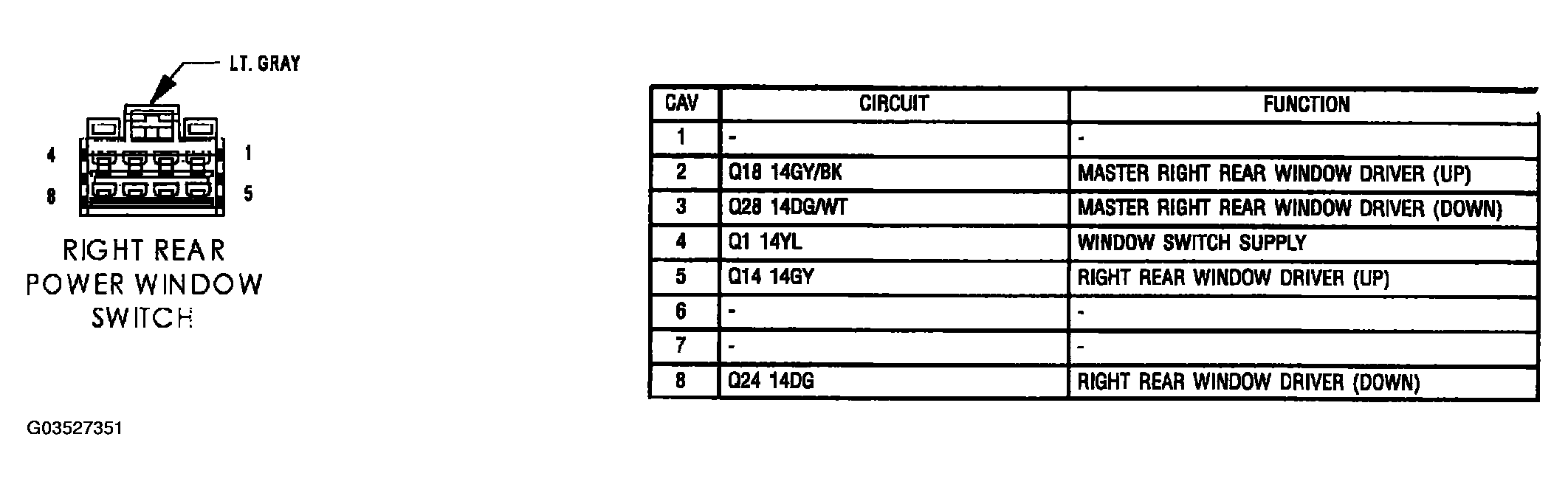

Fig 1: Right Rear Power Window Switch Connector End View

G03527351

Courtesy of DAIMLERCHRYSLER CORP.
